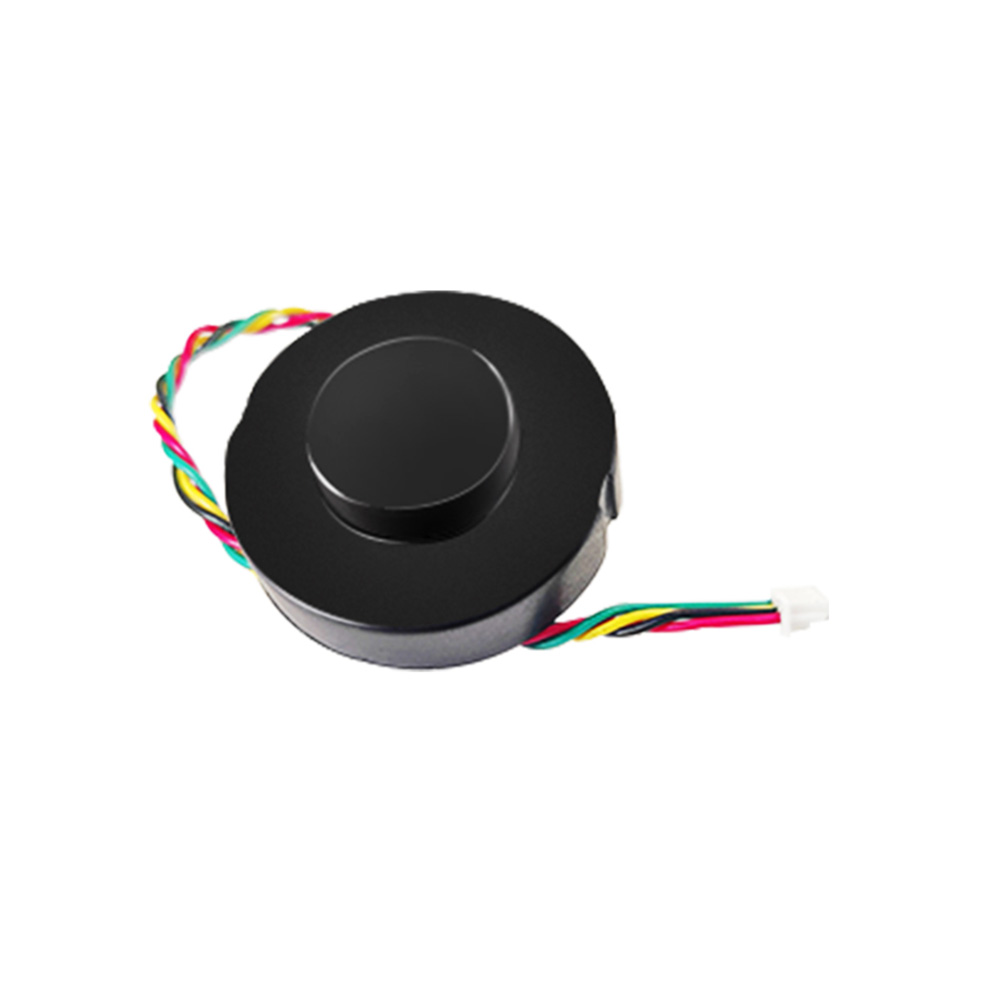

DYP-L062MCW-V1.0 IIC Ultrasonic Liquefied Gas Level Sensor (Measuring Range 30~1000mm)

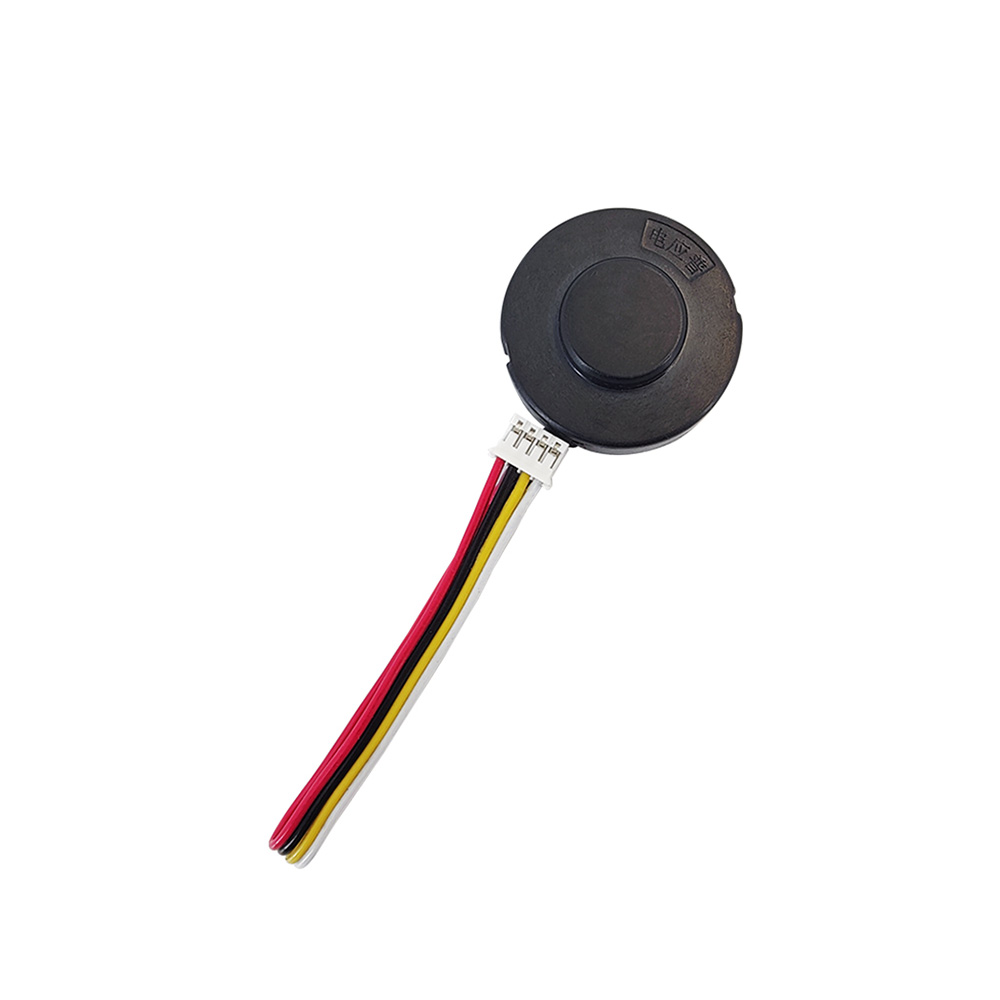

DYP-L062MCW-V1.0 IIC Ultrasonic Liquefied Gas Level Sensor (Measuring Range 30~1000mm) - Image 2

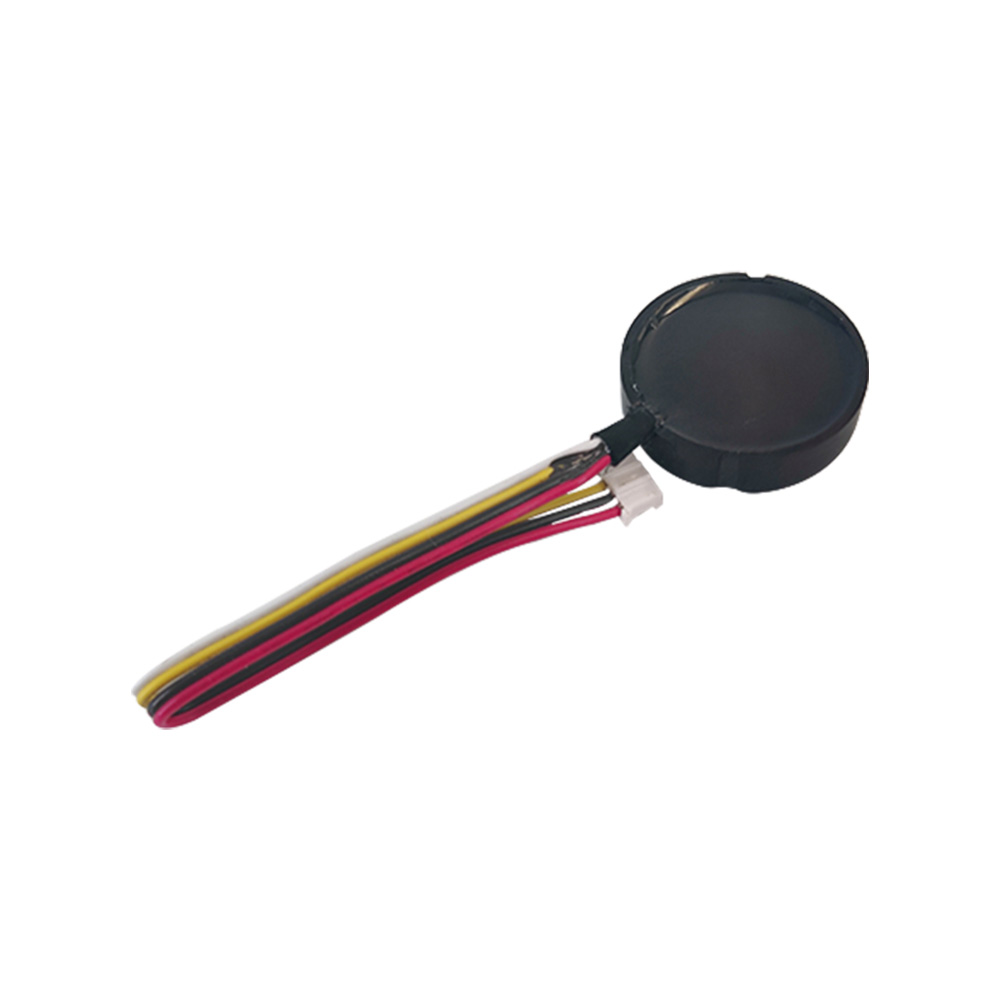

DYP-L062MCW-V1.0 IIC Ultrasonic Liquefied Gas Level Sensor (Measuring Range 30~1000mm) - Image 3
SKU: SENS-4058
📋 GST Invoice Available

DYP-L062MCW-V1.0 IIC Ultrasonic Liquefied Gas Level Sensor (Measuring Range 30~1000mm)

₹2,179.00 (Inclusive of all taxes)
Out of Stock

The DYP-L062MCW-V1.0 is an ultrasonic liquid level sensor designed for non-contact measurement of liquefied gases within a 30mm to 1000mm range. Operating on a 3.3V to 5V DC supply, it features multiple output interfaces including I2C, UART, and RS485 for seamless integration with microcontrollers, PLCs, and IoT platforms.

Features

  • Non-contact ultrasonic measurement for liquefied gases (3–100 cm range)
  • Multi-interface support: I2C, UART (automatic/controlled), and RS485 output
  • High industrial durability with IP67 dustproof and waterproof rating
  • Ultra-low sleep current (<15 µA) for battery-powered IoT applications
  • Integrated horizontal inclination detection (0–180°) and electrostatic protection

Out of stock

Description

The DYP-L062MCW-V1.0 sensor employs high-frequency ultrasonic pulses to perform precise, non-contact level measurement of liquefied gases such as LPG. Its design eliminates the risk of contamination or chemical reaction with the measured medium, ensuring long-term reliability and safety in storage tank monitoring.

Engineered for industrial IoT environments, the module includes robust signal conditioning and supports multiple communication protocols for flexible data acquisition. Its IP67-rated housing and extended operating temperature range (-15°C to +60°C) make it suitable for deployment in challenging outdoor or industrial settings where dust, moisture, and temperature fluctuations are present.

Key Features

  • High-precision ultrasonic measurement with 1 mm resolution and ±(5 + S*1%) mm accuracy
  • Wide 3.3V to 5V operating voltage range compatible with most microcontroller logic levels
  • Ultra-low power consumption with UART-controlled sleep mode under 15 µA
  • Industrial-grade IP67 protection against dust and temporary water immersion
  • Integrated electrostatic protection on all I/O lines per IEC61000-4-2 standard
  • Built-in tilt sensor for horizontal inclination monitoring (0–180° range)
  • Supports multiple UART baud rates from 4800 to 115200 for flexible system integration
  • 3 cm standard blind zone for reliable measurement near the sensor face

Applications

  • Remote level monitoring of LPG (liquefied petroleum gas) storage tanks via NB-IoT or LoRaWAN networks
  • Industrial process control and inventory management for chemical liquid storage vessels
  • Safety systems for detecting overfill or low-level conditions in pressurized gas containers
  • IoT-based smart energy monitoring for residential and commercial propane tank usage
  • Environmental monitoring stations for tracking liquid gas levels in hazardous material storage

Technical Specifications

Manufacturer Part NumberDYP-L062MCW-V1.0
Measurement Range3 cm to 100 cm (30 mm to 1000 mm)
Operating Voltage3.3 VDC to 5 VDC
Operating Current≤ 20 mA
Sleep Current (UART Controlled)< 15 µA
Measurement Resolution1 mm
Measurement Accuracy±(5 + S*1%) mm (where S is measured value)
Blind Zone3 cm
Output InterfacesI2C, UART (Automatic/Controlled), RS485
Default Baud Rate115200
Supported Baud Rates4800, 9600, 14400, 19200, 38400, 57600, 76800, 115200
Inclination Detection Range0° to 180°
Operating Temperature-15°C to +60°C
Storage Temperature-25°C to +70°C
Ingress Protection (IP) RatingIP67
Electrostatic ProtectionIEC61000-4-2 compliant

Frequently Asked Questions

What is the operating voltage range for the DYP-L062MCW-V1.0 sensor?

The sensor operates from a 3.3V to 5V DC power supply, making it directly compatible with common microcontroller platforms like Arduino, ESP32, and Raspberry Pi (using a logic level converter if needed). The wide voltage range ensures stable performance in both 3.3V and 5V logic systems.

Which communication interfaces does this ultrasonic level sensor support?

It supports multiple digital interfaces for flexible integration: I2C for simple two-wire connection, UART (in both automatic output and controlled command modes), and RS485 for long-distance, noise-immune communication in industrial networks. The default UART baud rate is 115200, but it is configurable.

Is this sensor suitable for outdoor or harsh industrial environments?

Yes, the sensor features an IP67-rated enclosure, providing protection against dust ingress and temporary immersion in water up to 1 meter. Its operating temperature range of -15°C to +60°C and built-in electrostatic protection (IEC61000-4-2) make it robust for outdoor tank monitoring and industrial IoT applications.

How does the sensor handle power consumption for battery-operated systems?

For low-power applications, the sensor offers a UART-controlled sleep mode where its current consumption drops to less than 15 microamperes (µA). This allows for significant battery life extension in remote, wireless monitoring setups when measurements are taken at intervals.

Package Includes

  • 1 x DYP-L062MCW-V1.0 IIC Ultrasonic Liquefied Gas Level Sensor

Additional Information

Weight 0.017 kg
Dimensions 10 × 7 × 3 cm
