DYP-DS1603L V1.0 UART Ultrasonic Sensor Module - RS485 Output, 50-2000mm Range
The DYP-DS1603L V1.0 is a UART-based ultrasonic distance sensor module offering a 50–2000mm measurement range with RS485 output. It integrates a waterproof transducer and is compatible with industrial PLCs, Raspberry Pi, and Arduino via RS485-to-UART converters for reliable level and proximity sensing.
Features
- Integrated waterproof ultrasonic transducer for reliable operation in damp or dusty environments.
- Wide 5.0V to 12.0V DC operating voltage range with low average current consumption (<10mA).
- RS485 Modbus output interface ensures stable, long-distance communication up to 1200 meters.
- Features internal temperature compensation for consistent accuracy across an operating range of -15°C to +60°C.
- Compact, horn-equipped design with a blind zone under 28cm and a practical measurement span of 28–250cm.
Out of stock

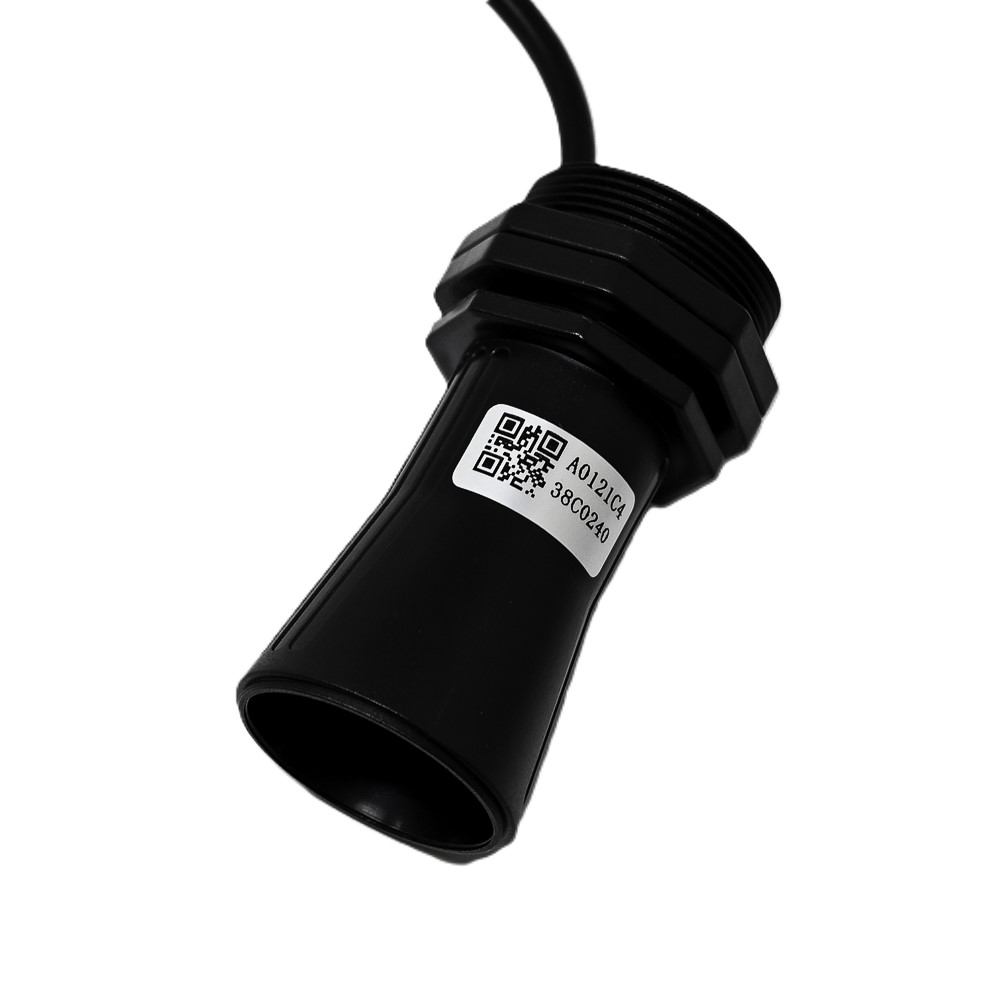

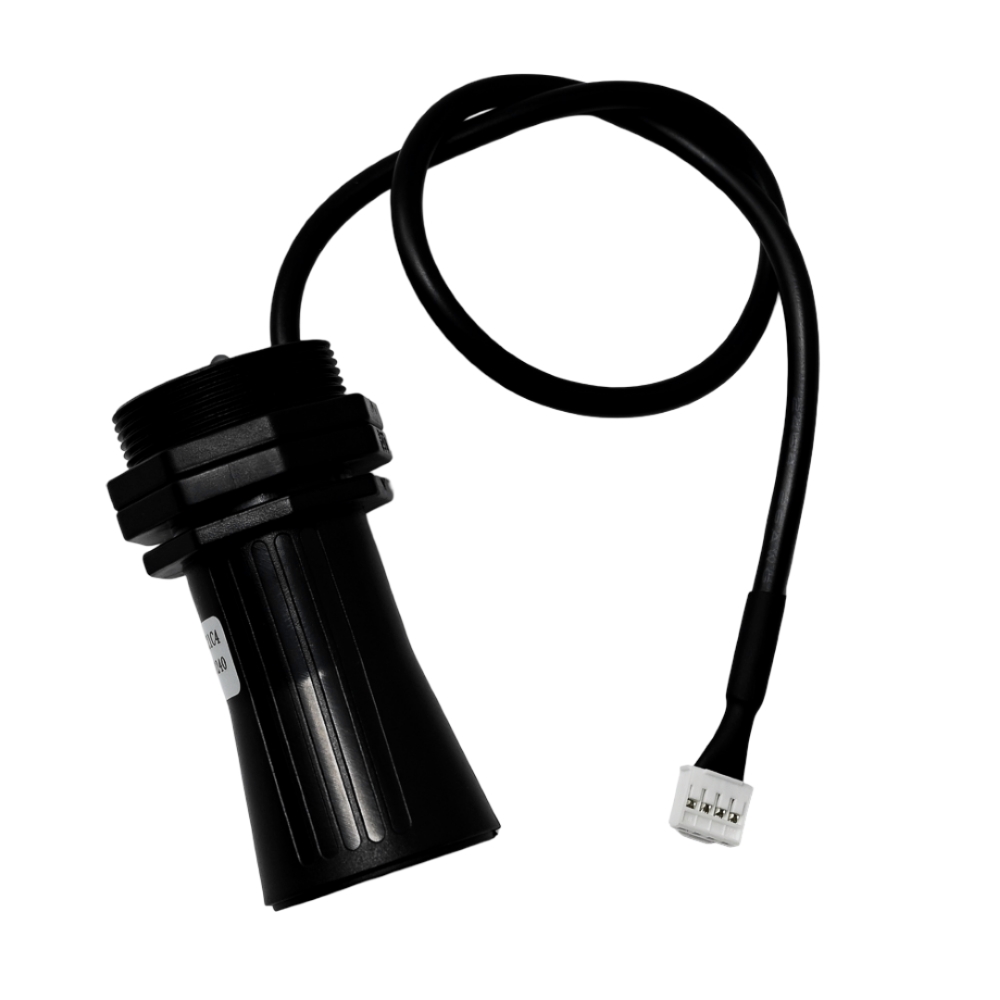

The DYP-DS1603L V1.0 ultrasonic sensor module employs time-of-flight (ToF) measurement principles to accurately determine distance. It transmits an ultrasonic pulse and calculates the interval until the echo is received, providing precise range data. The integrated waterproof probe and dedicated horn enhance signal directionality and environmental resilience, making it suitable for both indoor and outdoor installations.
This module is engineered for system integration, featuring an RS485 interface that supports the Modbus RTU protocol for robust, noise-immune communication in industrial networks. Its built-in temperature compensation circuit automatically adjusts for ambient thermal variations, ensuring measurement stability from -15°C to +60°C. The combination of low power consumption and a wide supply voltage makes it ideal for battery-powered or solar-powered monitoring systems.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 14 × 9 × 5 cm |
