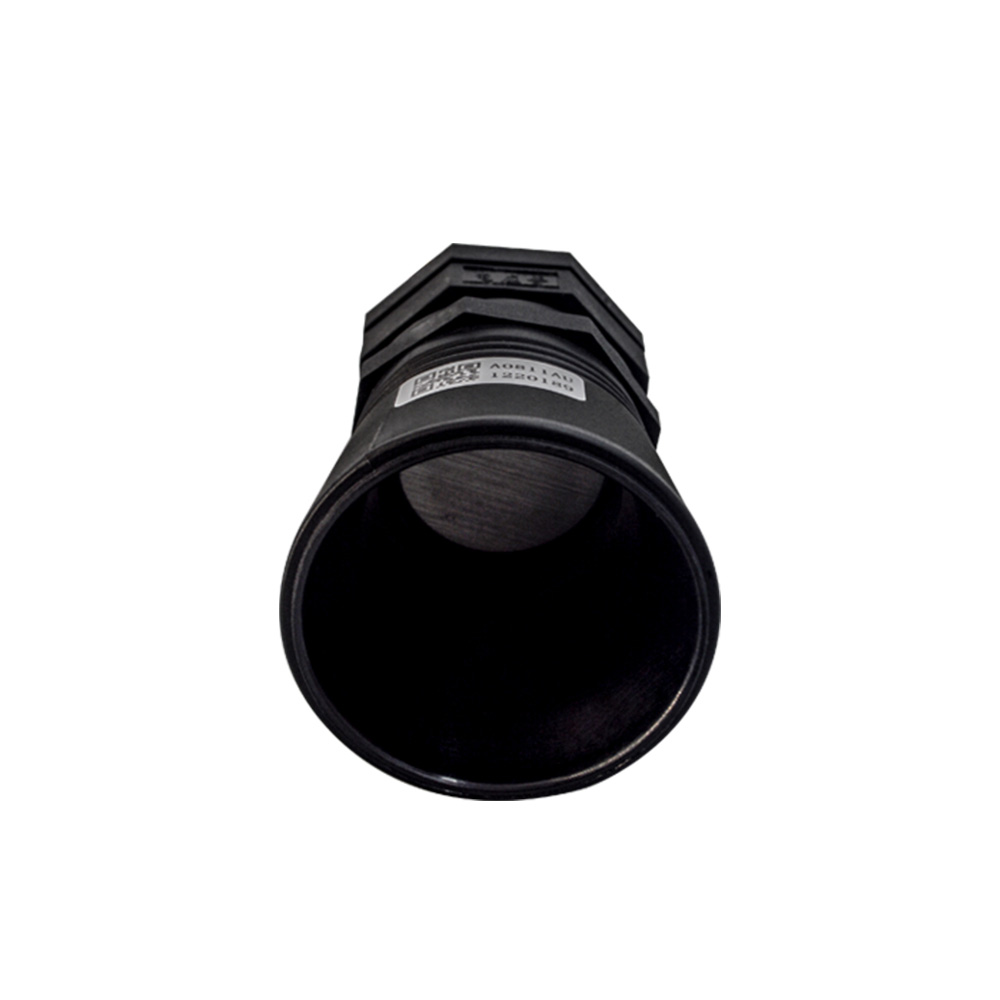

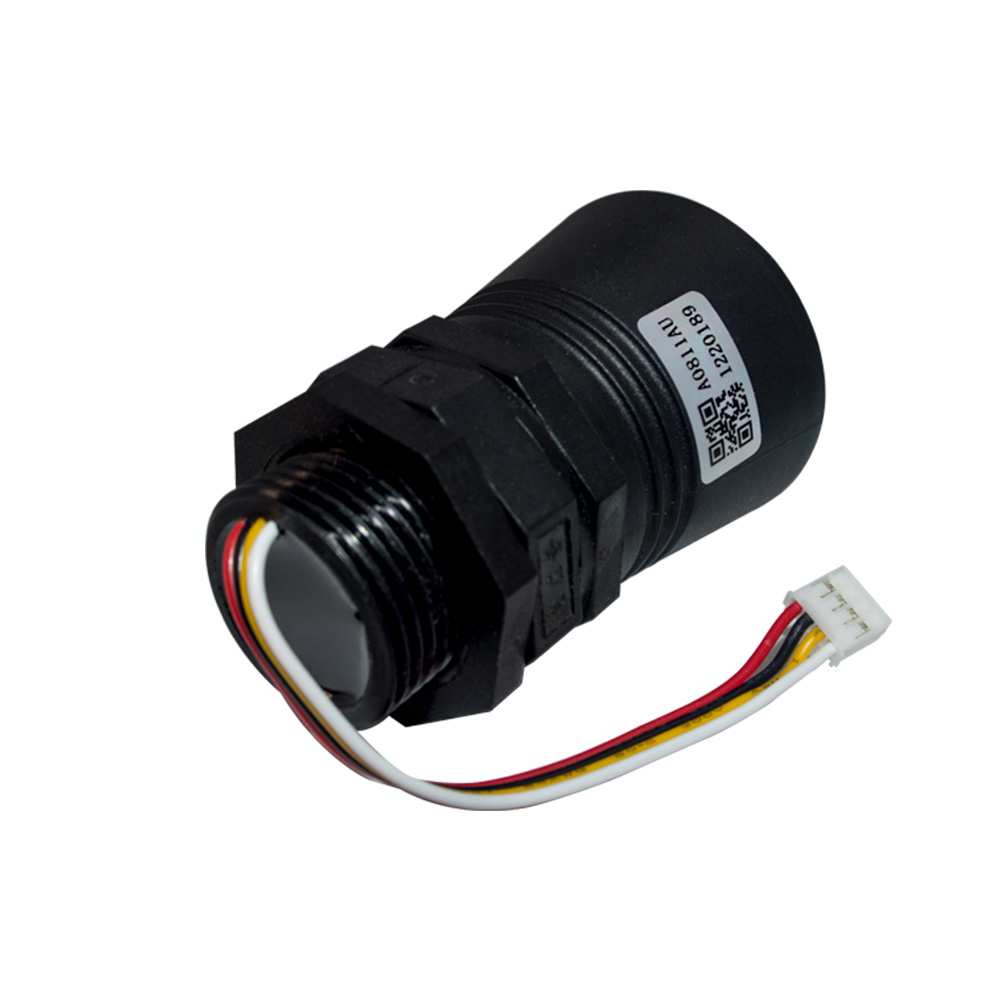

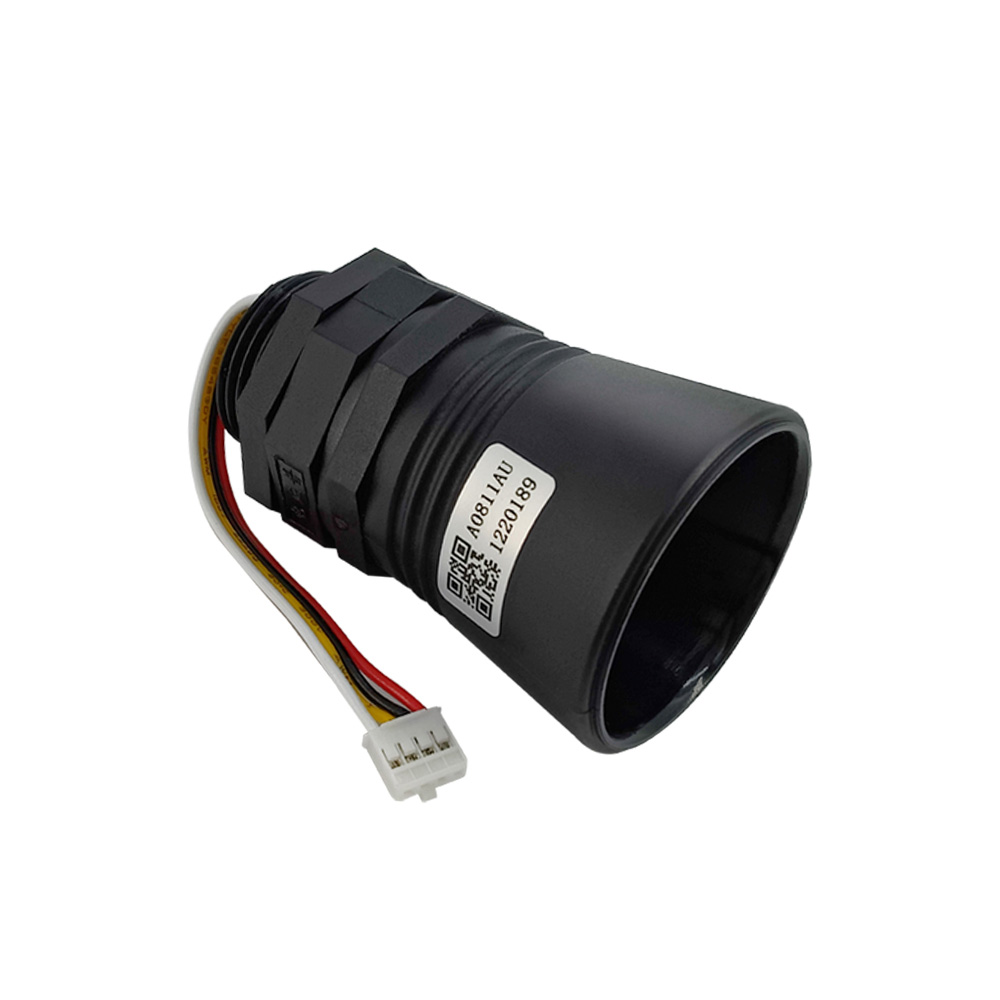

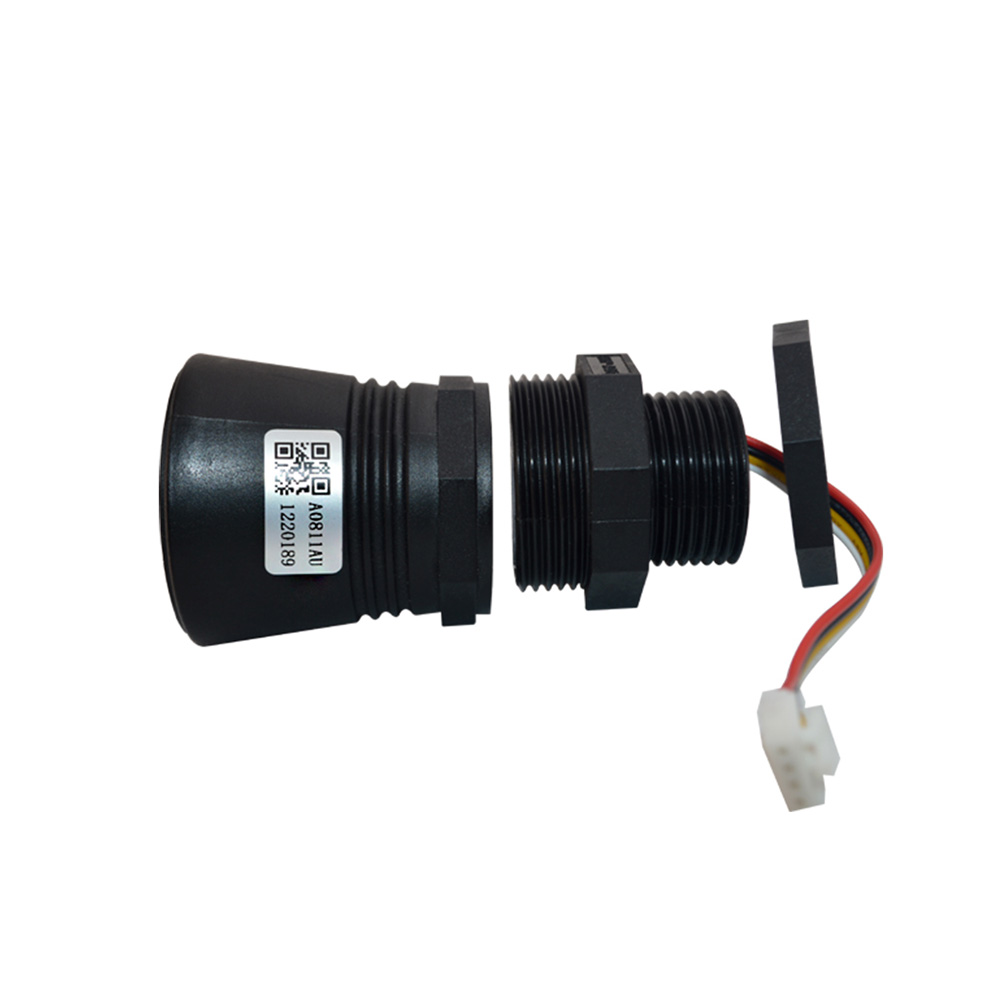

DYP A08BNYTB-V1.0 Ultrasonic Level Sensor - UART Controlled, Waterproof, 25-500cm Range
The DYP-A08BNYTB-V1.0 is a UART-controlled, waterproof ultrasonic level sensor designed for precise distance measurement from 25 cm to 500 cm. Operating on 3.3V to 5V DC, it is compatible with microcontrollers like Arduino, Raspberry Pi, and ESP32, offering flexible output modes for integration into automation and monitoring systems.
Features
- UART-controlled ultrasonic sensor with a stable measurement range of 25 cm to 500 cm.
- Operates on a low 3.3V to 5V DC supply with ultra-low static current (<5 µA).
- Features four configurable output modes: PWM, UART automatic, UART controlled, and switch output.
- Waterproof construction suitable for outdoor and industrial level sensing applications.
- Integrated high-precision algorithm ensures stable data with an accuracy of ±(1+S×0.3%).
Out of stock
The DYP A08B series ultrasonic sensor utilizes high-frequency sound waves to accurately measure distance to a target. The module’s intelligent signal processing circuitry minimizes the blind zone to ≤25 cm and provides a narrow beam angle of approximately 20°, reducing interference from surrounding objects. It is engineered for reliable performance in varied environmental conditions.
This specific V1.0 model is configured for UART-controlled operation, allowing the host system to command measurement cycles for optimized power management and data acquisition timing. The sensor can output either real-time raw data for high-speed applications or algorithmically processed values for enhanced stability, depending on the state of the control pin.
Additional Information
| Weight | 0.054 kg |
|---|---|
| Dimensions | 13 × 9 × 6 cm |
