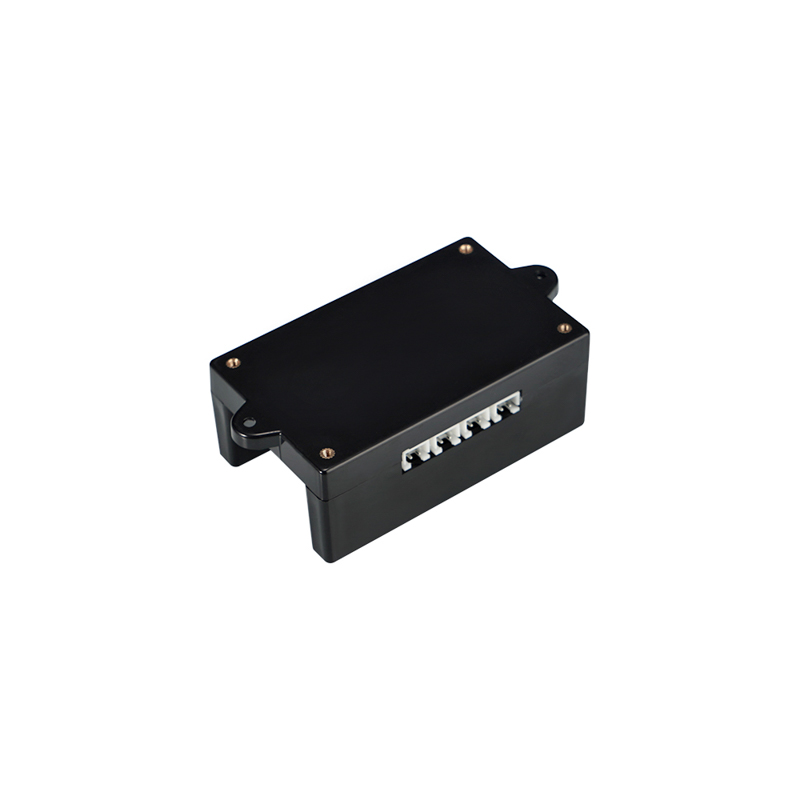

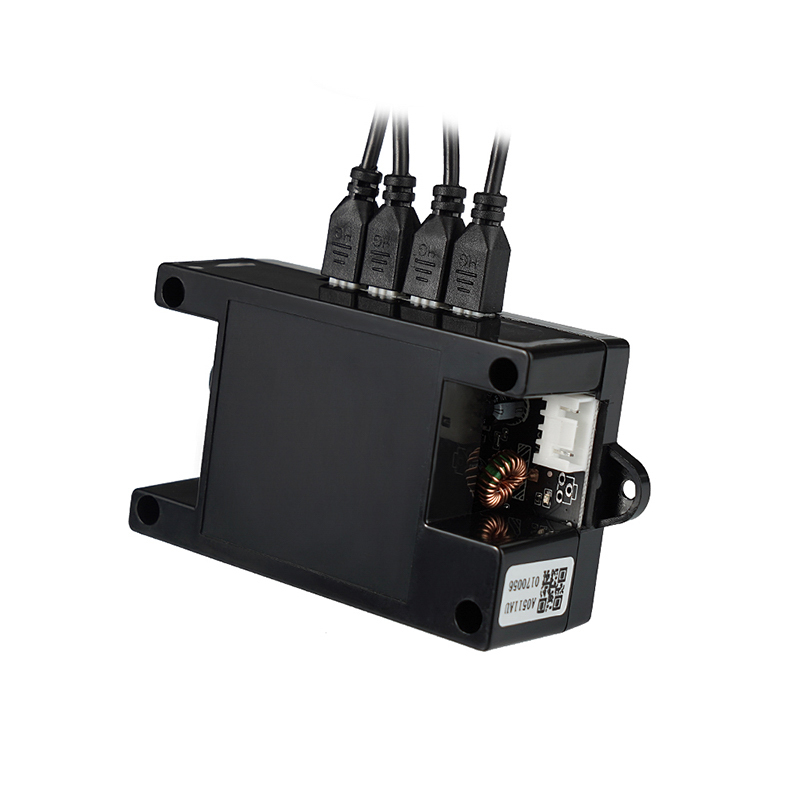

DYP-A05LYU-V1.1 Ultrasonic Sensor Module - UART Output, 25-450cm Range, 9-36V DC
The DYP-A05LYU-V1.1 is a UART-output ultrasonic distance sensor module designed for industrial and robotics applications. Operating from 9-36V DC, it provides reliable object detection from 25cm to 450cm, making it compatible with PLCs, Raspberry Pi, and microcontroller systems requiring serial communication.
Features

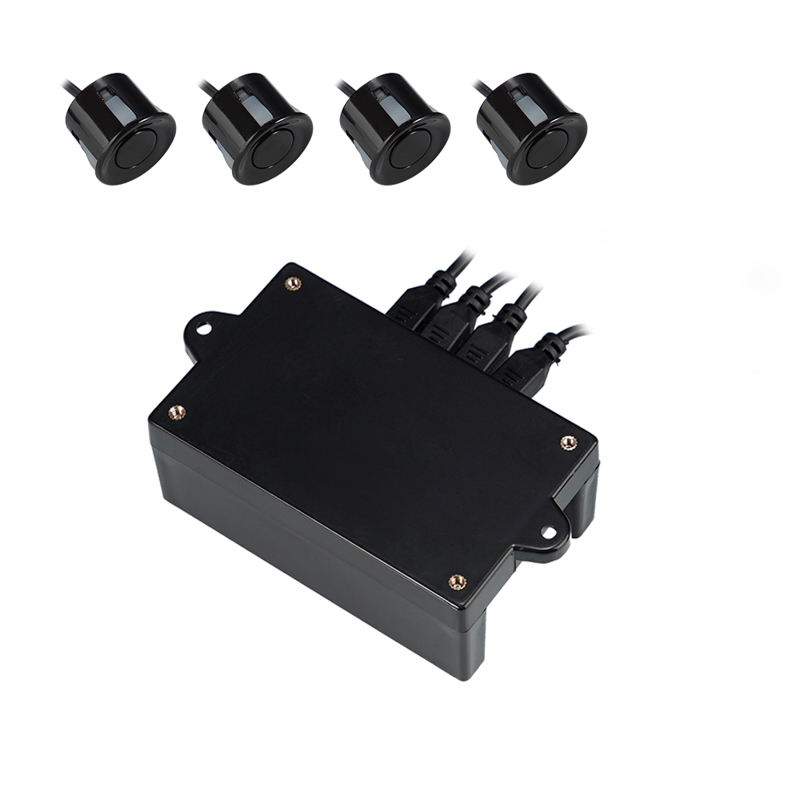

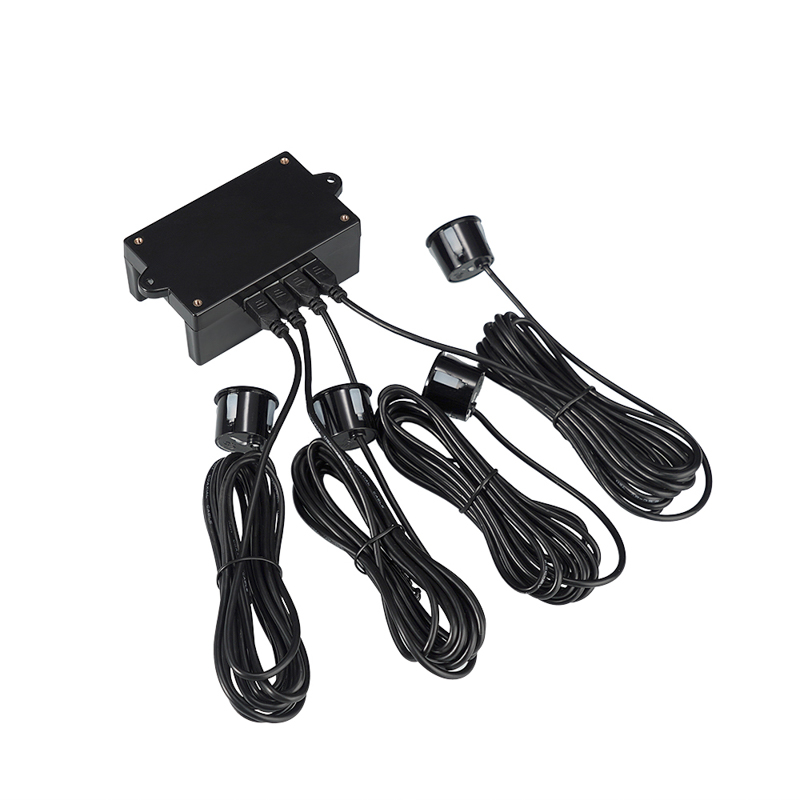

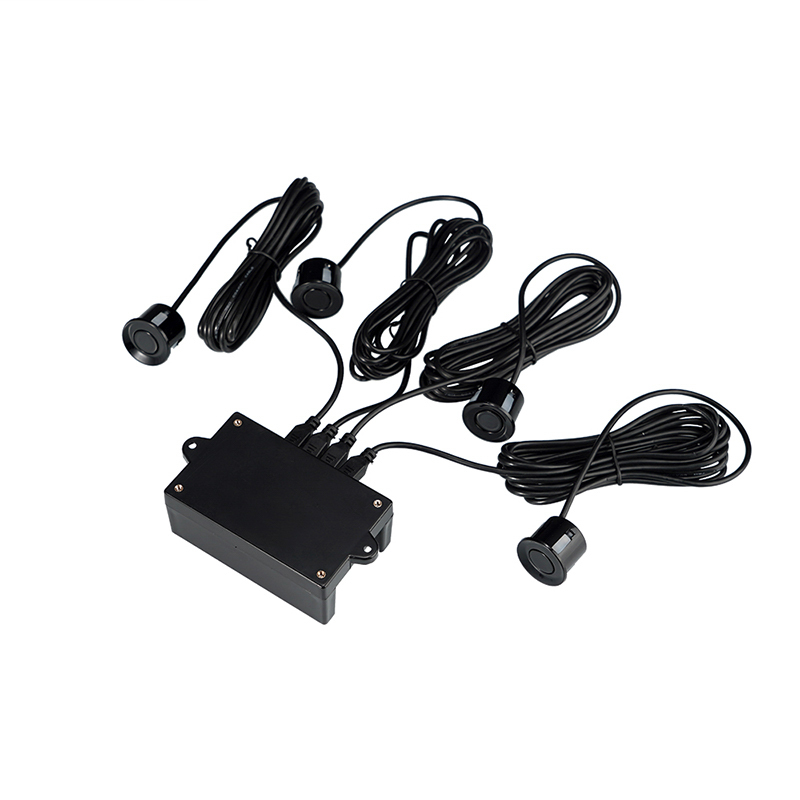

- Four-direction integrated waterproof probe design for harsh environments.
- Wide operating voltage range of 9-36V DC with low average current consumption (<25mA).
- UART (TTL) serial output for easy integration with microcontrollers and industrial controllers.
- Commercial-grade reliability with anti-static design per IEC61000-4-2 standard.
- Extended operating temperature range from -25°C to +80°C for storage.
Out of stock
The DYP-A05LYU-V1.1 ultrasonic sensor module utilizes a time-of-flight (ToF) principle to accurately measure distances to objects within a 25cm to 450cm range. Its enclosed, integrated probe design provides a degree of dust and water resistance, making it suitable for wet or challenging industrial measurement scenarios where reliability is critical.
Featuring a UART (TTL-level) serial interface, the module outputs direct digital distance readings, simplifying integration into automated control systems, robotics, and parking guidance systems. The module’s robust electrical design, including protection against electrostatic discharge (ESD), ensures stable performance in electrically noisy environments.
Additional Information
| Weight | 0.25 kg |
|---|---|
| Dimensions | 20 × 13 × 5 cm |
