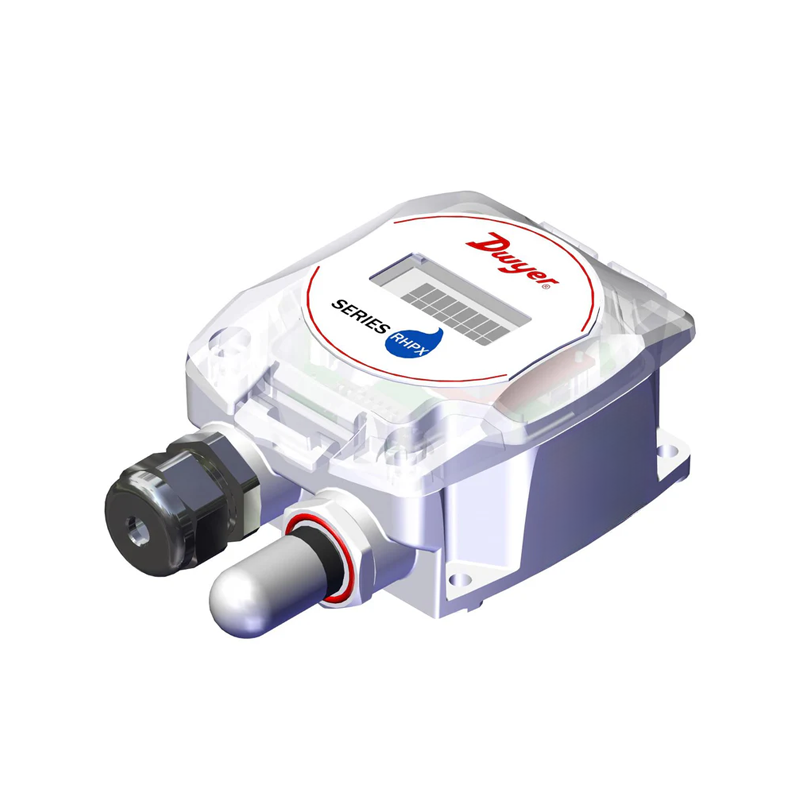

Dwyer Instruments RHPX-2SSA0-00 Humidity & Temperature Transmitter, Wall Mount, IP66, Filter Cover
The Dwyer Instruments RHPX-2SSA0-00 is a compact wall-mount transmitter for precise monitoring of relative humidity (0-100% RH) and temperature (-40°C to 60°C). It features field-selectable analog outputs (4-20mA, 0-5V, 0-10V) for seamless integration with HVAC, BMS, and industrial PLC control systems.
Features
- High-accuracy capacitive polymer sensor with ±2% RH precision.
- Field-selectable analog output: 4-20mA, 0-5V, or 0-10V.
- Robust IP66-rated enclosure with UV-rated UL 94 V-0 plastic.
- Wide operating temperature range from -40°C to 60°C.
- Easy installation with wall-mount bracket and removable terminal block.
Out of stock
The Dwyer Instruments RHPX-2SSA0-00 Humidity and Temperature Transmitter employs a stable capacitive polymer sensing element for reliable, long-term environmental monitoring. Its integrated signal conditioning circuit provides a linearized analog output proportional to the measured parameters, ensuring compatibility with standard data acquisition and control systems.
Designed for durability in demanding environments, the unit features an IP66-rated enclosure that protects against dust ingress and powerful water jets. The integrated filter cover safeguards the sensor while allowing for proper airflow, and the UV-resistant housing material prevents degradation from prolonged sun exposure, making it suitable for both indoor and outdoor installations.
Additional Information
| Weight | 0.17 kg |
|---|---|
| Dimensions | 12.748 × 6.604 cm |
