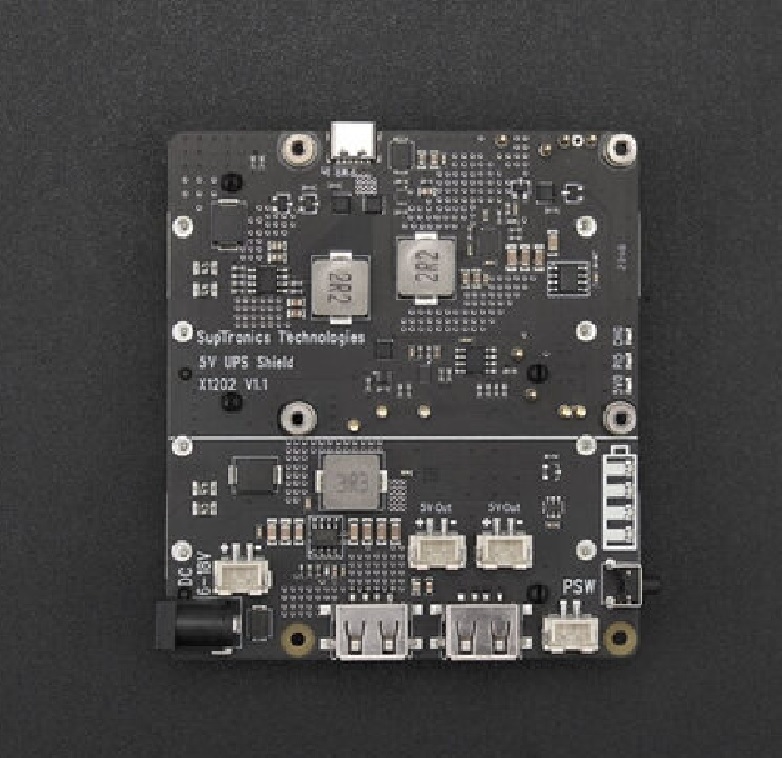

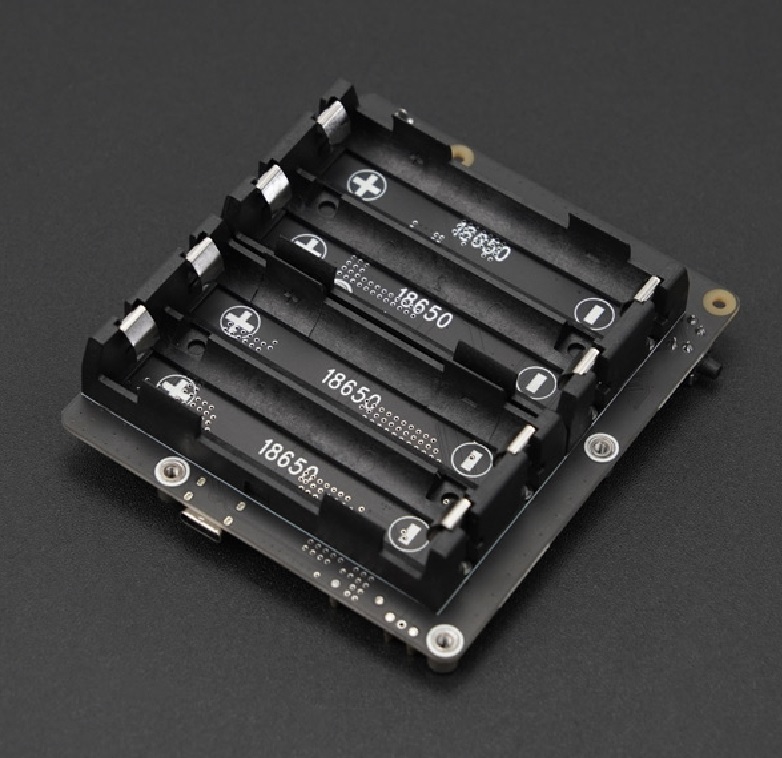

DFRobot Raspberry Pi 5 18650 Battery UPS HAT (5.1V 5A)
DFRobot Raspberry Pi 5 18650 Battery UPS HAT (5.1V 5A) - Image 2
SKU: SENS-2974
📋 GST Invoice Available

DFRobot Raspberry Pi 5 18650 Battery UPS HAT (5.1V 5A)

₹6,719.00 (Inclusive of all taxes)
Out of Stock

The DFRobot Raspberry Pi 5 UPS HAT is an uninterruptible power supply board delivering a stable 5.1V/5A output via pogo-pin connection. It features intelligent power-path management, I2C battery monitoring, and fast charging for dual 18650 cells, ensuring reliable backup power for mobile and critical Raspberry Pi 5 applications.

Features

  • Dual 18650 Battery UPS HAT for Raspberry Pi 5 with pogo-pin power delivery
  • Stable 5.1V/5A output with seamless switching between adapter and battery power
  • Integrated fuel gauge for I2C battery voltage and percentage monitoring
  • Fast charging up to 3A with programmable low-voltage auto-shutdown
  • Wide 6-18V DC input range and ultra-low standby power consumption

Out of stock

Description

This UPS HAT provides a dedicated uninterruptible power supply solution for the Raspberry Pi 5, integrating advanced power-path management to minimize battery cycling and extend cell lifespan. It connects directly to the Pi’s power rails via pogo pins, eliminating cable clutter and supporting concurrent use of other HATs.

The board features a high-efficiency step-down DC-DC converter and intelligent monitoring that detects AC power loss or adapter failure, triggering an automatic switch to battery backup. System parameters, including battery percentage and programmable shutdown voltage, are accessible via the I2C interface for integration into automated power management scripts.

Key Features

  • Dedicated UPS expansion board for Raspberry Pi 5 with direct pogo-pin connection
  • Advanced power-path management for seamless AC-to-battery switching and extended battery life
  • High-current 5.1V/5A output capable of powering the Pi 5 and connected peripherals
  • Integrated fuel gauge system for real-time battery voltage and state-of-charge monitoring via I2C
  • Fast charging support up to 3A for dual 18650 cells with overcurrent/overvoltage protection
  • Wide-range 6-18V DC input via 5.5x2.1mm jack, compatible with various power adapters
  • Programmable low-voltage auto-shutdown and AC loss detection via GPIO
  • Ultra-low standby consumption and onboard status LEDs for power and charge indication

Applications

  • Mobile power supply for Raspberry Pi 5 in robotics, drones, or portable data loggers
  • Uninterruptible backup power for critical Pi 5 deployments in outdoor monitoring stations
  • Battery-powered edge computing nodes requiring clean shutdowns during power loss
  • Development platforms for testing power management and battery fuel gauge algorithms

Technical Specifications

CompatibilityRaspberry Pi 5
Output Voltage/Current5.1V / 5A Max
DC Input Range6 - 18V
Battery SupportDual 18650 Cells (2S)
Max Charging Current3A
Communication InterfaceI2C (Battery Monitoring)
Power ConnectionPogo Pins
Additional Outputs2x XH2.54 2-pin (5V), 2x USB Type-A
External Button ConnectorXH2.54-2P
Board Width85 mm

Frequently Asked Questions

What is the input voltage range for the DC power jack?

The board accepts a wide input range of 6V to 18V DC via the standard 5.5x2.1mm power jack. This compatibility allows the use of various common laptop-style power adapters or regulated DC supplies to charge the onboard batteries and power the system simultaneously.

How do I monitor the battery status with this UPS HAT?

Battery voltage and state-of-charge percentage are accessible via the I2C communication interface. You can read these values directly from the integrated fuel gauge IC using Python libraries or C code on the Raspberry Pi 5, enabling software-based low-battery alerts and graceful system shutdown routines.

Can I use this HAT with other add-on boards (HATs) on the Raspberry Pi 5?

Yes, the board is designed to attach to the bottom of the Raspberry Pi 5 using its own set of standoffs, leaving the top 40-pin GPIO header fully available. This allows you to stack another standard HAT on top for combined functionality without interference.

What happens during a main power failure?

The board continuously monitors the DC input voltage. Upon detecting a power outage or adapter failure, its power-path management circuitry automatically and seamlessly switches the Raspberry Pi 5's power source from the adapter to the backup 18650 batteries within milliseconds, preventing any system interruption.

Package Includes

  • 1x Raspberry Pi 5 UPS HAT Board
  • 1x Screw Pack

Additional Information

Weight 0.015 kg
Dimensions 8.5 cm
