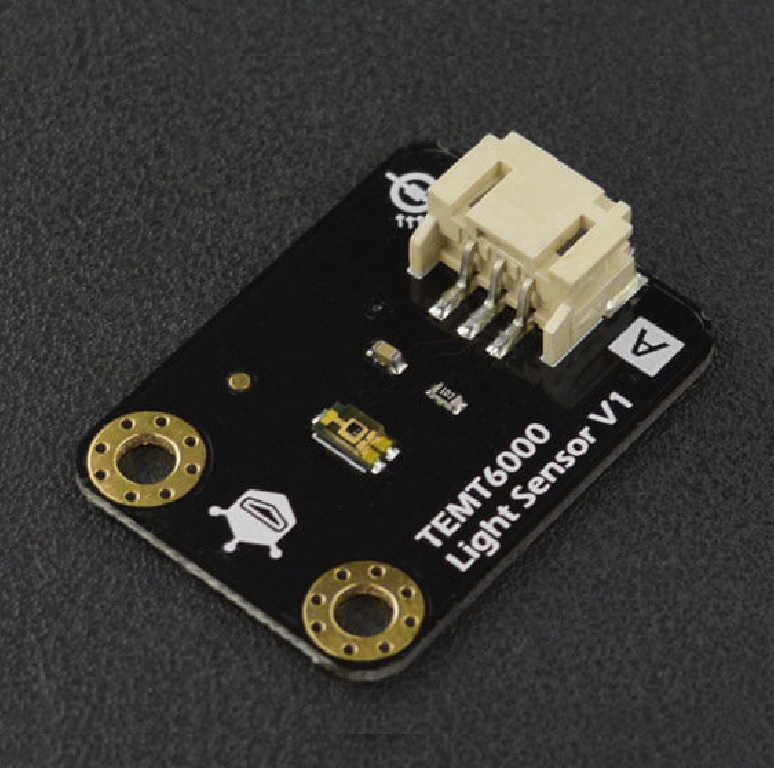

DFRobot Gravity Analog Ambient Light Sensor TEMT6000 - Module Only
The DFRobot Gravity Analog Ambient Light Sensor TEMT6000 is a plug-and-play module designed for Arduino and other 3.3V/5V microcontroller platforms. It provides an analog voltage output proportional to ambient light intensity, with a spectral response closely matching human eye sensitivity.
Features
- Utilizes TEMT6000 phototransistor with near-human-eye spectral response and low IR sensitivity.
- Provides analog voltage output (0-5V @ VCC=5V) for direct connection to microcontroller ADC pins.
- Wide operating voltage range from 3.3V to 5.5V DC for compatibility with various logic levels.
- Measures illumination from 1 to 1000 Lux, suitable for indoor ambient light sensing.

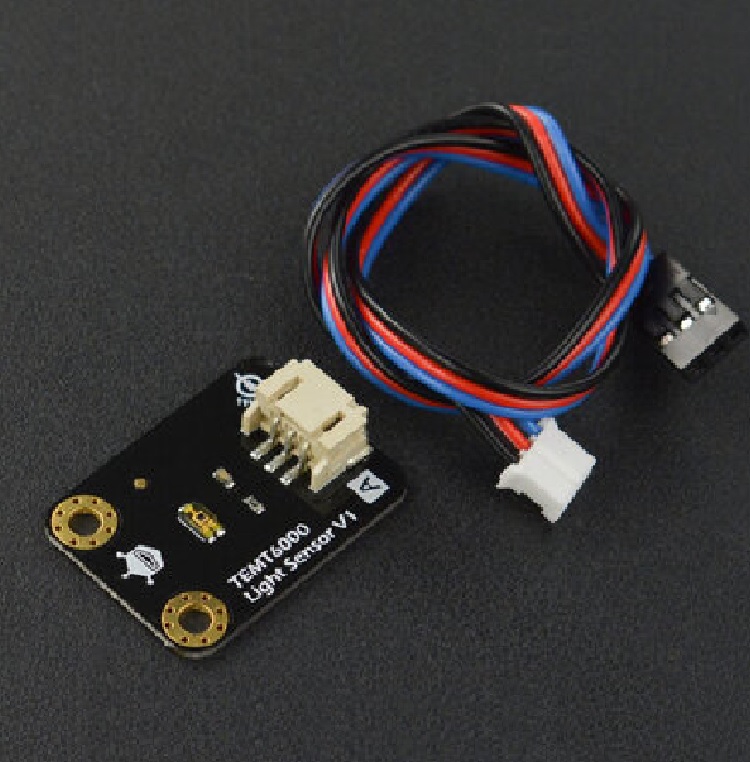

- Features DFRobot’s Gravity 3-pin interface for plug-and-play integration with Arduino shields.
Out of stock
This ambient light sensor module employs a TEMT6000 phototransistor, a component specifically chosen for its spectral sensitivity curve that closely emulates the human eye’s response to visible light while minimizing sensitivity to infrared wavelengths. This makes it ideal for applications requiring accurate perception of ambient brightness as experienced by people, such as in automatic lighting control or display backlight dimming systems.
The module outputs a linear analog voltage signal directly proportional to the incident light intensity. When powered at 5V, the output scales from 0V in darkness to approximately 5V under bright illumination up to 1000 Lux. This signal can be read directly by the analog-to-digital converter (ADC) of an Arduino, Raspberry Pi Pico, ESP32, or other microcontroller. The wide operating temperature range of -40°C to +85°C ensures reliable performance in both indoor and demanding outdoor environments.
Additional Information
| Weight | 0.015 kg |
|---|---|

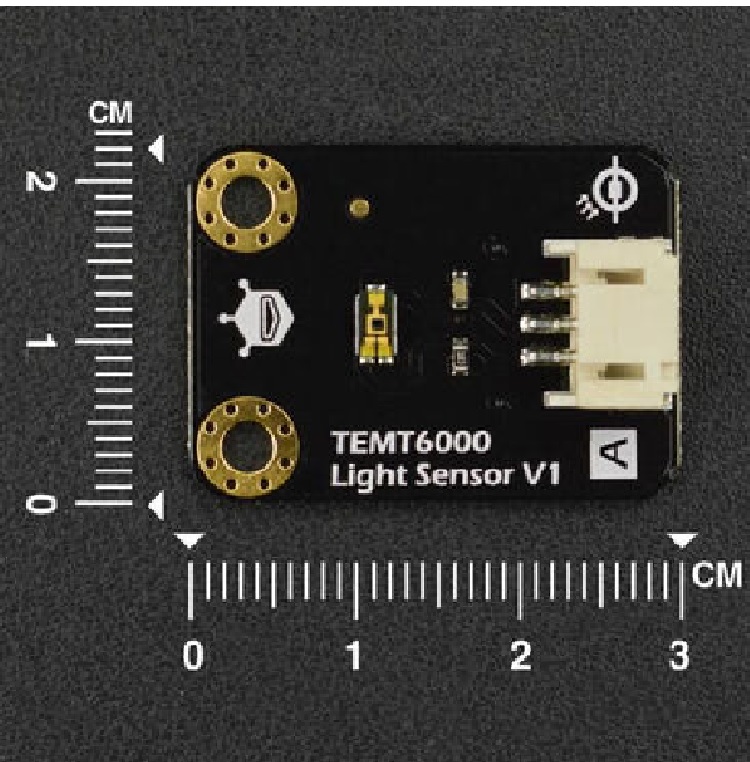

| Dimensions | 3 × 3 × 0.9 cm |
