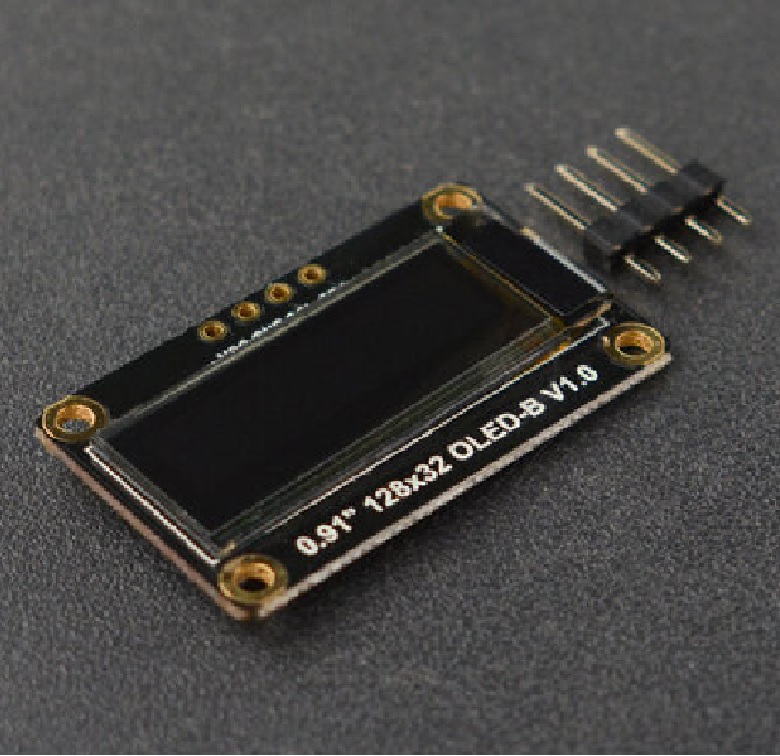

DFRobot Fermion 0.91" 128×32 I2C OLED Display Module
The DFRobot Fermion 0.91″ OLED display module features a 128×32 pixel monochrome screen driven by an SSD1306 controller with I2C interface, offering high contrast and low power consumption for integration with Arduino, ESP32, and other 3.3V/5V microcontrollers.
Features
- 0.91-inch monochrome OLED with 128×32 self-illuminating white pixels.
- SSD1306 driver with I2C communication interface (3.3V/5V logic compatible).
- Ultra-low power consumption: ~25mA full-screen on, ~2mA full-screen off.

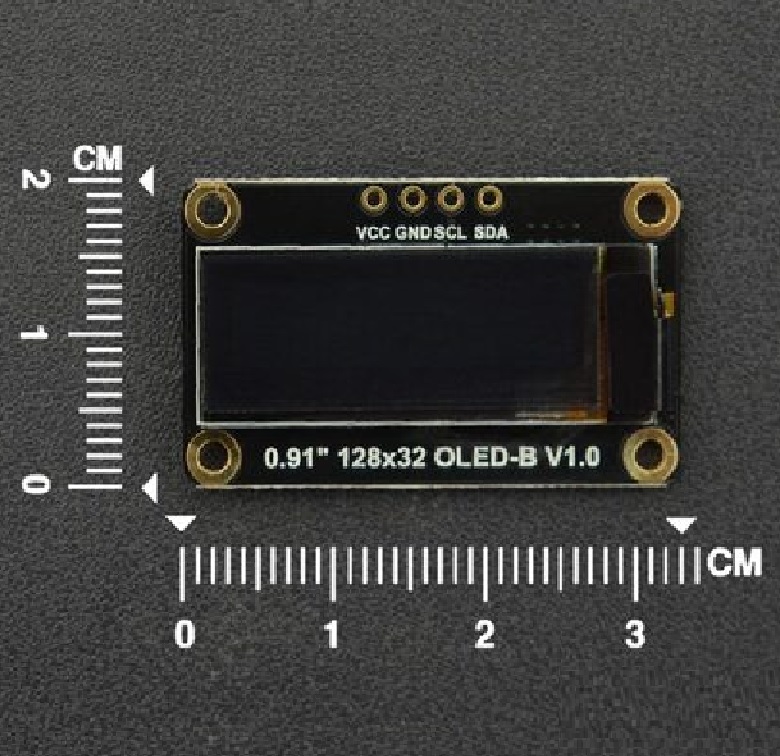

- Compact footprint: 33mm x 20mm with 2mm mounting holes.
- Wide operating temperature range: -30°C to +75°C.
Out of stock
This compact OLED display module utilizes an SSD1306 driver chip to deliver Sharp Microelectronics, high-contrast monochrome graphics on a 0.91-inch diagonal screen. The I2C interface simplifies wiring, requiring only two signal lines (SDA, SCL) for communication with a wide range of microcontrollers, including Arduino UNO, ESP32, ESP8266, and STM32 platforms.
Designed for embedded systems, the module features a back chip-mounting pad for a low-profile installation and includes internal power-on reset circuitry for reliable initialization. Its low power profile makes it suitable for battery-powered wearable devices and portable instruments where display visibility and energy efficiency are critical.
Additional Information
| Weight | 0.015 kg |
|---|---|
| Dimensions | 3.3 × 2 cm |
