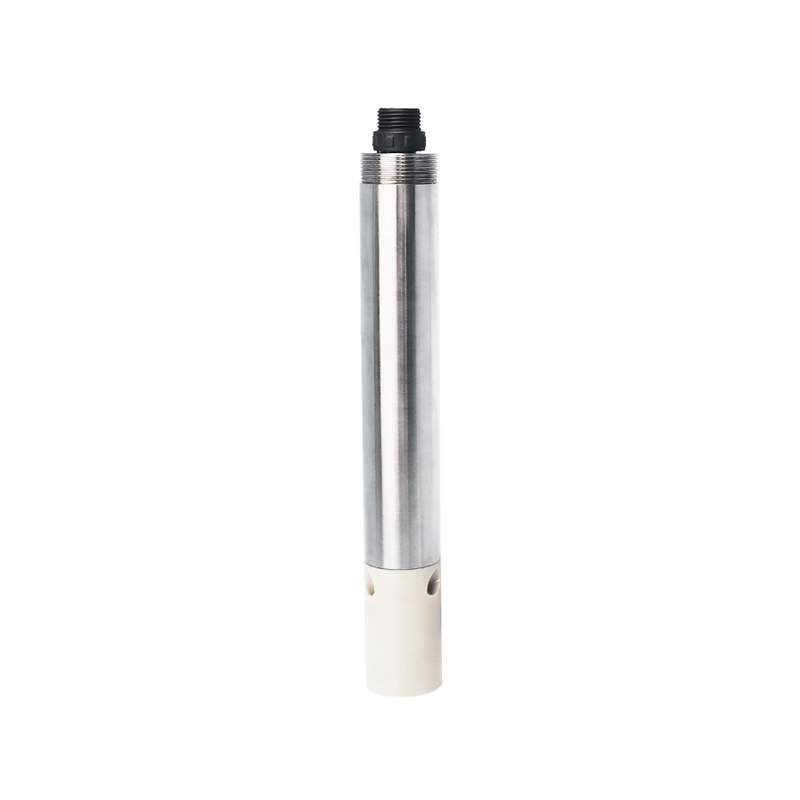

Desun Uniwill DS285 TDS Sensor, 0-60PPT, RS485 Modbus Output, SS316 + PPEK Body, IP68

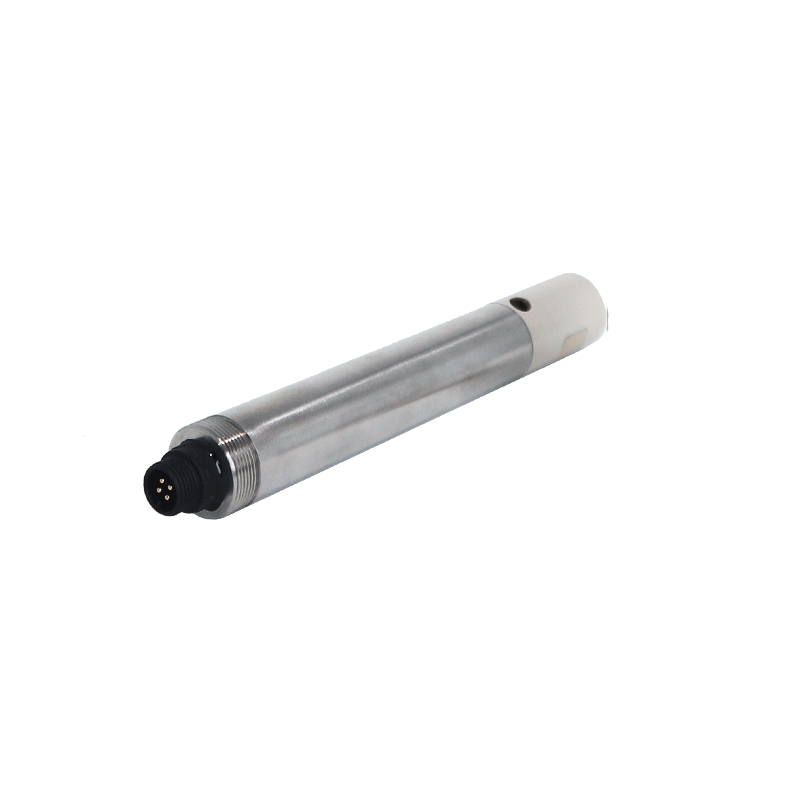

Desun Uniwill DS285 TDS Sensor, 0-60PPT, RS485 Modbus Output, SS316 + PPEK Body, IP68 - Image 2
SKU: SENS-0319
📋 GST Invoice Available

Desun Uniwill DS285 TDS Sensor, 0-60PPT, RS485 Modbus Output, SS316 + PPEK Body, IP68

₹34,649.00 (Inclusive of all taxes)
Out of Stock

The Desun Uniwill DS285 is an inline digital TDS sensor with a 0-60 PPT range and RS485 Modbus output, designed for continuous water quality monitoring in industrial and environmental systems. It features a robust SS316 + PPEK housing with IP68 waterproof rating for reliable operation in harsh conditions.

Features

  • Inline digital TDS sensor with a wide 0-60 PPT measurement range.
  • RS485 digital output supporting Modbus protocol for reliable long-distance communication.
  • Four/six-electrode technology with automatic range switching for high accuracy and stability.
  • Built-in temperature sensor provides real-time temperature compensation.
  • Robust SS316 + PPEK housing with IP68 waterproof rating for harsh environments.

Out of stock

Description

The DS285 TDS sensor utilizes advanced four/six-electrode technology to prevent electrode polarization, ensuring measurement stability and accuracy over extended periods. Its integrated temperature sensor provides automatic compensation, minimizing environmental interference for precise total dissolved solids readings.

Engineered for industrial durability, the sensor features a corrosion-resistant SS316 stainless steel and PPEK composite body, rated IP68 for continuous submersion. The RS485 interface with Modbus protocol enables seamless integration into SCADA, PLC, and data acquisition systems for long-distance, noise-immune data transmission.

Key Features

  • Wide 0-60 PPT measurement range, customizable for specific applications.
  • RS485 digital output with Modbus protocol support for industrial network integration.
  • Real-time temperature compensation via built-in sensor for enhanced accuracy.
  • Advanced four/six-electrode technology prevents polarization and ensures long-term stability.
  • IP68-rated waterproof protection for reliable operation in fully submerged conditions.
  • Fast response time of less than 2 seconds for real-time monitoring.
  • High corrosion resistance with SS316 + PPEK housing material.
  • Low power consumption, operating from a 6-12V DC supply.

Applications

  • Continuous online TDS monitoring in industrial water treatment and purification plants.
  • Aquaculture and hydroponic systems for nutrient solution concentration management.
  • Environmental monitoring of rivers, lakes, and effluent water quality.
  • Boiler feedwater and cooling tower water quality control in power plants.
  • Laboratory and research applications requiring precise, long-term dissolved solids measurement.

Technical Specifications

Model NumberDS285
Measurement Range0 – 60 PPT (customizable)
Accuracy±3–5%
Response Time< 2 seconds
Output InterfaceRS485 Digital Output (Modbus Protocol)
Operating VoltageDC 6 – 12 V
Input Current< 50 mA
Operating Temperature0 – 50 °C
Operating Pressure≤ 1 bar
Protection RatingIP68 Waterproof
Housing MaterialSS316 + PPEK
Cable Length5 m
Sensor Length153 mm
Outer Diameter22 mm
Weight900 g
Insulation Resistance≥ 20 MΩ

Frequently Asked Questions

What is the power supply requirement for the DS285 TDS sensor?

The DS285 operates from a 6-12V DC power supply with a current draw of less than 50 mA. Ensure your power source is stable and within this range for proper sensor function and to avoid damage.

How do I communicate with this sensor and what protocol does it use?

The sensor communicates via an RS485 digital interface using the Modbus RTU protocol. You will need an RS485-to-USB converter or an RS485 port on your PLC/controller to read the TDS and temperature data. Refer to the manufacturer's datasheet for the specific Modbus register map.

Is this sensor suitable for continuous submersion in water?

Yes, the DS285 features an IP68 waterproof rating, meaning it is protected against continuous immersion in water under the specified pressure and temperature conditions. Its SS316 + PPEK housing provides excellent corrosion resistance for harsh aqueous environments.

Does the sensor require calibration, and how is temperature compensation handled?

The sensor is pre-calibrated, but field calibration may be recommended for critical applications using standard solutions. It has a built-in temperature sensor that automatically compensates the TDS reading in real-time, ensuring accuracy across the 0-50°C operating range.

What is the maximum cable length for reliable data transmission?

The sensor includes a 5-meter integrated cable. For RS485 communication, you can extend the network significantly (up to 1200 meters typically) by using proper shielded twisted-pair cable and termination, adhering to RS485 standards for noise immunity.

Package Includes

  • 1 x Desun Uniwill DS285 TDS Sensor

Additional Information

Weight 0.9 kg
