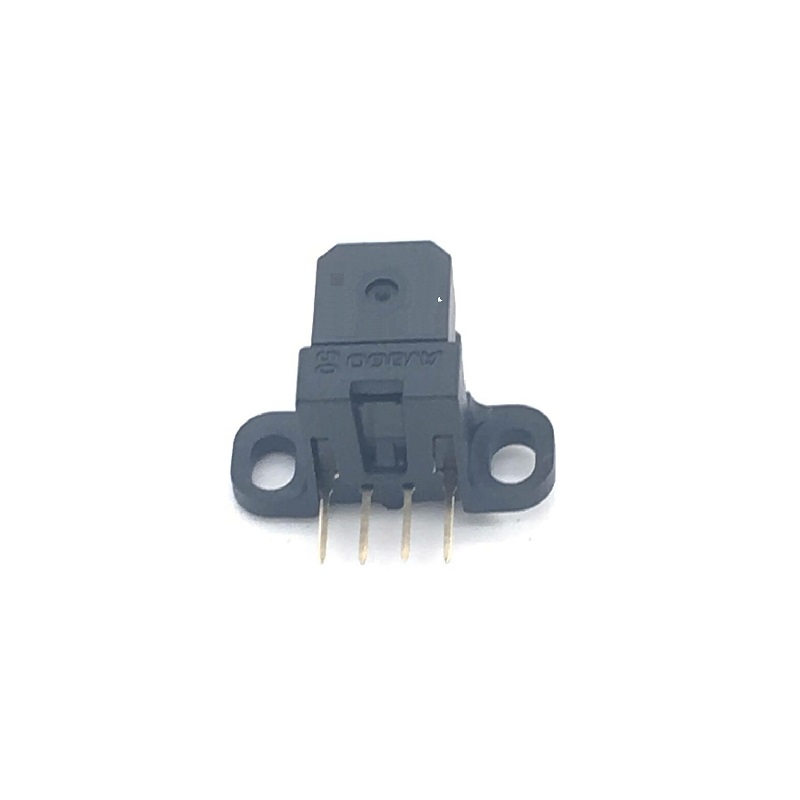

Broadcom HEDS-9700#F50 SIP-4-2.54mm Optical Encoder Module
The Broadcom HEDS-9700#F50 is a compact, low-cost optical incremental encoder module designed for detecting rotary or linear position when paired with a codewheel or codestrip. It features a TTL-compatible quadrature output and operates from a single 5V supply, making it suitable for integration into motion control systems, robotics, and industrial automation.
Features
- Optical incremental encoder module for rotary or linear position sensing.
- Generates two-channel digital quadrature output signals (TTL compatible).
- Single 5V DC supply operation with wide operating temperature range (-40°C to +85°C).
- Highly collimated LED source and unique photodetector array for tolerance to mounting misalignment.
- Compact SIP-4 package with 2.54mm pin spacing for easy PCB integration.
Out of stock
The Broadcom HEDS-9700#F50 optical encoder module integrates a lensed LED light source and a specialized photodetector IC within a small, C-shaped plastic housing. Its design generates a highly collimated beam, enabling precise detection of movement via an external codewheel or codestrip. This configuration provides inherent tolerance to radial and axial mounting misalignment, simplifying mechanical assembly.
The module outputs two-channel digital quadrature signals (Channel A and Channel B), which are TTL-compatible for direct interface with microcontrollers, counters, and digital logic circuits. It requires no external signal adjustment or trimming, offering a reliable and straightforward solution for adding high-resolution position feedback to electromechanical systems.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 11 × 7 × 2 cm |
