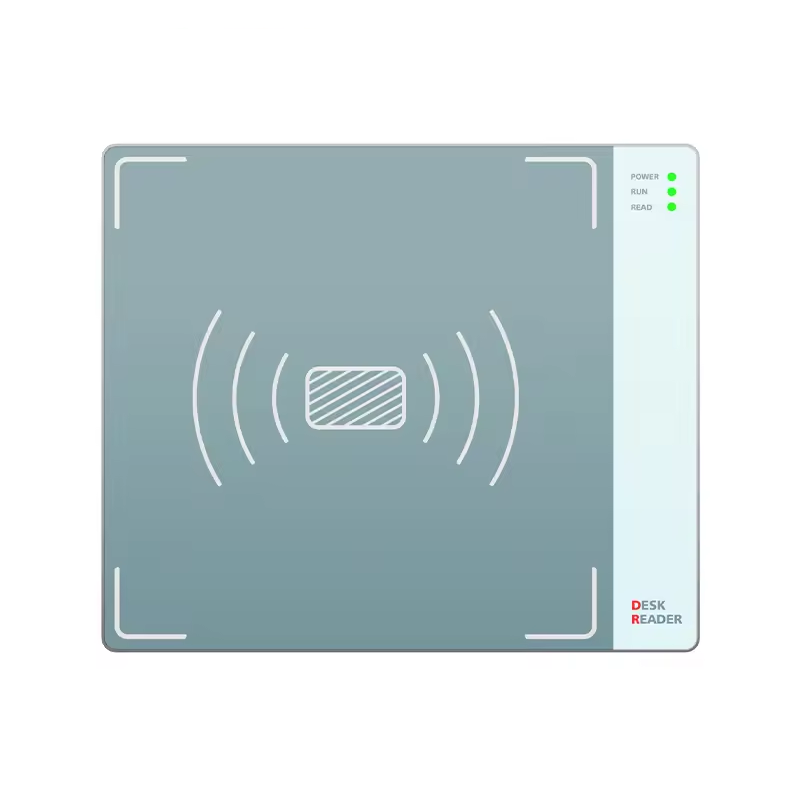

CHAFON CF603 UHF RFID Desktop Reader & Writer, 865-868 MHz EU, 100 Tags/s, USB-C Interface, Range: 0-1 m

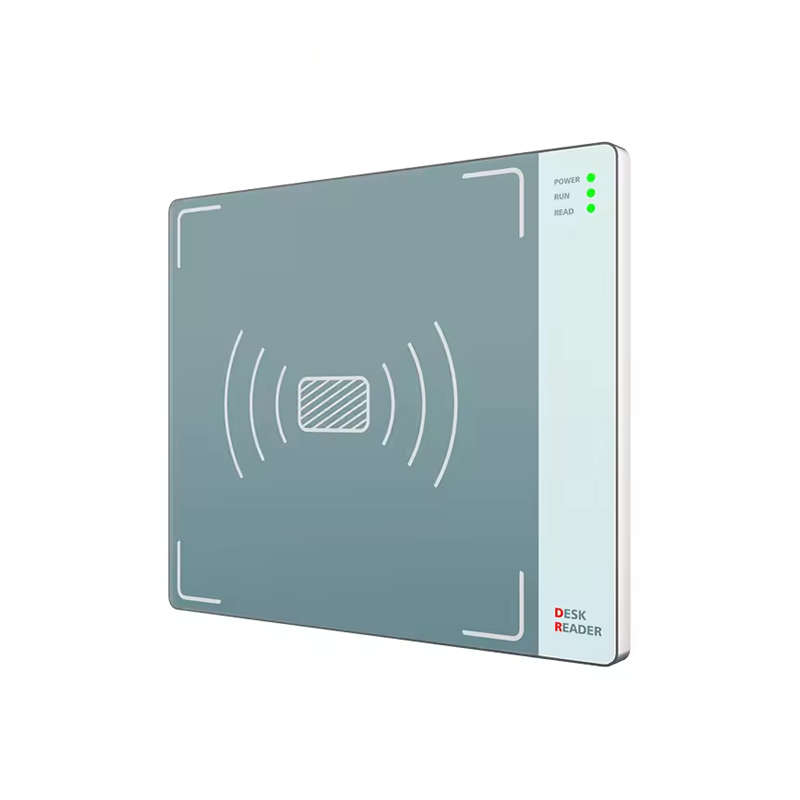

CHAFON CF603 UHF RFID Desktop Reader & Writer, 865-868 MHz EU, 100 Tags/s, USB-C Interface, Range: 0-1 m - Image 2

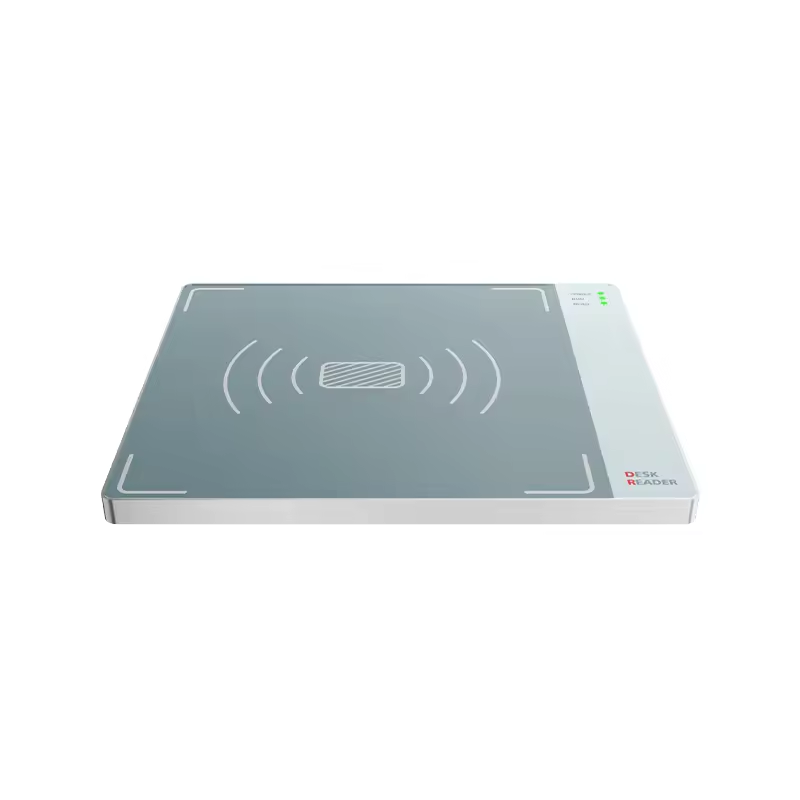

CHAFON CF603 UHF RFID Desktop Reader & Writer, 865-868 MHz EU, 100 Tags/s, USB-C Interface, Range: 0-1 m - Image 3

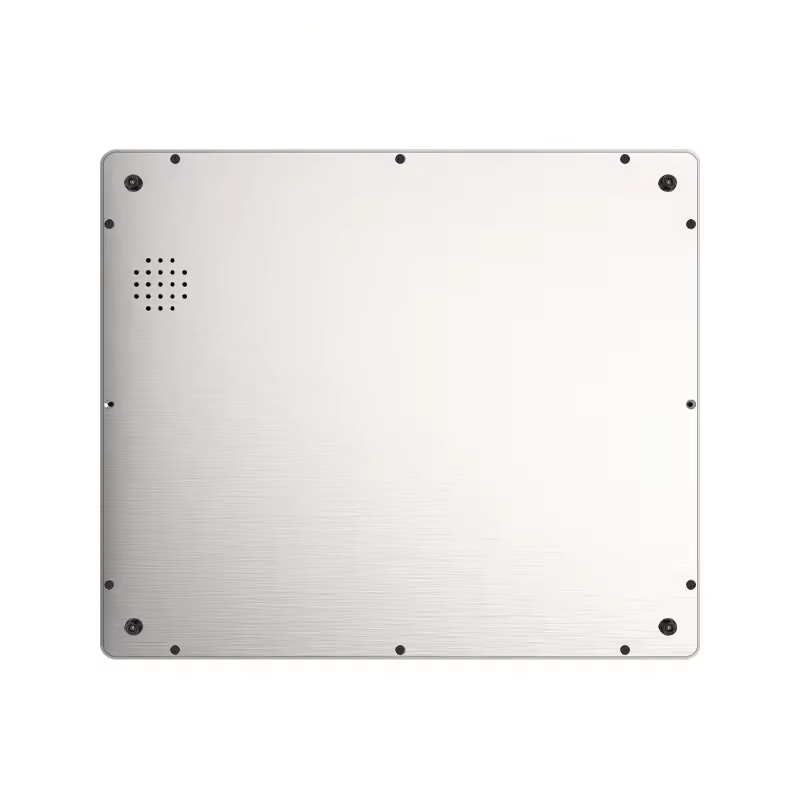

CHAFON CF603 UHF RFID Desktop Reader & Writer, 865-868 MHz EU, 100 Tags/s, USB-C Interface, Range: 0-1 m - Image 4
SKU: SENS-2549
📋 GST Invoice Available

CHAFON CF603 UHF RFID Desktop Reader & Writer, 865-868 MHz EU, 100 Tags/s, USB-C Interface, Range: 0-1 m

₹16,999.00 (Inclusive of all taxes)
Out of Stock

The CHAFON CF603 is a high-performance UHF RFID desktop reader/writer module operating at 865-868 MHz (EU standard). It offers rapid tag reading up to 100 tags per second via a USB-C interface, making it ideal for integration into asset tracking, inventory management, and access control systems.

Features

  • High-speed UHF RFID reading at up to 100 tags per second.
  • USB-C interface provides both data transfer and low-power operation (4-5.5V).
  • Supports ISO18000-6C (EPC GEN2) protocol for broad tag compatibility.
  • Compact and durable desktop form factor with tempered glass and aluminum alloy construction.
  • Includes comprehensive SDK support for C#, Java, Python, Delphi, and VB for easy system integration.

Out of stock

Description

The CHAFON CF603 UHF RFID Desktop Reader/Writer is engineered for precision and reliability in professional RFID applications. Utilizing the ISO18000-6C (EPC GEN2) standard, it ensures accurate communication with a wide range of UHF tags. Its robust design, featuring a tempered glass surface and aluminum alloy frame, provides durability for desktop environments.

Equipped with a USB-C interface, the module simplifies connectivity and power delivery, supporting a wide input voltage range of 4 to 5.5V DC. The adjustable RF output power (5–26 dBm) allows for fine-tuning of the read zone up to 1 meter, optimizing performance for specific deployment scenarios. Visual and auditory feedback via status LEDs and a buzzer provides immediate operational confirmation.

Key Features

  • High-speed bulk reading capability for efficient inventory and asset management.
  • USB-C interface ensures modern, reversible connectivity and streamlined power delivery.
  • Software Development Kits (SDKs) and multi-language API support (C#, Java, Python, Delphi, VB) accelerate custom application development.
  • Adjustable RF output power from 5 to 26 dBm (±0.2 dB accuracy) for precise read zone control.
  • Durable construction using tempered glass and aluminum alloy for long-term desktop use.
  • Low power consumption design with active, idle, and sleep modes for energy efficiency.
  • Integrated visual (Power, Run, Read LEDs) and auditory (buzzer) status indicators.

Applications

  • Desktop asset tracking and management systems for IT equipment and electronics.
  • High-speed inventory counting and reconciliation in retail and warehouse environments.
  • Library media check-in/checkout and anti-theft systems.
  • Access control and personnel tracking for secure office areas.
  • Production line item identification and process control in manufacturing.

Technical Specifications

Model NumberCF603
Operating Frequency865-868 MHz (EU Standard), 902-928 MHz (US Standard)
ProtocolISO18000-6C (EPC GEN2)
Max Read RateUp to 100 tags/second
Operating Range0 - 1 meter
InterfaceUSB-C
Operating Voltage4 - 5.5 V DC
Operating Current10 - 300 mA
RF Output Power5 - 26 dBm (adjustable in 1 dB steps)
RF Output Accuracy±0.2 dB
Receiver Sensitivity-79 dBm @ 15 dBm; -77 dBm @ 20 dBm
Baud Rate115200 bps
Power Consumption<1.5 W (Active), 0.25 W (Idle), 0.05 W (Sleep)
Dimensions (L x W x H)400 x 340 x 26 mm
Weight2200 g (2.2 kg)
ConstructionTempered Glass, Aluminum Alloy

Frequently Asked Questions

What is the operating voltage and power source for the CHAFON CF603?

The CF603 operates on a wide input voltage range of 4 to 5.5V DC, which is supplied directly through its USB-C interface. This eliminates the need for a separate power adapter, as the module draws power from a standard USB port on a computer or a compatible USB power supply.

What programming languages are supported for developing custom applications with this RFID reader?

CHAFON provides comprehensive Software Development Kits (SDKs) and API libraries for multiple programming environments. Supported languages include C#, Java, Python, Delphi, and Visual Basic (VB), facilitating rapid integration into existing desktop software or the development of new custom management systems.

Can the read range and power output of the CF603 be adjusted?

Yes, the RF output power is fully adjustable from 5 dBm to 26 dBm in 1 dB steps, with a high accuracy of ±0.2 dB. This allows you to fine-tune the effective read zone, optimizing it for specific tag types and desktop layouts, and helps comply with regional RF power regulations.

What RFID protocol and frequency standards does this reader support?

The CF603 complies with the ISO18000-6C (EPC GEN2) UHF RFID air interface protocol. It is available in region-specific frequency variants: 865-868 MHz for the European Union (EU) market and 902-928 MHz for the United States (US) market. Ensure you select the correct frequency variant for your location.

Package Includes

  • 1 x CHAFON CF603 UHF RFID Desktop Reader & Writer
  • 1 x USB Cable

Additional Information

Weight 2.2 kg
Dimensions 40 × 34 × 2.6 cm
