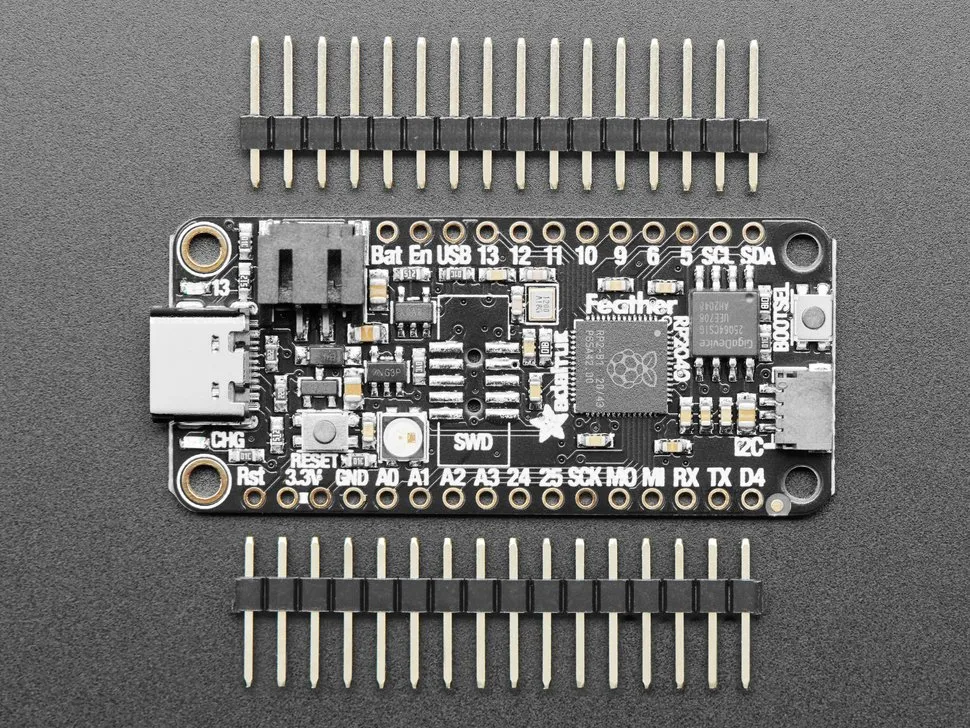

Adafruit Feather RP2040

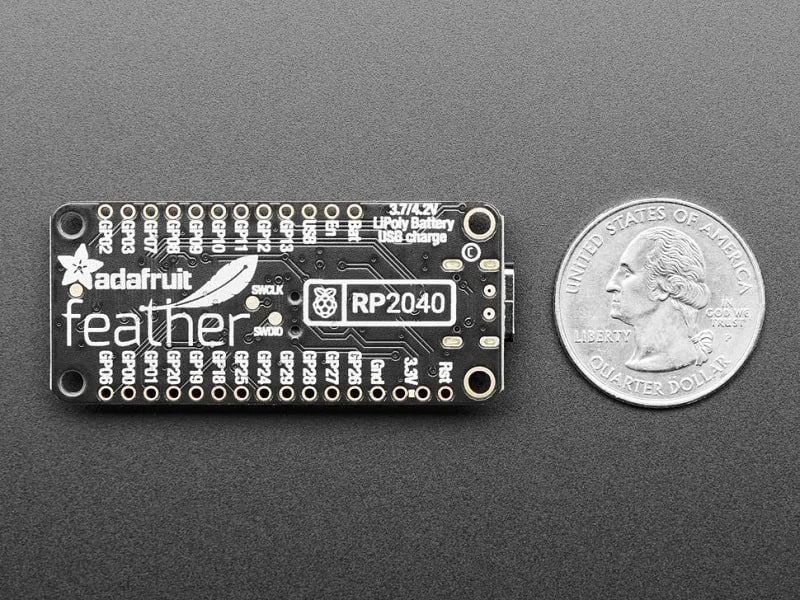

Adafruit Feather RP2040 - Image 2

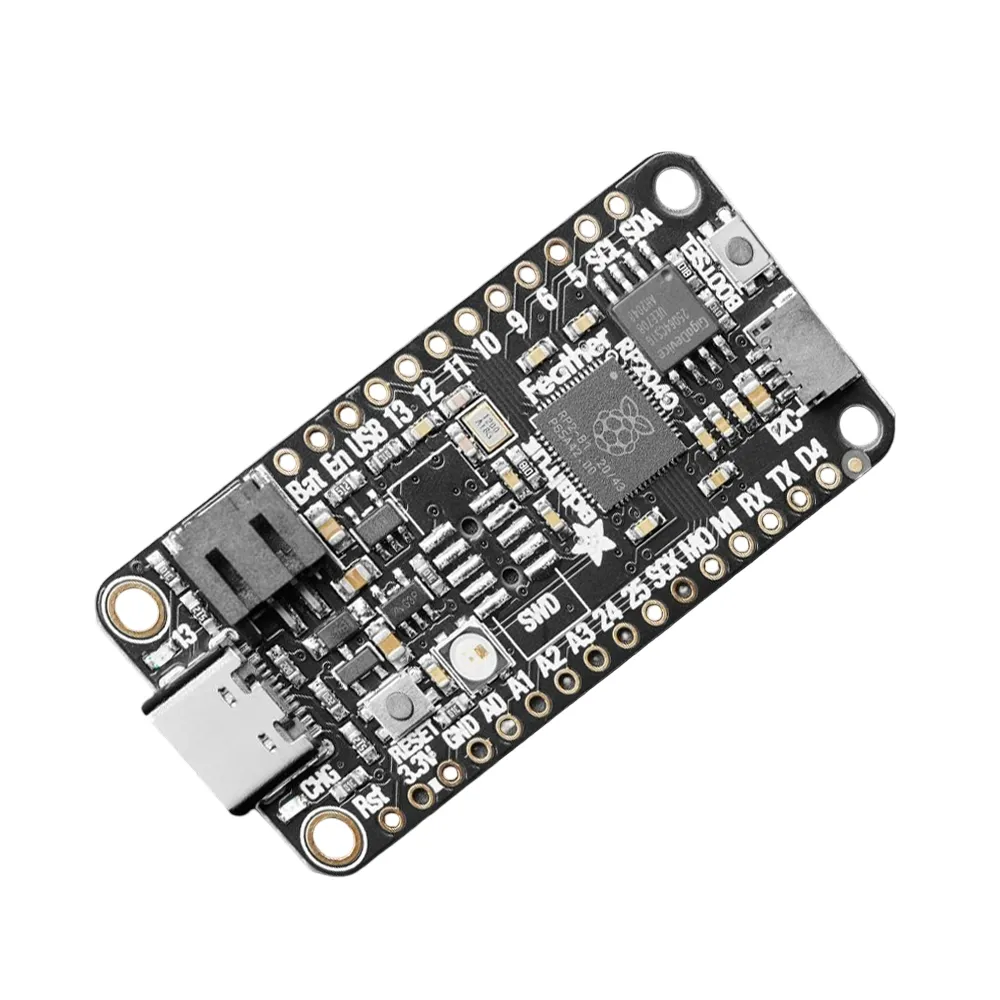

Adafruit Feather RP2040 - Image 3

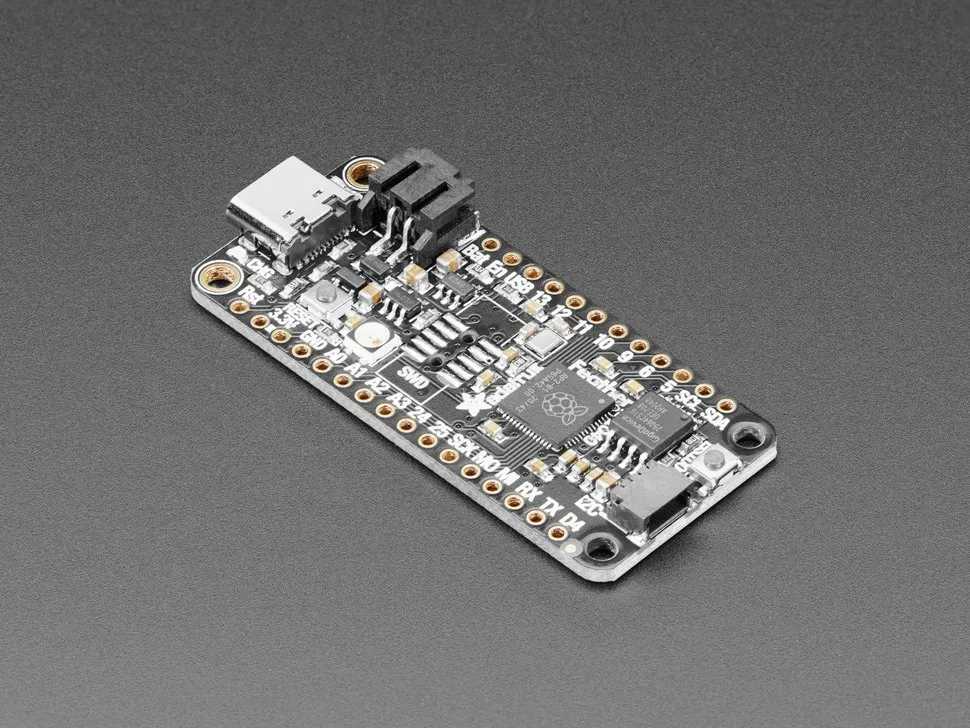

Adafruit Feather RP2040 - Image 4
SKU: SBCD-0306
📋 GST Invoice Available

Adafruit Feather RP2040

₹1,469.00 (Inclusive of all taxes)
Out of Stock

The Adafruit Feather RP2040 integrates Raspberry Pi’s powerful dual-core ARM Cortex-M0+ RP2040 microcontroller into the popular Feather form factor, offering 8MB SPI Flash and a built-in LiPo charger for portable, versatile development in CircuitPython or MicroPython.

Features

  • Powered by the dual-core RP2040 (ARM Cortex-M0+ @ 133 MHz) with 264KB SRAM.
  • Features 8MB SPI Flash for ample code and data storage.
  • Includes a built-in LiPo charger, USB-C connector, and STEMMA QT/Qwiic interface.
  • Offers 21 multi-function GPIO pins, with ADC and PWM capabilities.
  • Supports drag-and-drop programming via UF2 bootloader for CircuitPython and MicroPython.

Out of stock

Description

The Adafruit Feather RP2040 brings the high-performance Raspberry Pi RP2040 microcontroller to the compact, breadboard-friendly Feather form factor. This board is engineered for developers and makers seeking a robust yet portable platform for a wide range of embedded projects. It combines the RP2040’s dual ARM Cortex-M0+ cores, clocked at 133 MHz, with 264KB of on-chip SRAM, providing significant processing power for real-time applications. An additional 8MB of SPI Flash offers generous space for CircuitPython, MicroPython, or C/C++ firmware, ensuring ample room for complex code and data storage.

Peripheral connectivity is comprehensive, featuring 21 multi-function GPIO pins, including 4 x 12-bit ADCs, two I2C, two SPI, and two UART interfaces. The board also includes a convenient STEMMA QT / Qwiic connector for effortless integration with a vast ecosystem of sensors and peripherals, along with a NeoPixel RGB LED and a status LED. A crucial feature for portable applications is the integrated LiPo battery charging circuit via the USB-C port. The RP2040’s unique Programmable I/O (PIO) state machines enable custom hardware logic for high-speed, timing-critical tasks like controlling NeoPixels, I2S audio, or LED matrices, offloading the CPU and enhancing performance. Programming is streamlined through the UF2 bootloader, allowing for drag-and-drop firmware updates.

Key Features

  • Dual ARM Cortex-M0+ processor running at 133 MHz for efficient processing.
  • 264 KB of on-chip SRAM across six independent banks.
  • Dedicated QSPI bus supporting up to 16 MB of off-chip Flash memory.
  • Integrated DMA controller and fully-connected AHB crossbar for high-throughput data transfer.
  • Includes interpolator and integer divider peripherals for mathematical operations.
  • On-chip programmable LDO for core voltage generation and dual PLLs for USB and core clocks.
  • 30 GPIO pins, with 4 capable of 12-bit analog input, 2 UARTs, 2 SPI, and 2 I²C controllers.
  • 16 PWM channels for precise motor control, dimming, and signal generation.
  • USB 1.1 controller and PHY with host and device support for versatile connectivity.
  • 8 PIO state machines (2 PIO peripherals with 4 state machines each) for custom, timing-critical hardware interfacing.

Technical Specifications

Item TypeDevelopment Board
Board TypeFeather Type
Chip TypeRP2040
ProcessorDual ARM Cortex-M0+
Clock Speed133 MHz
On-chip SRAM264 KB
SPI Flash8 MB
GPIO Pins21 (multifunction), 4x 12-bit ADC
Interfaces2x I2C, 2x SPI, 2x UART, 16x PWM
USBUSB Type-C (USB 1.1 with host/device support)
Voltage Regulator3.3V with 500mA peak output
Lipo ChargerBuilt-in
ConnectorsSTEMMA QT / Qwiic
BootloaderUSB UF2
Operating Voltage3.3V Logic & Power

Frequently Asked Questions

How do I program the Adafruit Feather RP2040?

Programming is done via the UF2 bootloader. Hold the BOOTSEL button while plugging into USB, or cycle power with BOOTSEL pressed. The board appears as a USB drive; drag and drop your CircuitPython, MicroPython, or compiled C/C++ firmware files onto it for easy flashing.

What power options does the Feather RP2040 support?

The board can be powered via its USB-C port. It also includes an integrated LiPo battery charging circuit, allowing you to connect a single-cell LiPo battery for portable operation while simultaneously charging it when USB power is available.

What is the purpose of the PIO state machines on the RP2040?

The PIO (Programmable I/O) state machines are unique hardware blocks that can execute small programs independently of the CPU. They are ideal for precise, timing-critical tasks like driving NeoPixels, I2S audio, or custom bit-banged protocols, offloading the main processor and ensuring real-time accuracy.

Is the Adafruit Feather RP2040 compatible with the Feather ecosystem?

Yes, the Adafruit Feather RP2040 adheres to the standard Feather form factor, making it compatible with a wide range of existing FeatherWings and accessories. It also includes a STEMMA QT / Qwiic connector for easy integration with I2C sensors and displays.

What development environments are supported for the RP2040?

The RP2040 is highly versatile, supporting official SDKs for C/C++, MicroPython, and CircuitPython. Popular IDEs like VS Code with the Pico-Go extension, Thonny for MicroPython/CircuitPython, and PlatformIO can be used for development, offering a flexible programming experience.

Package Includes

  • 1 x Adafruit Feather RP2040

Additional Information

Weight 0.009 kg
Dimensions 9 × 7 × 1 cm

Related Products

Out of Stock

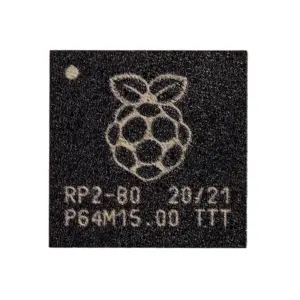

Raspberry Pi RP2040 Microcontroller IC

67.00
Learn More
Out of Stock

Vicharak Shrike-lite MCU FPGA Development Board

409.00
Learn More
Out of Stock

Raspberry Pi Build HAT - LEGO Robotics Controller

1,964.00
Learn More
Out of Stock

Arduino Nano RP2040 Connect with Headers

2,279.00
Learn More
Out of Stock

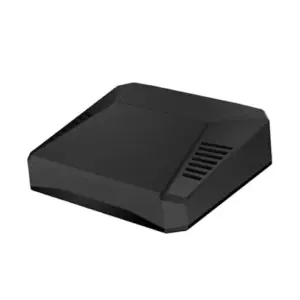

Argon ONE V3 Case for Raspberry Pi 5

3,969.00
Learn More
Out of Stock

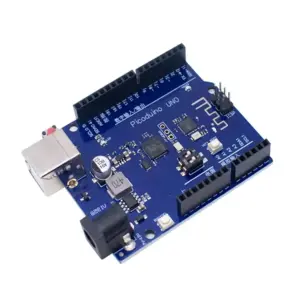

Raspberry Pi Pico RP2040 UNO Development Board

799.00
Learn More
Out of Stock

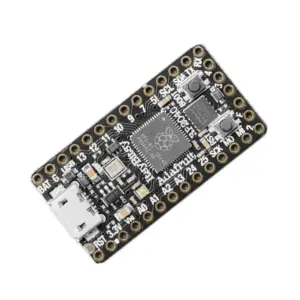

Adafruit ItsyBitsy RP2040 Development Board

1,249.00
Learn More
Out of Stock

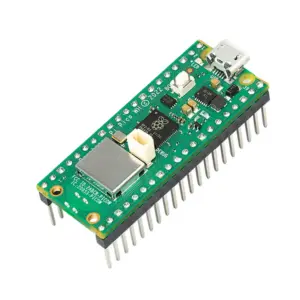

Raspberry Pi Pico-WH: RP2040 Dev Board w/ Wi-Fi & Headers

799.00
Learn More
Out of Stock

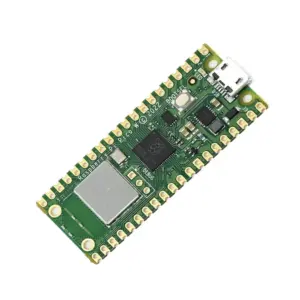

Raspberry Pi Pico W Microcontroller Board

679.00
Learn More
Out of Stock

Arduino Nano RP2040 Connect without Header

1,689.00
Learn More
Out of Stock

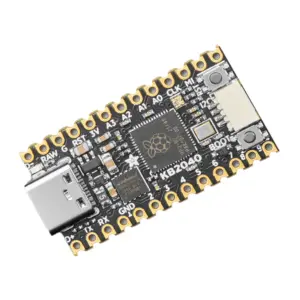

Adafruit KB2040 RP2040 Pro Micro Keyboard Driver

1,409.00
Learn More
Out of Stock

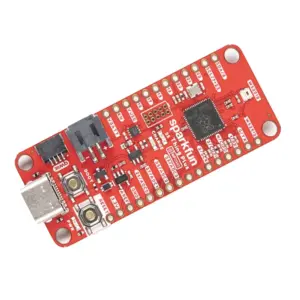

SparkFun Thing Plus RP2040 Development Board (DEV-17745)
