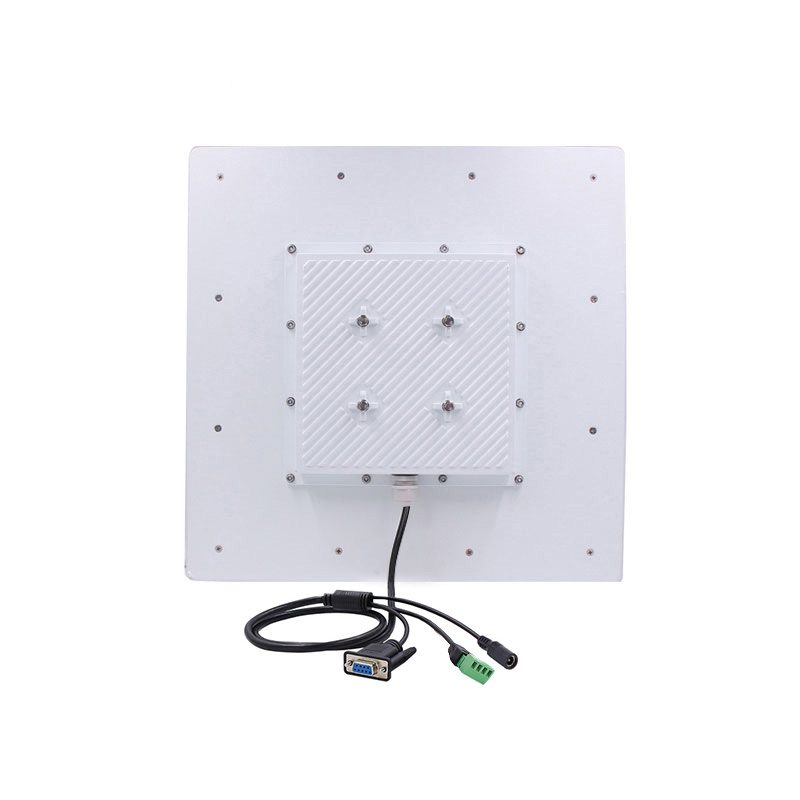

CHAFON CF5C1 UHF RFID Reader, 865-868 MHz, RS232 & Wiegand Interface, 12 dBi Antenna, 0-26 dBm Adjustable, 0-15 m Range

Name: CHAFON CF5C1 UHF RFID Reader, 865-868 MHz, RS232 &amp; Wiegand Interface, 12 dBi Antenna, 0-26 dBm Adjustable, 0-15 m Range
Brand: CHAFON
SKU: SENS-2561
Price: 17849.00 INR
Availability: OutOfStock

₹17,849.00 (Inclusive of all taxes)

Out of Stock

The CHAFON CF5C1 is a high-performance UHF RFID reader module operating at 865-868 MHz (EU) or 902-928 MHz (US), designed for access control and asset tracking systems. It features a built-in 12 dBi antenna, adjustable RF output power (0-26 dBm), and provides RS232 and Wiegand 26-bit interfaces for seamless integration with industrial controllers and security panels.

Features

Long-range UHF RFID reading up to 15 meters with integrated 12 dBi antenna.
Adjustable RF output power from 0 to 26 dBm for precise range control and compliance.
Dual communication interfaces: RS232 serial and Wiegand 26-bit (WG26).
Rugged IP65-rated ABS housing for reliable outdoor and industrial deployment.
Includes RSSI (Received Signal Strength Indication) for distance-based identification and triggering.

Out of stock

Get Notified When Available

Description

The CHAFON CF5C1 UHF RFID Reader operates on the EPCglobal Gen2 (ISO 18000-6C) protocol, utilizing passive backscatter technology for efficient tag reading. Its linear polarized 12 dBi antenna provides a consistent read zone, while the adjustable RF power allows operators to fine-tune the interrogation field to match specific application requirements, from short-range access points to extended asset tracking corridors.

Engineered for continuous operation, the reader is powered by a 12V DC, 2A supply and is housed in a durable ABS enclosure with an IP65 rating, offering protection against dust and water jets. It includes a configurable trigger input for on-demand reading and a buzzer for audible operation feedback, making it suitable for automated vehicle gates, warehouse logistics, and secure personnel management systems.

Key Features

High-Gain Integrated Antenna: Features a built-in 12 dBi linear polarized antenna for extended and reliable tag detection.
Software-Adjustable RF Power: Output power is configurable from 0 to 26 dBm via software commands for optimal performance and regulatory compliance.
Multi-Protocol Interface Support: Provides both RS232 serial communication for configuration and data output, and a standard Wiegand 26-bit interface for direct connection to access control panels.
Industrial-Grade Durability: Housed in an IP65-rated ABS casing, designed to withstand harsh environmental conditions in outdoor installations.
Advanced Tag Management: Supports RSSI-based distance estimation and anti-collision algorithms for reading multiple tags simultaneously in dense environments.
Flexible Trigger & I/O: Includes configurable trigger input for initiating read cycles based on external events (e.g., motion sensor, loop detector).

Applications

Secure Vehicle Access Control: Managing entry/exit at gated facilities, parking garages, and toll booths using windshield-mounted UHF tags.
Industrial Asset Tracking & Management: Real-time inventory and tool tracking within warehouses, manufacturing floors, and logistics yards.
Personnel Access & Time Attendance: Integrated with turnstiles or door controllers for hands-free employee identification in secure buildings.
Outdoor Equipment & Container Management: Monitoring the location and status of shipping containers, construction equipment, and rental assets.
Automated Weighbridge & Logistics: Associating RFID-tagged vehicles with weight data in automated weighing systems for streamlined logistics.

Technical Specifications

Model Number	CF5C1
Operating Frequency	865-868 MHz (EU), 902-928 MHz (US)
RF Output Power	0 - 26 dBm (adjustable)
Maximum Read Distance	Up to 15 m
Antenna Gain	12 dBi (integrated, linear polarized)
Communication Interfaces	RS232, Wiegand 26-bit (WG26), Trigger Input, Power Port
Protocol Support	EPCglobal UHF Gen2 (ISO 18000-6C)
Power Supply	12V DC, 2A
Housing Material	ABS Plastic
Ingress Protection (IP) Rating	IP65
Dimensions (L x W x H)	450 x 450 x 80 mm
Weight	3.5 kg

Frequently Asked Questions

What is the operating voltage and power requirement for the CF5C1 reader?

The CHAFON CF5C1 requires a 12V DC, 2A power supply. It is recommended to use the included power adapter or a regulated industrial-grade 12V DC source to ensure stable operation, especially when the RF output power is set to its maximum 26 dBm setting.

How do I connect the CF5C1 to my existing access control system?

The reader offers two primary interfaces. For direct connection to most access control panels, use the Wiegand 26-bit (WG26) output wires (DATA0 and DATA1). For system configuration, data logging, or integration with a PC or industrial controller, use the RS232 serial port with standard TX, RX, and GND pins.

Can the reading range and RF power be adjusted?

Yes, the RF output power is fully software-adjustable from 0 dBm to 26 dBm via serial commands sent through the RS232 interface. Reducing the power shortens the read range, which is useful for creating precise read zones or complying with local RF emission regulations.

Is this reader suitable for outdoor installation?

Yes. The CF5C1 is housed in an ABS plastic enclosure with an IP65 rating, making it dust-tight and protected against water jets from any direction. It is designed for reliable performance in outdoor environments such as gate entrances, parking lots, and loading docks.

What type of RFID tags does the CF5C1 support?

The reader supports passive UHF RFID tags compliant with the EPCglobal Gen2 standard (ISO/IEC 18000-6C). It is compatible with a wide range of tag form factors, including labels, cards, key fobs, and windshield stickers operating in the 865-868 MHz (EU) or 902-928 MHz (US) frequency bands.
