CaddxFPV Walksnail Avatar HD Goggles
CaddxFPV Walksnail Avatar HD Goggles - Image 2
CaddxFPV Walksnail Avatar HD Goggles - Image 3
SKU: DRFC-2349
📋 GST Invoice Available

CaddxFPV Walksnail Avatar HD Goggles

₹67,568.00 (Inclusive of all taxes)
Out of Stock

The CaddxFPV Walksnail Avatar HD Goggles are a high-definition digital FPV headset featuring dual 1080p OLED micro-displays, a 46° FOV, and support for the Walksnail HD digital video system with integrated 5.8GHz diversity receivers.

Features

  • Dual 0.49″ 1080p OLED micro-displays for crisp, high-contrast video
  • 46° field of view with adjustable IPD (58-70mm) and diopter (+2 to -6)
  • Integrated Walksnail HD digital video receiver operating on 5.725-5.850GHz
  • HDMI input/output for external video sources or recording
  • Wide 7-21V (2S-5S LiPo) input voltage range with Type-C and DC barrel jack

Out of stock

Description

The Avatar HD Goggles are engineered as the dedicated ground station for the Walksnail digital HD FPV ecosystem. They integrate high-performance dual diversity receivers tuned for the Walksnail protocol, delivering low-latency, high-resolution video feeds from compatible air units. The optical system is built around premium OLED panels, offering superior black levels and color reproduction compared to traditional LCDs.

Constructed with a focus on pilot ergonomics, the goggles feature a lightweight chassis, adjustable head strap, and ventilated foam faceplate for extended comfort during long flying sessions. The inclusion of both HDMI input and output ports provides flexibility for simulator use, external recording, or sharing the FPV feed on a monitor.

Key Features

  • High-Definition OLED Displays: Dual 0.49-inch 1920x1080 OLED screens deliver exceptional image clarity, contrast, and color accuracy.
  • Walksnail HD Digital Integration: Native support for the Walksnail digital video protocol with built-in high-gain diversity receivers for stable, long-range signal.
  • Fully Adjustable Optics: Mechanical IPD adjustment (58-70mm) and individual diopter lenses (+2 to -6) accommodate a wide range of user vision and facial structures.
  • Versatile I/O Connectivity: Features HDMI input/output, a microSD card slot (supports up to 256GB), Type-C, and a DC 5.5x2.1mm power input for flexible integration.
  • Robust Power Design: Accepts a broad 7-21V DC input, compatible with standard 2S to 5S LiPo batteries or regulated power supplies.

Applications

  • Primary video receiver for pilots flying drones equipped with Walksnail Avatar HD or Avatar HD Pro digital video transmitters (VTx).
  • High-definition FPV flying for racing, freestyle, and cinematic drone pilots seeking a digital video feed with low latency.
  • Ground station for long-range or HD cinematic FPV builds utilizing the Walksnail digital ecosystem.

Technical Specifications

Model NameAvatar HD Goggles
Display Type0.49" OLED
Display Resolution1920 x 1080 per eye
Refresh Rate100Hz
Field of View (FOV)46°
IPD Adjustment Range58-70mm (Mechanical)
Diopter Adjustment+2 to -6
Video SystemWalksnail HD Digital
Operating Frequency5.725 - 5.850 GHz
Receiver ConfigurationDual Diversity
Antenna ConnectorRP-SMA (x4)
Input Voltage7-21V DC (2S-5S LiPo)
I/O PortsHDMI In/Out, Type-C, microSD Slot, DC Barrel Jack
microSD SupportUp to 256GB
Shipping Weight0.614 kg

Frequently Asked Questions

What video systems are compatible with the Walksnail Avatar HD Goggles?

These goggles are specifically designed for the Walksnail digital HD FPV ecosystem. They are natively compatible with Walksnail Avatar HD and Avatar HD Pro digital video transmitters (VTx). They are not compatible with analog FPV systems, DJI Digital FPV, or HDZero without an external module or adapter.

What is the input voltage range, and what batteries can I use?

The goggles accept a wide 7-21V DC input via the included DC barrel jack. This makes them compatible with a range of power sources, including standard 2S (7.4V), 3S (11.1V), 4S (14.8V), and 5S (18.5V) LiPo batteries, as well as many regulated 12V power supplies or battery packs.

Do the goggles have DVR functionality for recording flights?

Yes, the Avatar HD Goggles feature a built-in DVR. You can record the received Walksnail HD video feed directly to a microSD card (supports up to 256GB) inserted into the slot on the goggles. Recorded footage is saved in a standard video format for playback on other devices.

Can I use these goggles with an analog FPV drone or an HDMI source?

For analog FPV, you would need an external analog video receiver module. However, the goggles include an HDMI input port, allowing you to connect them to external HDMI video sources such as simulators, gaming consoles, or other digital video receivers that output via HDMI.

Package Includes

  • 1 x Avatar HD Goggles

Additional Information

Weight 0.614 kg
Dimensions 15 × 20 × 9 cm

Related Products

Out of Stock

CaddxFPV Walksnail Avatar VRX + Avatar HD Nano Kit V3

48,029.00
Learn More
Out of Stock

SpeedyBee BEC-GOGGLES-SL V3-G2

1,509.00
Learn More
Out of Stock

CaddxFPV Nebula Pro Digital Camera - Black

5,489.00
Learn More
Out of Stock

Skyzone SKY02O OLED 5.8GHz FPV Goggles

42,369.00
Learn More
Out of Stock

SIYI HM30 Full HD Digital Image Transmission FPV System

36,959.00
Learn More
Out of Stock

Hawkeye FPV Goggles v2.0

18,413.00
Learn More
Out of Stock

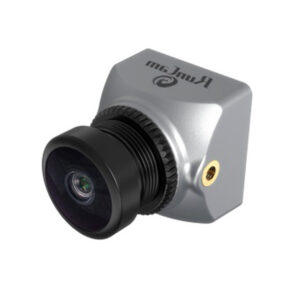

RunCam Link Phoenix HD Kit - Digital FPV Air Unit
