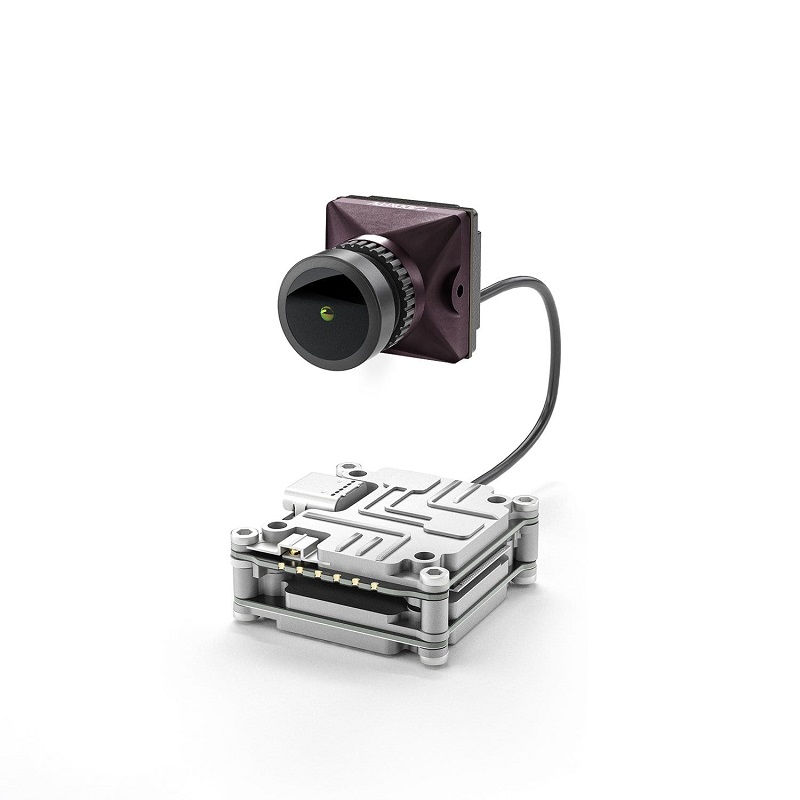

CaddxFPV Polar Vista Kit
The CaddxFPV Polar Vista Kit is a digital HD FPV air unit featuring a 1/1.8-inch Starlight CMOS sensor for exceptional low-light performance, transmitting 720p/60fps video with under 32ms latency. It is compatible with DJI FPV Goggles and supports Betaflight flight controllers (F3, F4, F7) via its 7.4V to 26.4V input range.
Features
- 1/1.8-inch Starlight CMOS sensor with 0.00003 Lux minimum illumination for superior night vision.
- Custom F/1.6 large aperture lens with 162° FOV and 8MP resolution.
- Low-latency digital video transmission at 720p/60fps with under 32ms end-to-end delay.
- Multi-power VTX output (25mW/200mW/500mW/700mW) with regional EIRP compliance (FCC/SRRC/MIC: <30dBm, CE: 14dBm).
- Wide input voltage range from 7.4V to 26.4V, compatible with 2S to 6S LiPo batteries.
Out of stock
The Polar Vista Kit integrates CaddxFPV’s advanced digital video transmission technology with a specialized low-light camera. The system utilizes a high-sensitivity 1/1.8-inch CMOS sensor paired with a fast F/1.6 lens, enabling clear video capture in near-total darkness. This makes it an ideal upgrade for pilots flying in dawn, dusk, or urban night environments where traditional FPV cameras fail.
Built around a secure digital transmission protocol, the unit ensures encrypted, low-latency video feed to DJI FPV Goggles. Its compact and lightweight design, coupled with a wide 7.4V-26.4V operating range, allows for flexible installation on a broad spectrum of FPV drones, from lightweight 3-inch builds to larger 7-inch platforms. The included 1.5g antenna offers 98% radiation efficiency for reliable signal propagation.
Additional Information
| Weight | 0.085 kg |
|---|---|
| Dimensions | 16 × 6 × 3 cm |
