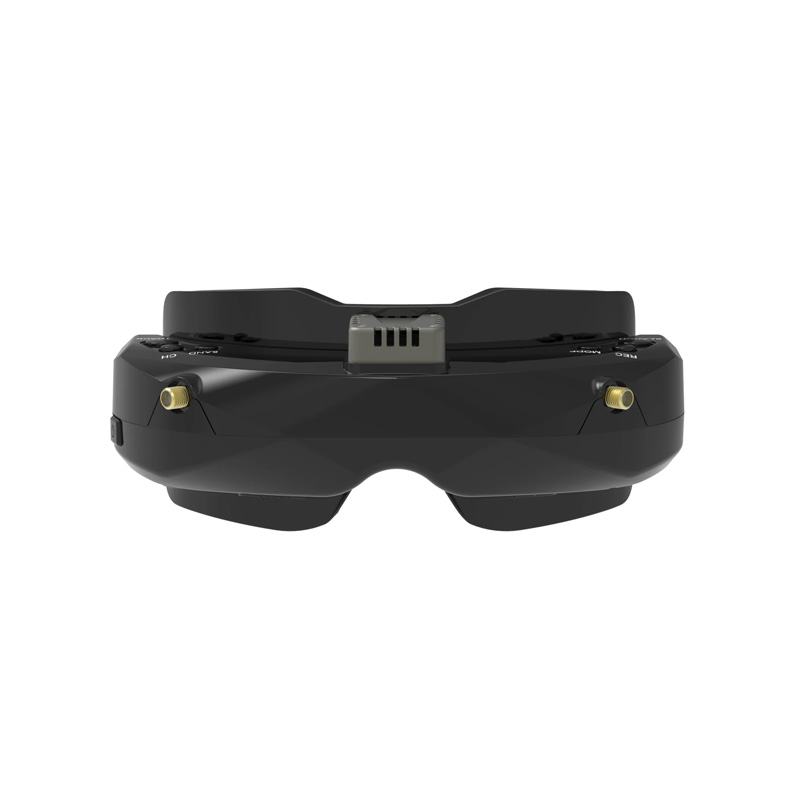

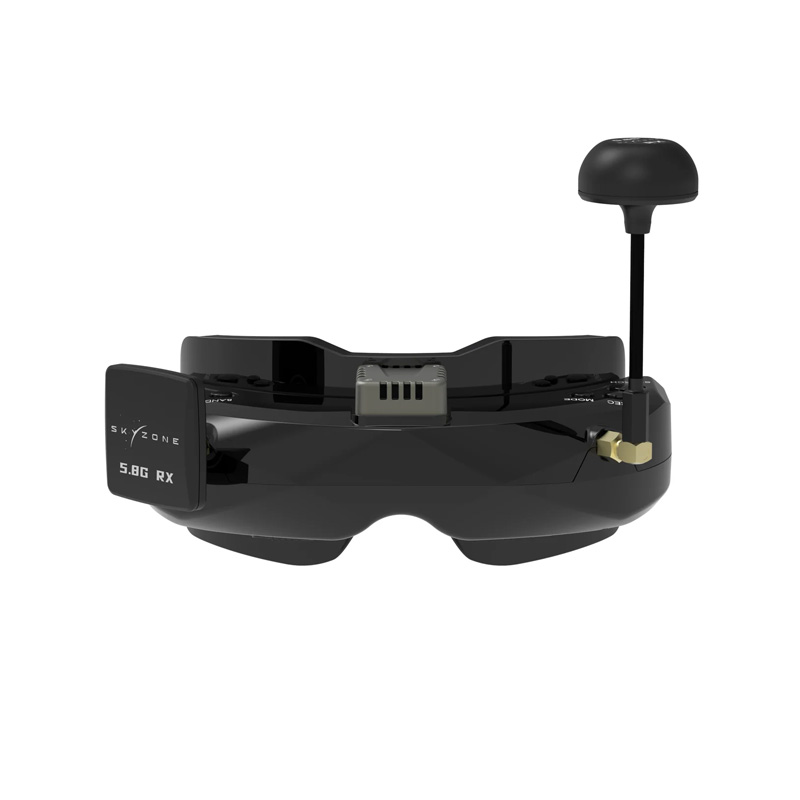

Skyzone SKY02O OLED 5.8GHz FPV Goggles
The Skyzone SKY02O FPV Goggles feature dual 640×400 OLED displays for vibrant color and high contrast, paired with a 5.8GHz 48CH SteadyView V3.3 diversity receiver for stable signal reception. They support 2S-6S LiPo input and include a built-in DVR and head tracker for a comprehensive FPV piloting experience.
Features
- Dual 640×400 OLED displays deliver vivid colors, high contrast, and sharp detail visibility.
- 5.8GHz 48CH SteadyView V3.3 diversity receiver merges signals to prevent image tearing and rolling.
- Built-in 3-axis head tracker and DVR (supports MJPEG, 30 fps, AVI up to 64GB SD card).
- Wide 2S-6S LiPo input voltage range (7.4V-25.2V) for flexible power source compatibility.
- Switchable 4:3 / 16:9 aspect ratio and adjustable IPD (59-69mm) with -6 to +2 diopter focus.
Out of stock
The Skyzone SKY02O represents an evolution of the classic SKY02 series, integrating high-resolution OLED technology for superior image quality. The dual 640×400 pixel screens provide exceptional color saturation and contrast ratio, allowing pilots to discern critical details during high-speed racing or cinematic flight. The integrated SteadyView diversity receiver processes signals from two antennas to deliver a stable, tear-free video feed even in challenging RF environments.
Engineered for extended functionality, the goggles include a built-in 3-axis accelerometer and gyroscope for head tracking integration with compatible flight controllers. The onboard DVR records flight footage in MJPEG format at 30 fps directly to an SD card. Power flexibility is ensured through a wide 2S-6S LiPo input range, while AV In/Out ports and HDMI output (720P at 100 FPS) support external monitors and simulator use.
Additional Information
| Weight | 0.69 kg |
|---|---|
| Dimensions | 16 × 24 × 10 cm |
