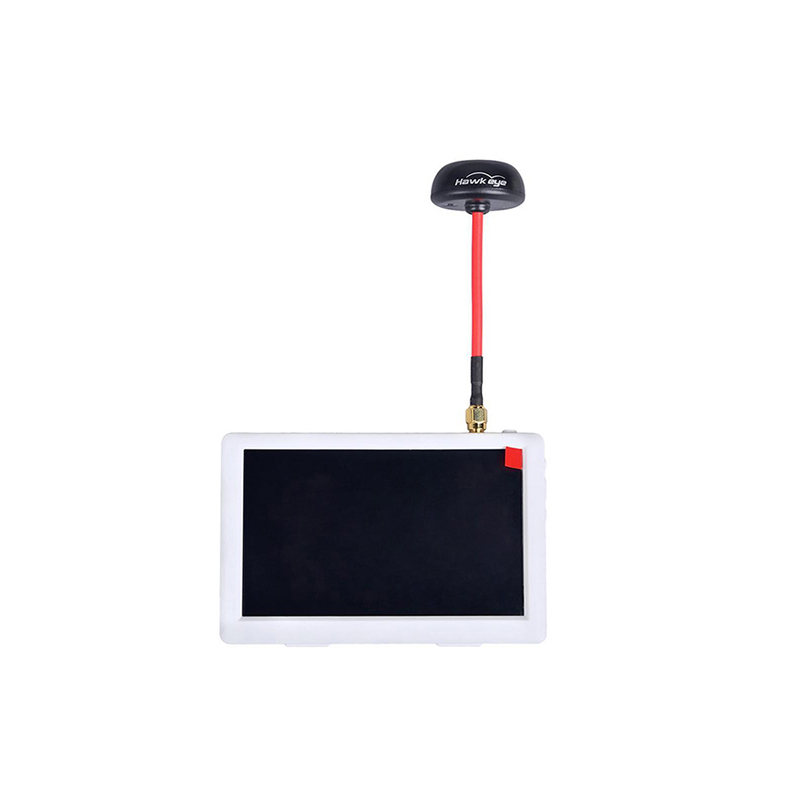

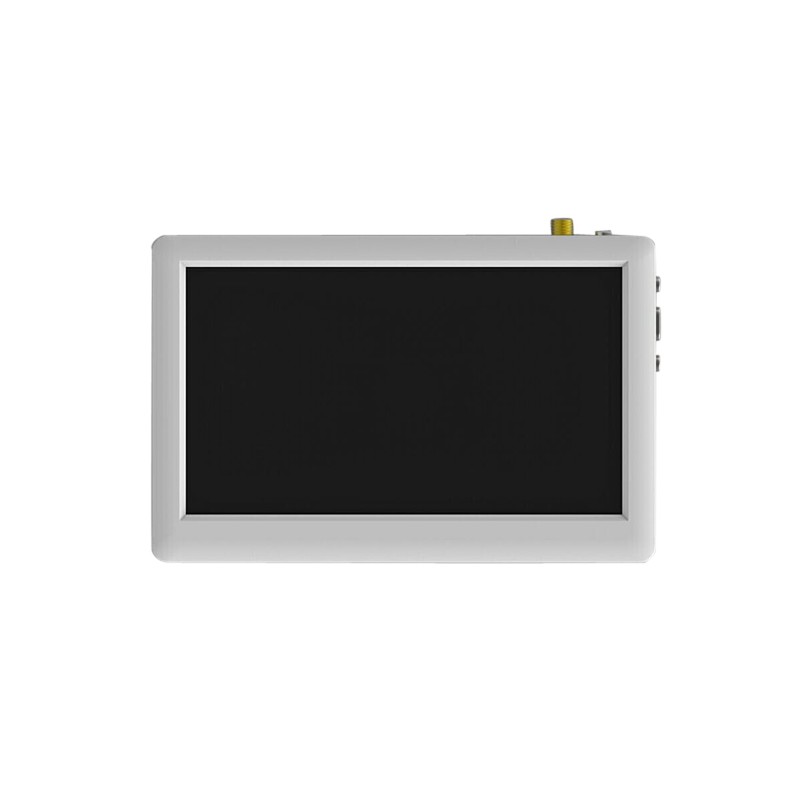

Hawkeye Little Pilot 5" FPV Monitor Display Screen with Receiver
The Hawkeye Little Pilot is a compact 5-inch all-in-one FPV monitor with a built-in 5.8GHz 32-channel receiver, designed for ground station use or mounting directly to a radio transmitter. It features an 800×480 resolution LED screen, on-screen signal strength and timer OSD, and is powered by an internal rechargeable battery.
Features
- 5-inch 800×480 high-definition LED backlit display with 700 cd/m² brightness.
- Integrated 5.8GHz 32-channel receiver with Raceband and one-key auto frequency search.
- On-screen display (OSD) for signal strength, voltage indicator, and operation timer.
- Compact and lightweight (166g) design includes CNC aluminum radio transmitter mounting bracket.
- Built-in rechargeable battery provides 2.5-3 hours of operation, charges via USB.
Out of stock
The Hawkeye Little Pilot is engineered as a highly portable FPV ground station solution. Its integrated 5.8GHz receiver features a sensitivity of -94 dBm and a robust anti-interference design, ensuring stable video reception across 32 channels including Raceband. The 5-inch screen delivers a clear 800×480 resolution with a 10ms response time, suitable for both PAL and NTSC video formats.
Constructed for field use, the monitor includes a comprehensive on-screen display system that provides critical telemetry such as link quality and elapsed flight time. The supplied CNC aluminum mounting bracket with a ball socket allows for secure attachment to radio transmitters and adjustable viewing angles. Its self-contained power system eliminates the need for external battery packs, streamlining setup for pilots.
Additional Information
| Weight | 0.166 kg |
|---|---|
| Dimensions | 12.8 × 2.4 × 1.4 cm |
