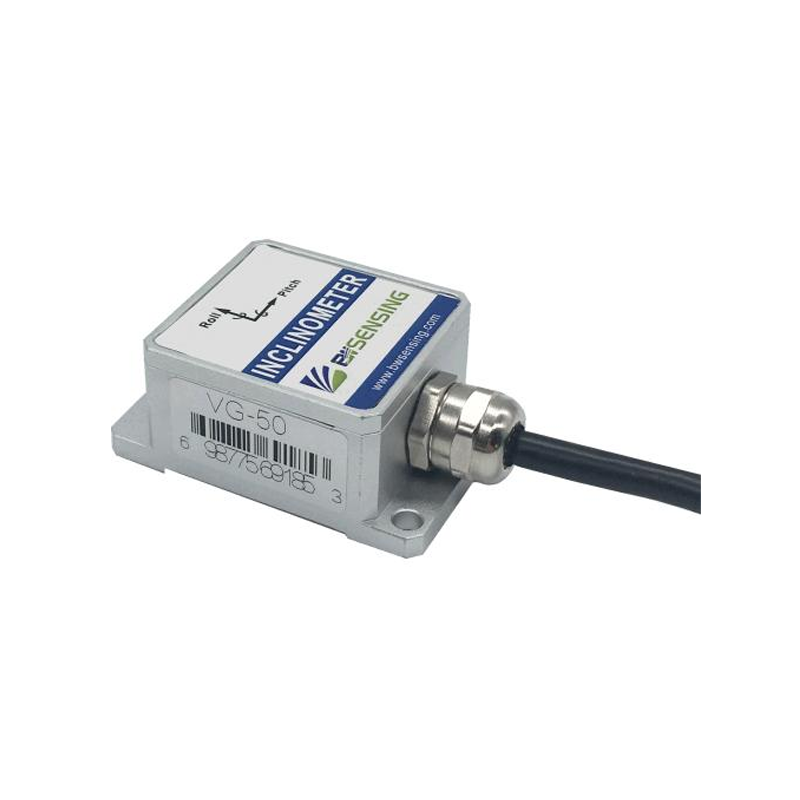

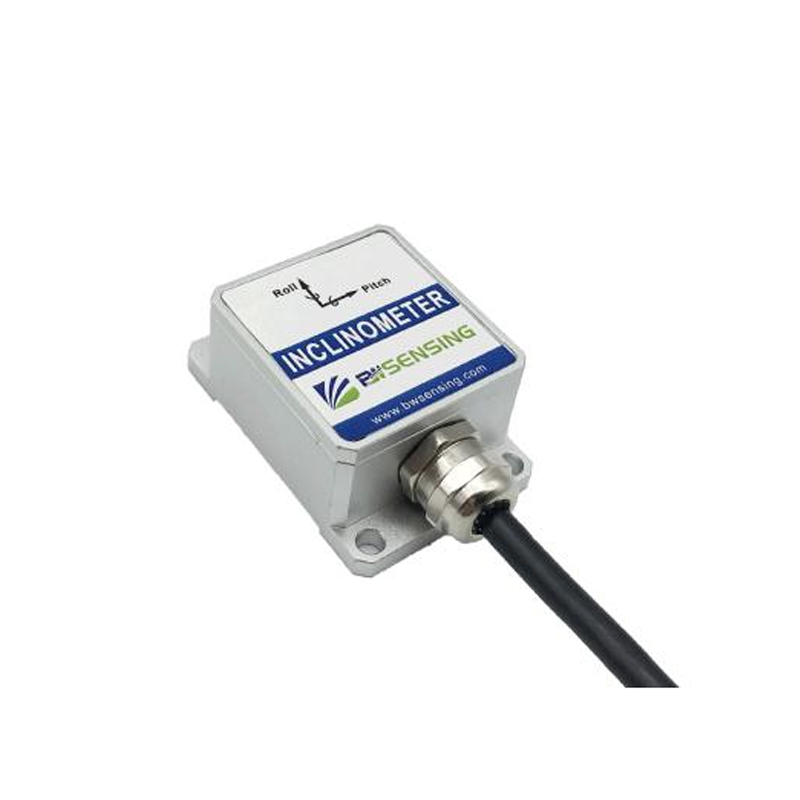

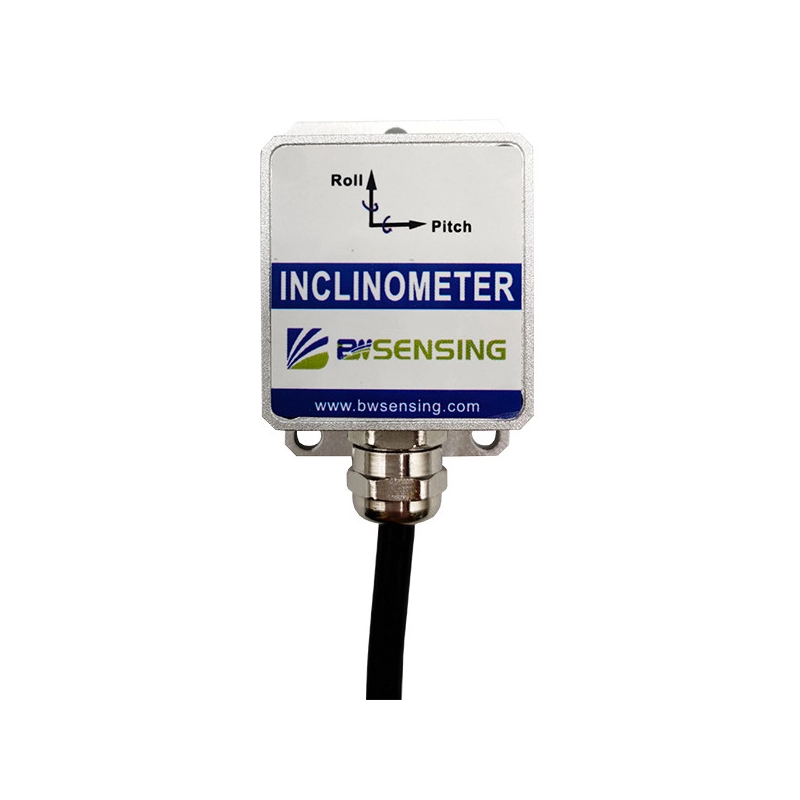

BWSENSING VG50 Digital Dynamic Inclination Sensor, RS485 Interface, Pitch ±90°, Roll ±180°
The BWSENSING VG50 is a high-precision dual-axis digital inclinometer with RS485 Modbus output, designed for dynamic attitude measurement in industrial automation, robotics, and marine applications. It operates from a 5-12V DC supply and features advanced compensation algorithms for stable performance across a wide -40°C to +85°C temperature range.
Features
- High-precision dual-axis tilt measurement with pitch ±90° and roll ±180° range.
- RS485 digital interface with configurable baud rates from 2400 to 115200 for industrial system integration.
- Advanced non-linear, quadrature, and gyro drift compensation for stable, accurate readings in motion.
- Rugged design with an operating temperature range of -40°C to +85°C for harsh environments.
- Compact form factor (55mm x 37mm) with low power consumption (max 40mA).
Out of stock
The BWSENSING VG50 Digital Dynamic Inclination Sensor utilizes MEMS inertial sensing technology combined with sophisticated signal processing algorithms to deliver precise attitude data. It is engineered to maintain accuracy during motion through real-time non-linear and quadrature compensation, effectively minimizing cross-axis errors and signal drift.
Its robust RS485 communication protocol ensures reliable data transmission over extended distances, making it suitable for integration into distributed control systems, PLCs, and data acquisition units. The sensor’s wide operating voltage and temperature tolerance, coupled with its IP-rated construction (implied by operating range), provide dependable performance in demanding applications such as mobile machinery, autonomous vehicles, and offshore platforms.
Additional Information
| Weight | 0.25 kg |
|---|---|
| Dimensions | 5.5 × 3.7 cm |
