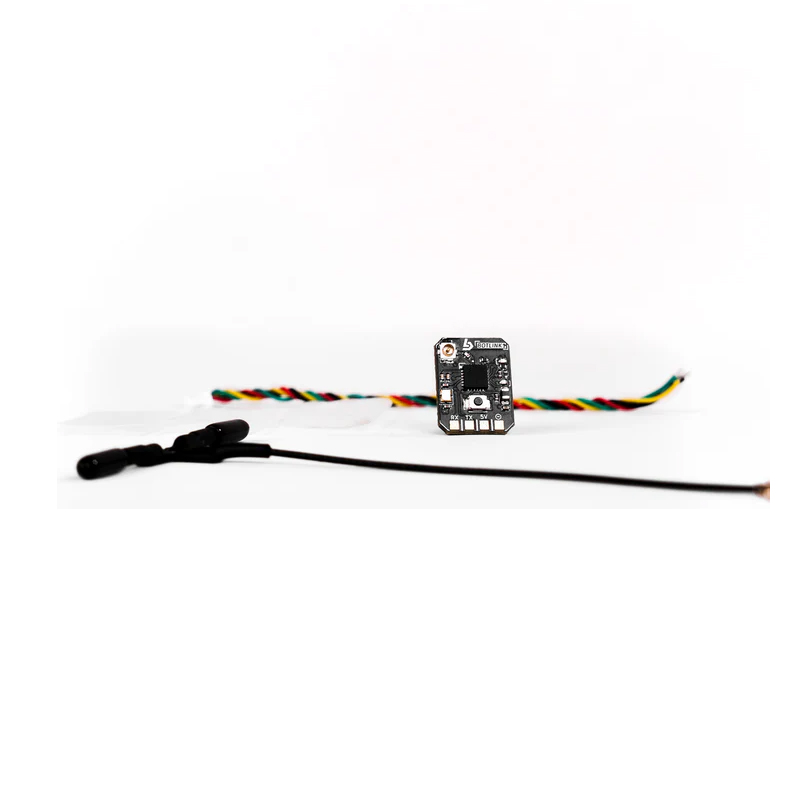

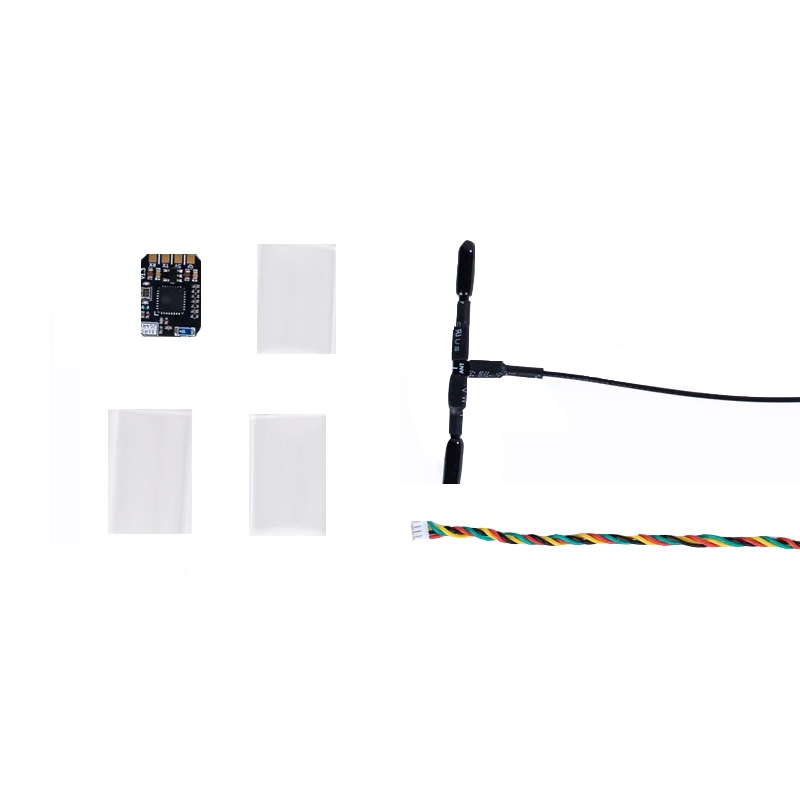

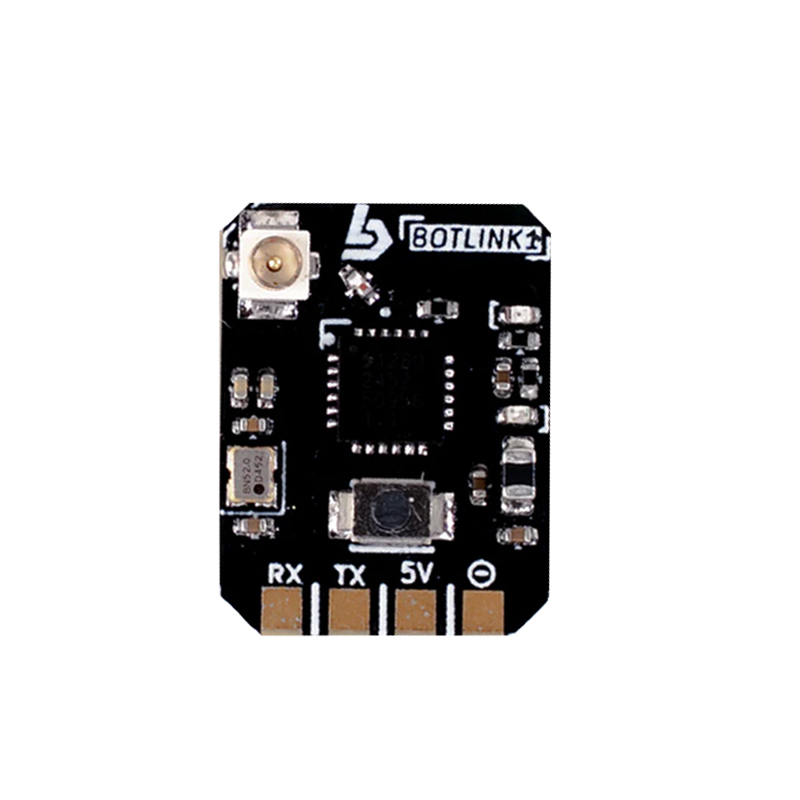

BotLink Express LRS 2.4GHz Receiver V1
The BotLink Express LRS 2.4GHz Receiver V1 is a compact, high-performance long-range receiver designed for FPV drones and RC models. Built on the ESP32-C3 MCU and SX1280 RF chip, it supports the ExpressLRS protocol for ultra-low latency communication up to 500Hz, ensuring precise control and reliable telemetry feedback.
Features
- ESP32-C3 MCU and SX1280 RF chip for efficient processing and robust 2.4GHz communication.
- Supports ExpressLRS protocol with up to 500Hz packet rate for ultra-low latency and high-resolution control.
- Wide frequency range (2.400–2.479GHz) with 10mW telemetry output for reliable long-range link stability.
- Compact 17x13mm form factor and lightweight 4g design fits easily into standard flight controller stacks.
- Plug-and-play UART interface with DFU/UART boot mode for straightforward firmware updates via Betaflight or ExpressLRS Configurator.
Out of stock
The BotLink Express LRS 2.4GHz Receiver V1 leverages the powerful ESP32-C3 microcontroller and the SX1280 LoRa RF chipset to deliver a high-performance, long-range control link for FPV drones and RC aircraft. Its implementation of the open-source ExpressLRS protocol ensures packet rates up to 500Hz, providing pilots with exceptional control accuracy, minimal latency, and robust signal penetration in challenging RF environments.
Engineered for reliability, the receiver operates across the full 2.400–2.479GHz ISM band and features a dedicated 10mW telemetry downlink, offering consistent feedback on link quality and model status. Its compact, lightweight design minimizes impact on the aircraft’s center of gravity and power system, making it an ideal choice for weight-sensitive builds.
Additional Information
| Weight | 0.004 kg |
|---|---|
| Dimensions | 1.7 × 1.3 cm |
