Bosch BNO055 9-Axis Absolute Orientation Sensor - I2C/UART Interface
The Bosch BNO055 is an intelligent 9-axis absolute orientation sensor integrating a 14-bit accelerometer, 16-bit gyroscope, and 3-axis magnetometer with an on-chip 32-bit microcontroller running BSX3.0 sensor fusion software. It provides calibrated, fused orientation data via I2C or UART interfaces, simplifying integration for robotics, AR/VR, and IoT platforms operating from 2.4V to 3.6V.
Features
- Integrated 9-axis motion sensing: 14-bit accelerometer, 16-bit gyroscope, and 3-axis geomagnetic sensor
- On-chip 32-bit microcontroller with Bosch BSX3.0 sensor fusion library for real-time absolute orientation output
- Compact System-in-Package (SiP) design simplifies complex multi-sensor system integration
- Dual digital interfaces: I2C (up to 400 kHz) and UART for flexible host microcontroller communication
- Wide operating temperature range from -40°C to +85°C for robust industrial and outdoor applications
Out of stock
The Bosch BNO055 is a complete inertial measurement unit (IMU) that fuses raw data from its triaxial accelerometer, gyroscope, and magnetometer using an embedded 32-bit ARM Cortex-M0 microcontroller. The proprietary BSX3.0 FusionLib software performs sensor calibration, compensation for hard/soft iron effects, and dynamic motion processing to output stable quaternion, Euler angle, and linear acceleration vectors without requiring external processing.

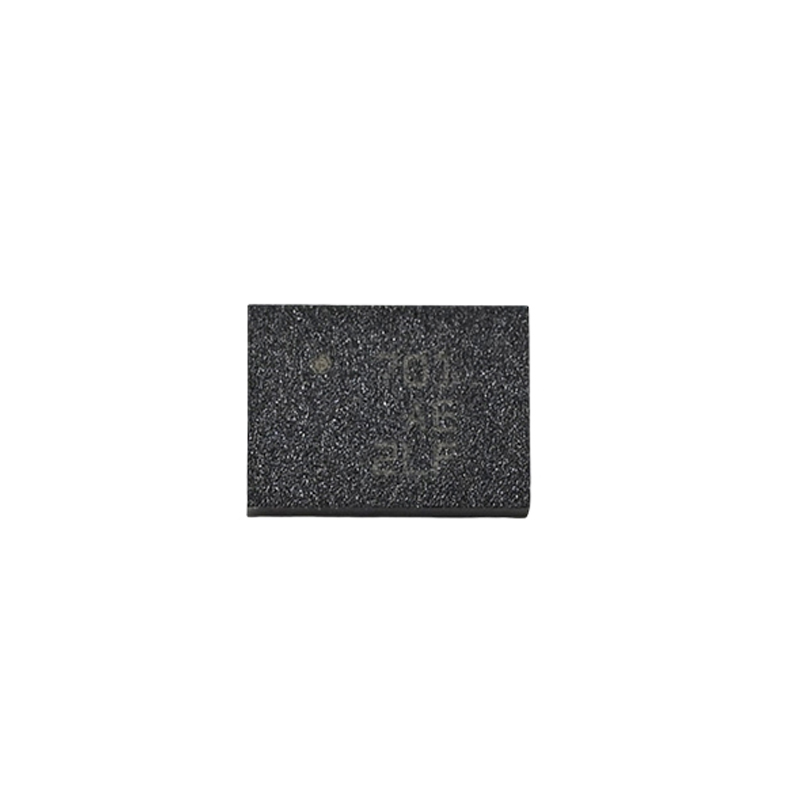

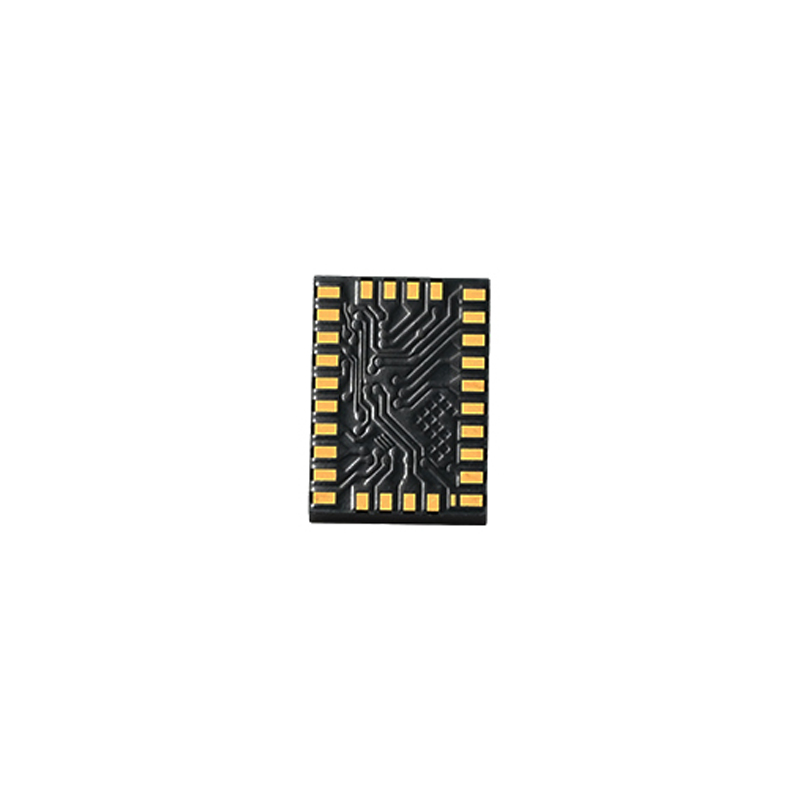

This sensor’s System-in-Package (SiP) architecture encapsulates the MEMS sensors, microcontroller, and firmware in a single 3.8×3.8×1.1 mm LGA package, minimizing board space and electromagnetic interference. It is designed for applications demanding precise spatial orientation and context awareness, such as robotic navigation, augmented reality headsets, and UAV stabilization systems, across an extended industrial temperature range.
Additional Information
| Weight | 0.00002 kg |
|---|---|
| Dimensions | 0.38 × 0.38 × 0.11 cm |
