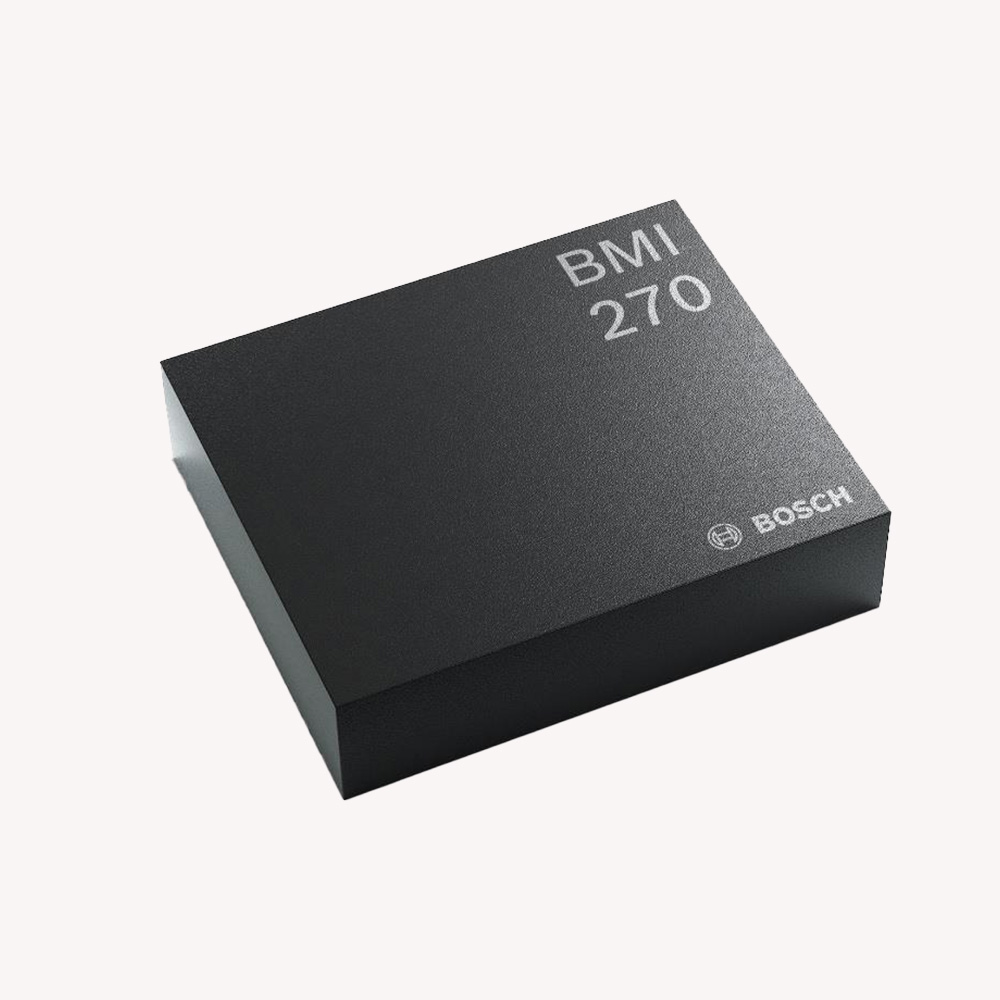

Bosch BMI270 6-Axis IMU Motion Sensor, 16-Bit Accelerometer & Gyroscope, ±2/4/8/16g, ±125–2000°/s, I²C/SPI
The Bosch BMI270 is a high-performance 6-axis Inertial Measurement Unit (IMU) integrating a 16-bit digital accelerometer and gyroscope in a compact LGA-14 package. It offers configurable sensing ranges (±2g to ±16g, ±125°/s to ±2000°/s) and communicates via I²C or SPI, making it ideal for advanced motion tracking in drones, robotics, and wearable devices.
Features
- Integrated 16-bit triaxial accelerometer (±2g, ±4g, ±8g, ±16g) and gyroscope (±125°/s to ±2000°/s).
- Dual digital interface support: I²C (up to 3.4 MHz) and SPI (up to 10 MHz) for flexible system integration.
- Ultra-low power consumption with advanced power management and motion-triggered interrupt features.
- Compact 2.5 x 3.0 x 0.83 mm LGA-14 package for space-constrained PCB designs.
- Programmable low-pass filters and rapid 2 ms startup time for performance-critical applications.
Out of stock
The Bosch BMI270 is a MEMS-based 6-axis inertial measurement unit designed for precise motion sensing and analysis. It combines a high-resolution 16-bit accelerometer and gyroscope on a single chip, providing accurate linear acceleration and angular rate data. The sensor features intelligent on-chip signal processing, including programmable low-pass filters to reduce noise and motion artifacts.
Engineered for low-power operation, the BMI270 includes sophisticated power management modes and motion-triggered interrupts to minimize system wake-up times and extend battery life in portable applications. Its robust digital core ensures stable performance across a wide supply voltage range from 1.2V to 3.6V, supporting compatibility with modern microcontrollers and processors.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 5 × 5 × 2 cm |
