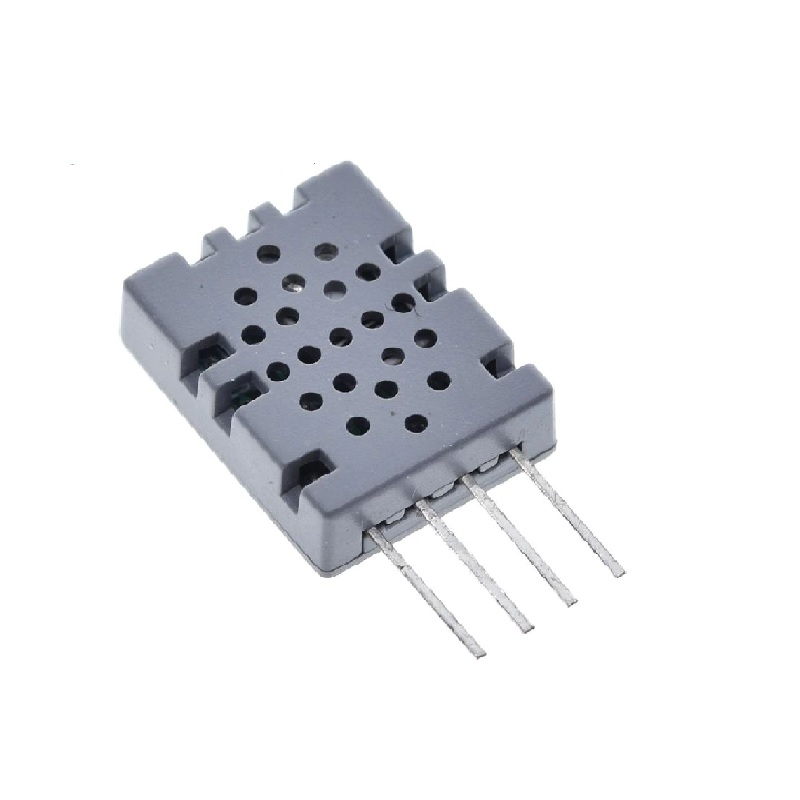

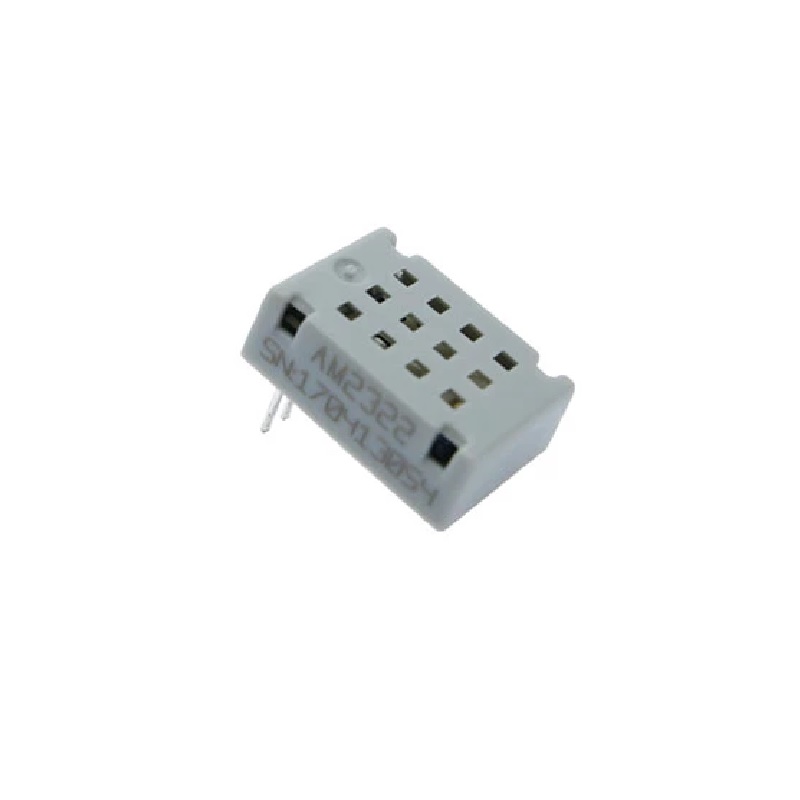

Asair AM2322 Digital Temperature & Humidity Sensor - I2C & Single-Bus Interface
The Asair AM2322 is a fully calibrated digital temperature and humidity sensor module compatible with both I2C and single-bus communication protocols, designed for integration with microcontrollers like Arduino, Raspberry Pi, ESP32, and STM32.
Features
- Dual communication interface: Standard I2C and single-bus (1-Wire) protocols.
- Integrated high-precision temperature and capacitive humidity sensing elements.
- Fully calibrated digital output with temperature-compensated humidity readings.
- Low power consumption and signal transmission distance up to 20 meters.
- Compact form factor suitable for space-constrained embedded applications.
Out of stock
The AM2322 digital sensor combines a capacitive humidity sensing element and a high-precision integrated temperature sensor, connected to an onboard microprocessor. This integration ensures direct digital output of calibrated temperature and humidity values, eliminating the need for user-side signal conditioning or complex calculations.
Utilizing specialized signal acquisition technology, the module provides high reliability and excellent long-term stability. Its support for both I2C and single-bus interfaces offers flexibility for system integration, allowing direct connection to common microcontroller communication buses without additional components.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 8 × 7 × 1 cm |
