Asair AGP3000 Pirani Composite Vacuum Gauge - KF16 Interface, RS485 & 0-10V Output

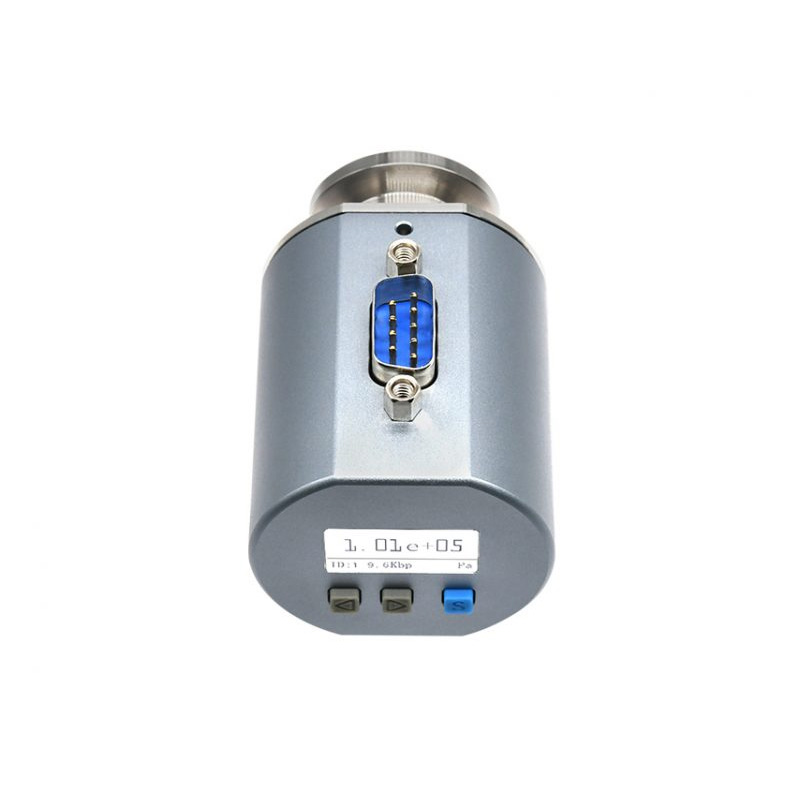

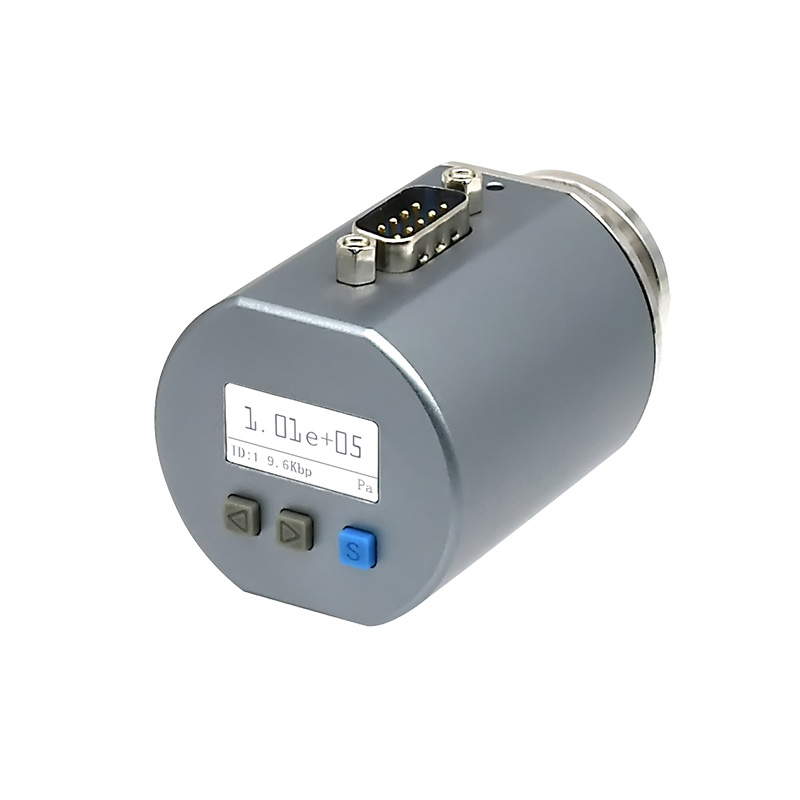

The Asair AGP3000 is a composite Pirani vacuum gauge designed for wide-range pressure measurement from 5×10⁻² Pa to 1.2×10⁵ Pa, integrating a MEMS Pirani chip with an advanced pressure sensor. It features a color TFT-LCD display, intuitive keypad controls, and provides both RS485 Modbus and 0-10V analog outputs for seamless integration with PLCs, data loggers, and industrial control systems.
Features
- Wide-range composite sensor measures from 5×10⁻² Pa to 1.2×10⁵ Pa (N₂ & Air).
- Dual output interfaces: RS485 Modbus communication and 0-10V analog voltage signal.

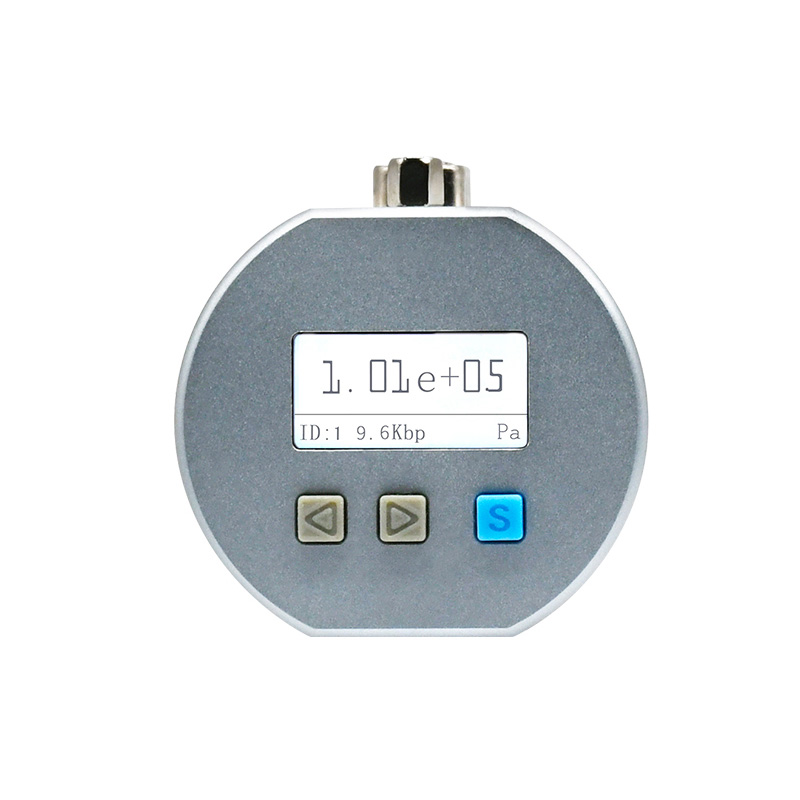

- High-visibility color TFT-LCD display with intuitive keypad for on-site operation.
- Fast response time of ≤100 ms for dynamic vacuum process monitoring.

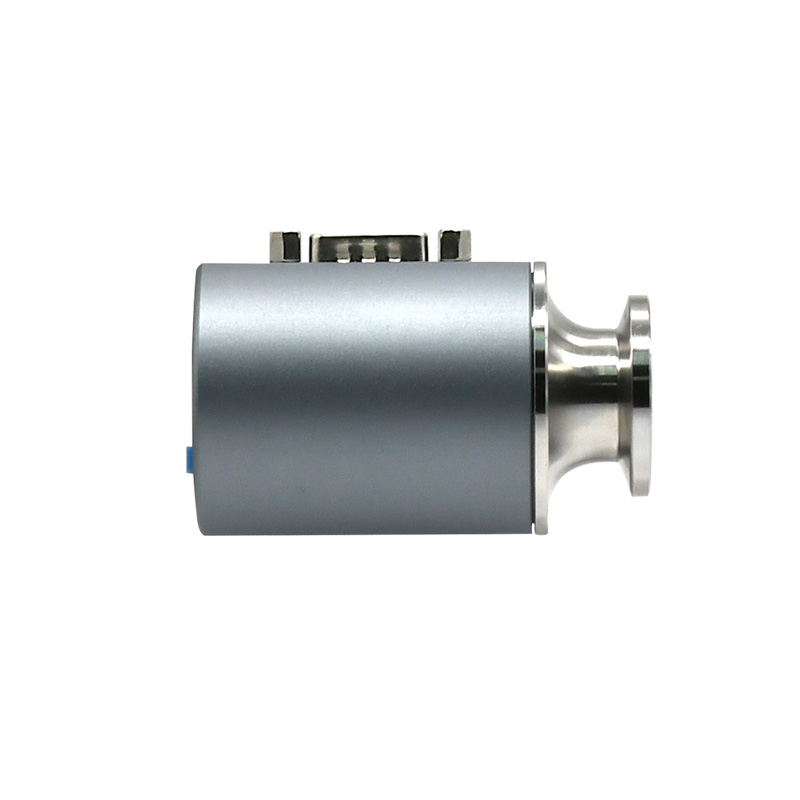

- Standard KF16 vacuum flange with optional adapters for G, RC, or NPT threads.
Out of stock
The AGP3000 Pirani Composite Vacuum Gauge employs a hybrid sensing approach, combining a MEMS Pirani sensor for low to medium vacuum with a complementary pressure sensor for higher pressures. This design ensures accurate and stable readings across an exceptionally wide dynamic range, from rough vacuum to near-atmospheric conditions. The integrated signal conditioning electronics provide a clean, linearized output suitable for direct connection to industrial automation systems.
Housed in a robust aluminum shell, the gauge is built for demanding industrial environments. It operates from a wide 9-28 VDC supply with low power consumption (<1.2W) and supports unit switching between Pa, Torr, and mbar directly from the front panel. Each unit undergoes factory calibration for precision, repeatability, and response time, guaranteeing reliable performance for critical vacuum applications.
Additional Information
| Weight | 0.3 kg |
|---|---|
| Dimensions | 17 × 17 × 8 cm |
