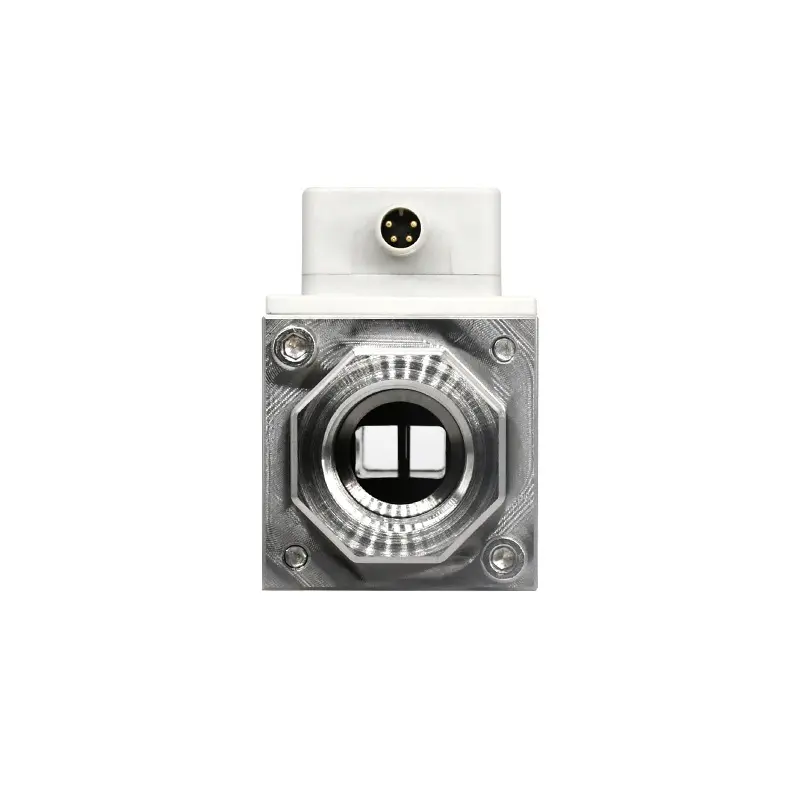

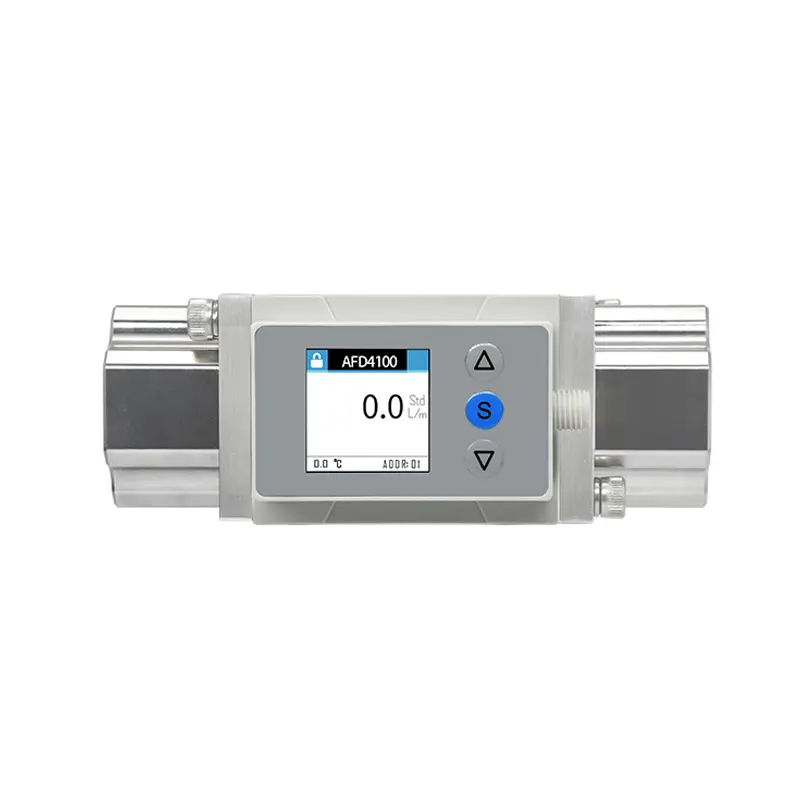

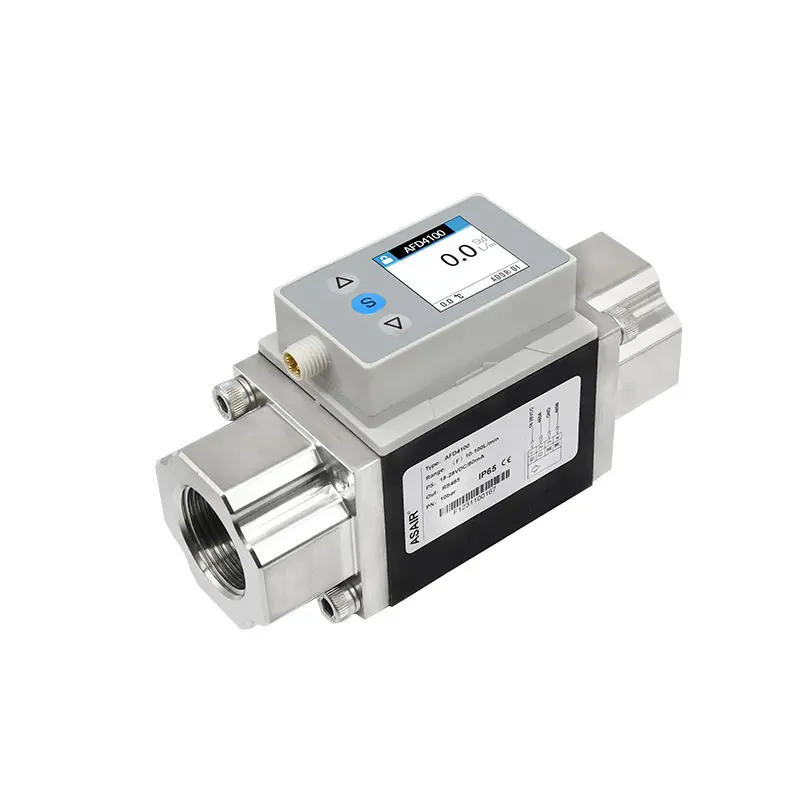

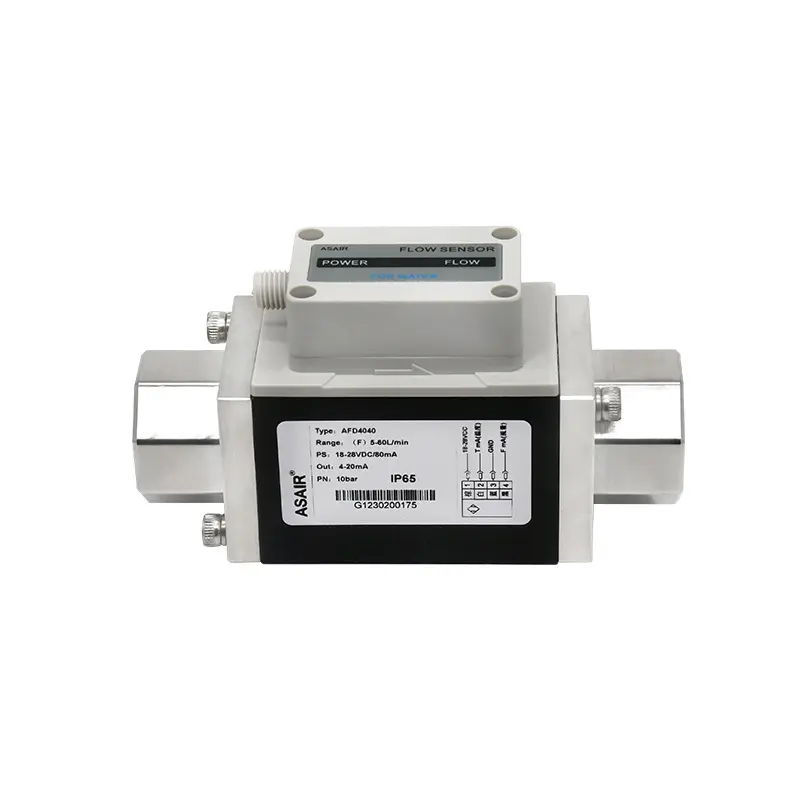

Asair AFD4040 Series Vortex Liquid Flowmeter - PPS & SUS304 Stainless Steel, G/RC/NPT Thread
The Asair AFD4040 Series is a vortex flow sensor designed for precise liquid flow measurement in industrial and commercial systems, compatible with PLCs and DAQ systems via 4-20mA or RS485 Modbus output.
Features
- Operates on the Von Karman vortex principle for stable, drift-free flow measurement.
- Constructed from durable PPS and SUS304 stainless steel for chemical and pressure resistance.
- Offers multiple flow ranges (2-16, 5-40, 10-100 L/min) and thread options (G, RC, NPT).
- Provides 4-20mA analog or RS485 Modbus digital output for flexible system integration.
- Rated for high-pressure environments with a maximum pressure of 16 bar.
Out of stock
The Asair AFD4040 Series Vortex Liquid Flowmeter utilizes the Von Karman vortex street principle. As fluid flows past a bluff body (spoiler column), alternating vortices are shed at a frequency proportional to the flow velocity. An internal piezoelectric or capacitive sensor detects this frequency, which the onboard chip converts into a precise volumetric flow rate signal.
Engineered for demanding liquid process control, the sensor’s PPS polymer and SUS304 stainless steel construction ensures long-term durability against corrosion, scaling, and high-pressure surges up to 16 bar. Its fast response time and immunity to drift make it suitable for continuous monitoring in HVAC, water treatment, chemical dosing, and industrial cooling systems.
Additional Information
| Weight | 0.62 kg |
|---|---|
| Dimensions | 17 × 17 × 8 cm |
