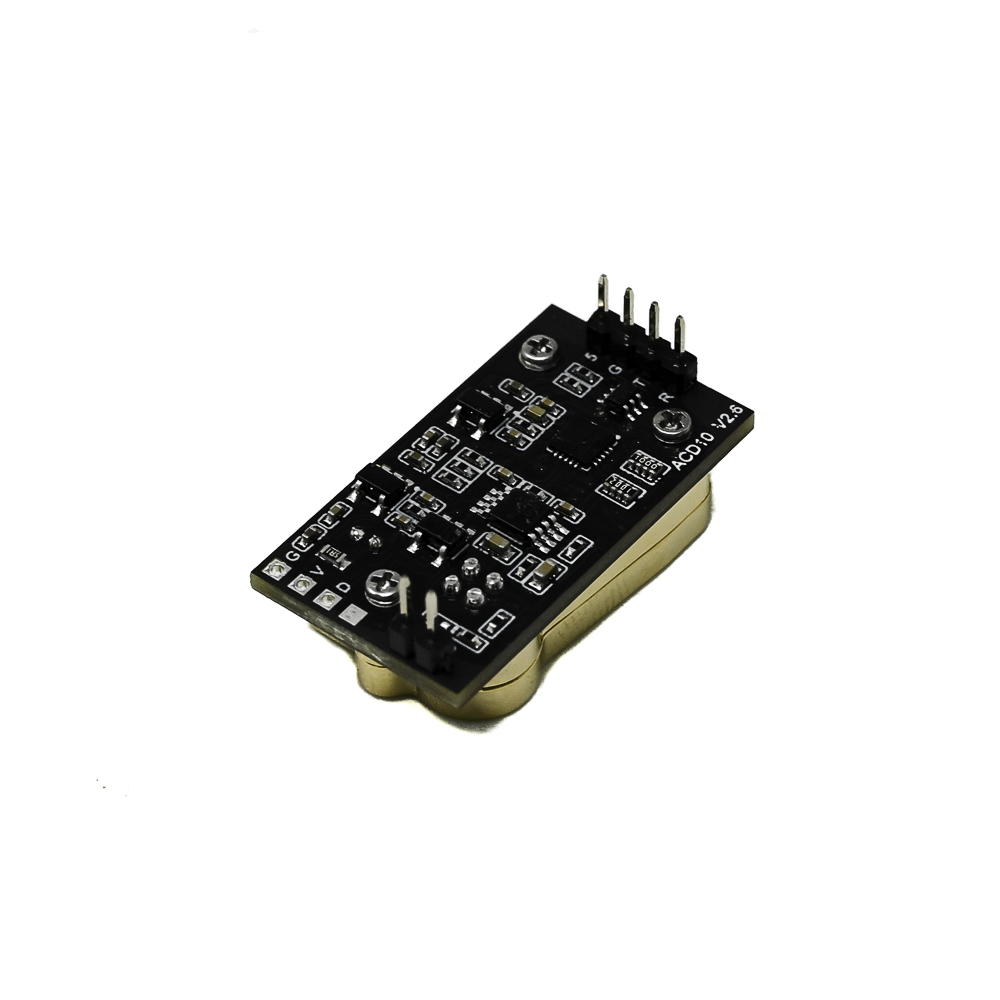

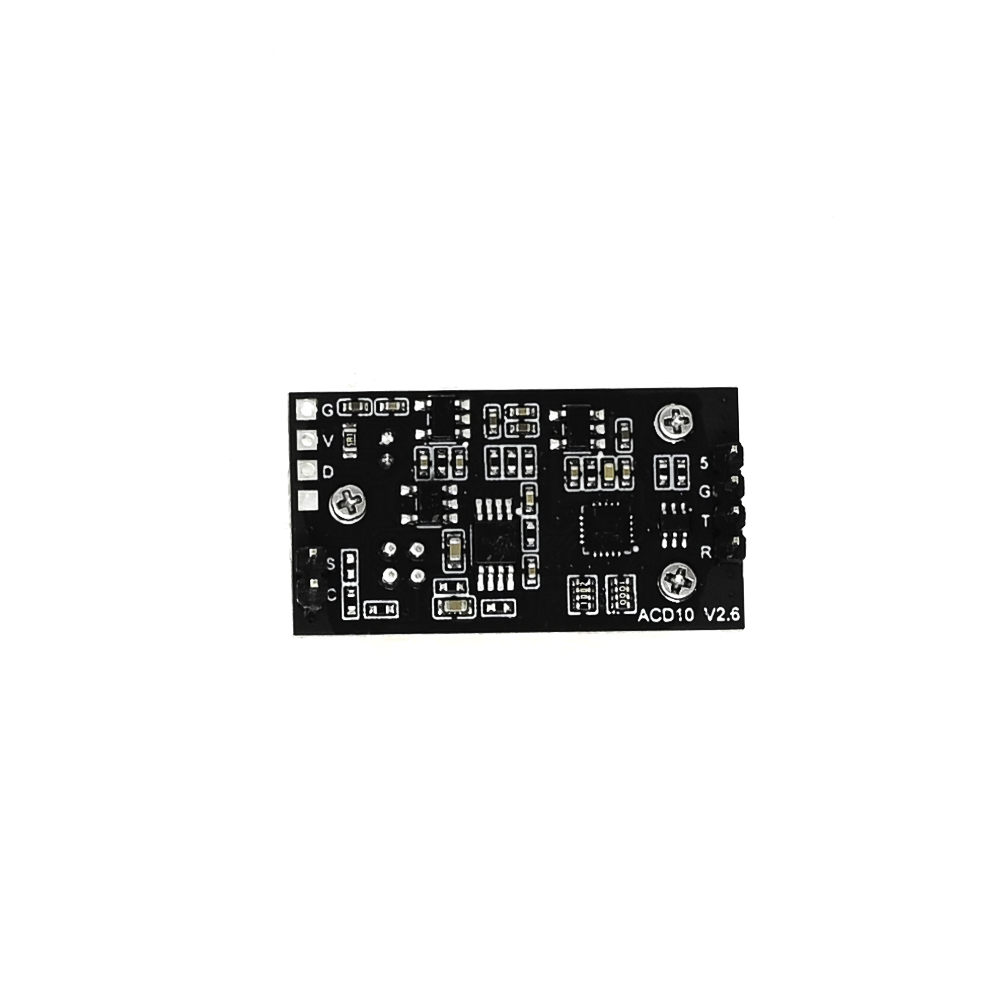

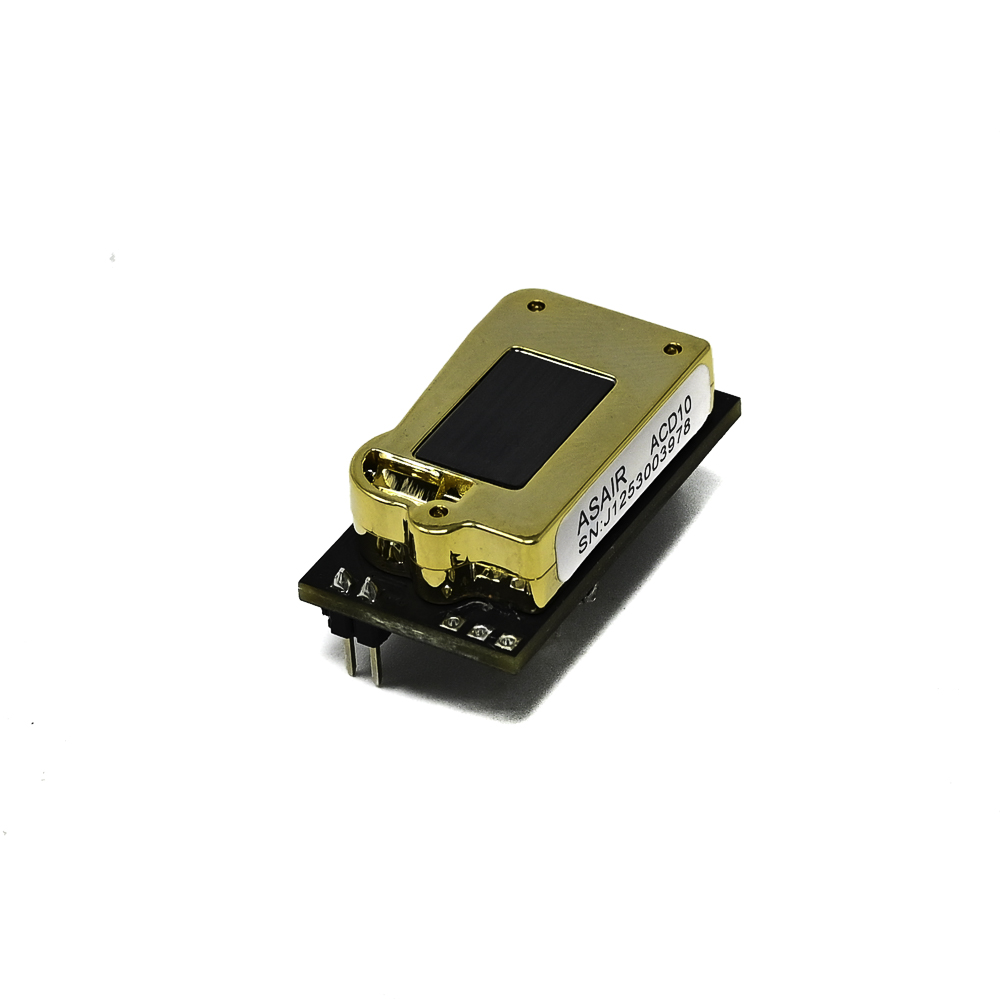

Asair ACD10 Infrared CO2 Gas Sensor Module - NDIR Digital Output
The Asair ACD10 is a compact NDIR (Non-Dispersive Infrared) CO2 sensor module offering a measurement range of 400–5000 ppm. It features a digital interface for easy integration with microcontrollers like Arduino, Raspberry Pi, and ESP32, operating from a 5V DC supply.
Features
- NDIR sensing principle for high selectivity and long-term stability
- Digital output interface for straightforward microcontroller connection
- Wide measurement range from 400 to 5000 ppm CO2
- Built-in temperature compensation for improved accuracy
- Low power consumption, typically 225mW at 5V
Out of stock
The Asair ACD10 CO2 sensor module employs Non-Dispersive Infrared (NDIR) technology to accurately detect carbon dioxide concentrations in ambient air. This method provides excellent selectivity, eliminating cross-sensitivity to other gases, and ensures a stable, long operational life without oxygen dependence. The module integrates a precise optical path and signal conditioning circuitry.
Designed for reliability, the ACD10 includes onboard temperature compensation to maintain accuracy across varying environmental conditions. Its digital output simplifies data acquisition, making it suitable for direct connection to common development platforms and industrial data loggers requiring precise air quality monitoring.
Additional Information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 6 × 8 × 1 cm |
