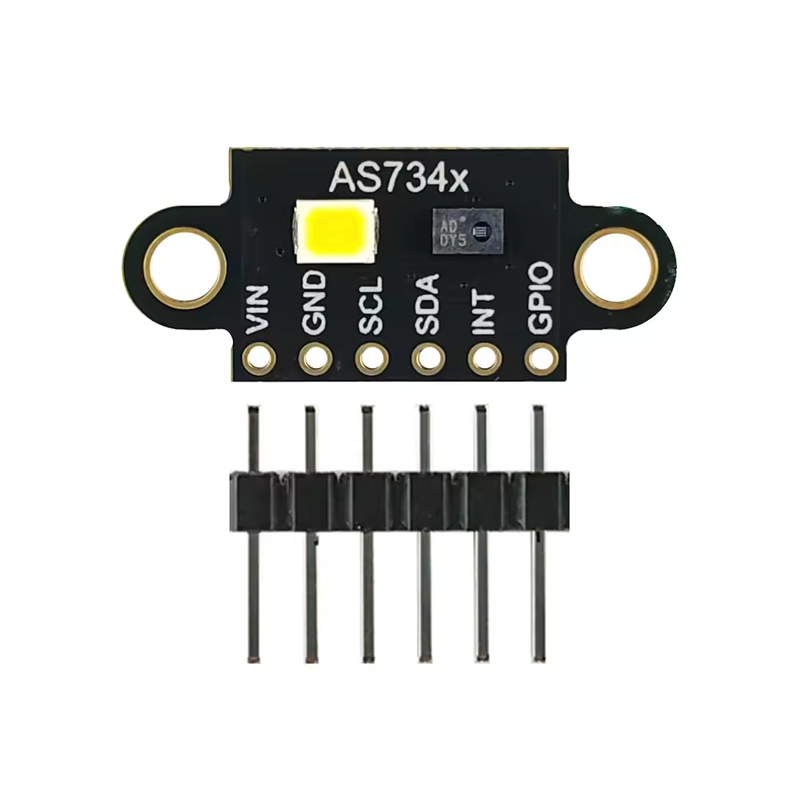

AS734x Visible Infrared Color Spectrometer Sensor Module - I2C Interface

The AS734x module requires a supply voltage between 2.7V and 3.6V. It is designed for direct compatibility with 3.3V logic systems commonly found on development boards like Arduino, Raspberry Pi, and ESP32. Do not apply 5V directly to the VCC pin.

Communication is handled via the standard I2C serial interface. The module supports clock speeds up to 400 kHz (Fast Mode). You will need to connect the SDA and SCL pins to your microcontroller, along with power and ground. The sensor's I2C address can typically be found in its datasheet.

The sensor covers a spectral range from 350 nm (ultraviolet edge) to 1000 nm (near-infrared). The '8-channel' feature means it has eight distinct optical filters and photodiodes, each sensitive to a specific band within this range, allowing for detailed spectral breakdown rather than a single broad measurement.

Yes, the AS734x chip includes a dedicated flicker detection function. This feature can identify the modulation frequency of AC-powered light sources (like 50Hz or 60Hz flicker), which is useful for applications in lighting analysis and automatic detection of artificial light environments.

The module is a bare PCB sensor best suited for controlled indoor or prototyping environments. For harsh industrial or outdoor use, additional protective housing, conformal coating, and environmental sealing would be required to shield the electronics from moisture, dust, and physical damage.
