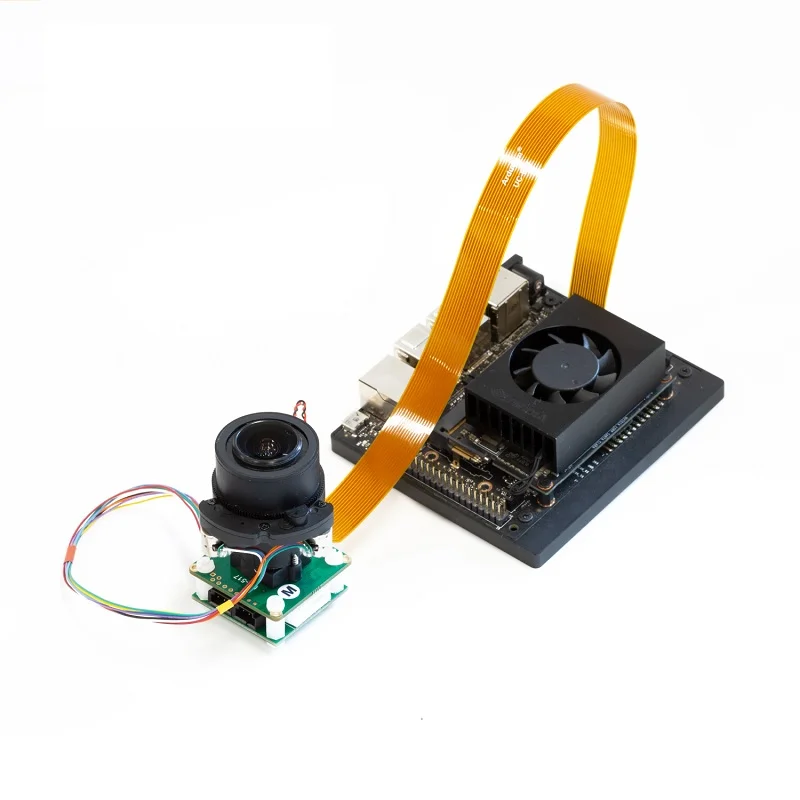

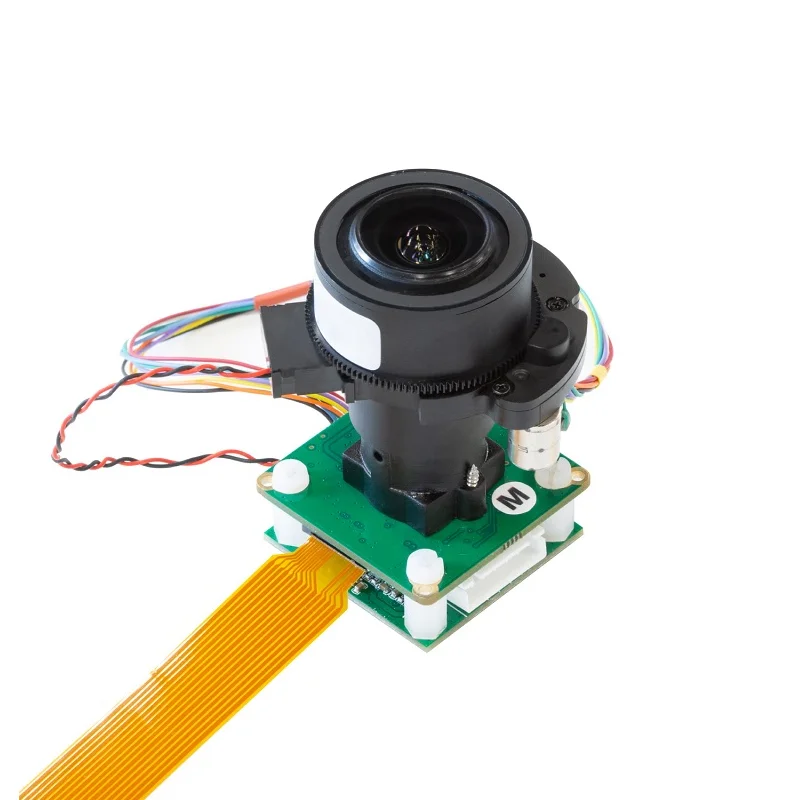

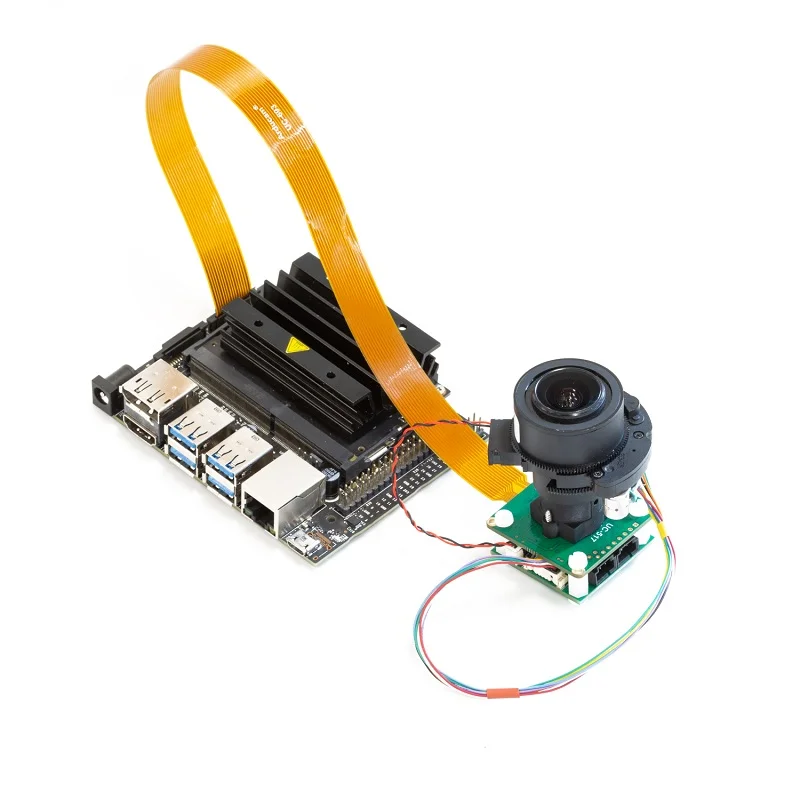

Arducam 12MP IMX477 Pan Tilt Zoom PTZ Camera w/ IR-Cut for Raspberry Pi & Jetson Nano
The Arducam PTZ Camera integrates a high-resolution 12MP Sony IMX477 sensor with a motorized pan-tilt-zoom lens and IR-Cut filter, providing a complete remote vision solution for Raspberry Pi 4/3B+/3 and Jetson Nano/Xavier NX platforms via MIPI interface.
Features
- 12MP Sony IMX477 Sensor: Delivers high-resolution 4056×3040 stills and 1080p60 video for detailed imaging and machine vision applications.
- Motorized Pan-Tilt-Zoom Lens: Enables remote directional and zoom control (4.38-10.71mm focal length), covering a 96° to 33° horizontal field of view.
- Day/Night IR-Cut Filter: Switchable IR-cut filter ensures sharp, color-accurate imaging in daylight and enhanced sensitivity in low-light conditions.
- Broad Platform Support: Compatible with Raspberry Pi 4/3B+/3 and NVIDIA Jetson Nano/Xavier NX via standard MIPI CSI-2 interface.

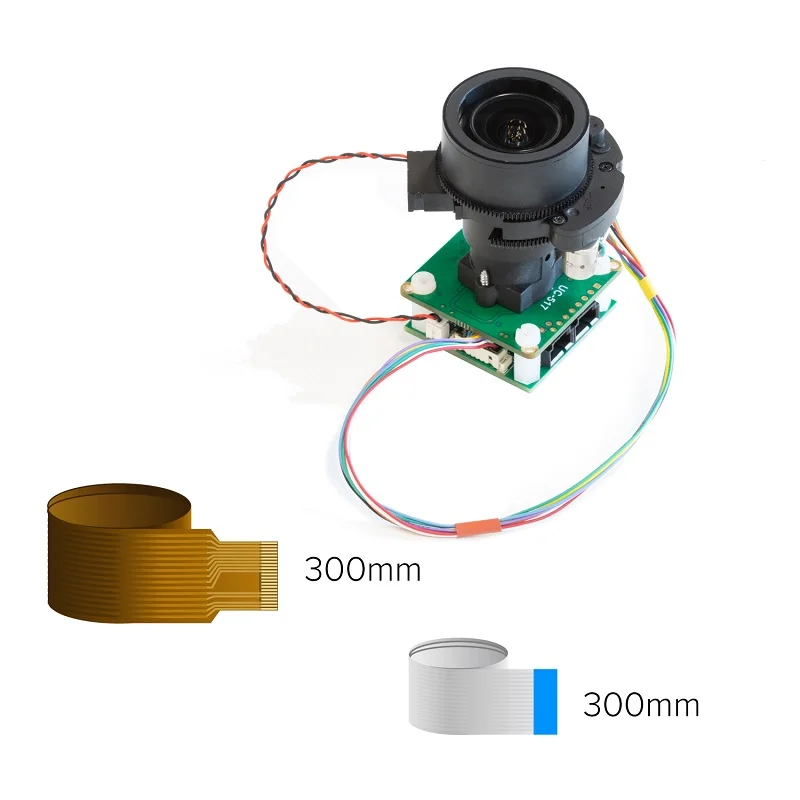

- Complete Development Kit: Includes assembled PTZ unit, control board, ribbon cables, and mounting hardware for rapid integration.
Out of stock
The Arducam PTZ Camera is a professional-grade, remotely controllable vision module designed for embedded AI and monitoring projects. It combines a 12.3-megapixel Sony IMX477 back-illuminated sensor with a precision motorized lens assembly, offering optical zoom and mechanical pan/tilt capabilities. This allows a single unit to surveil wide areas typically requiring multiple fixed cameras.
Its integrated IR-cut filter automatically switches based on lighting conditions, maintaining color fidelity during the day and maximizing infrared sensitivity at night. The module communicates via a standard MIPI CSI-2 interface, ensuring plug-and-play compatibility with popular single-board computers. The included control board manages the servo motors for lens movement, making it an ideal, cost-effective solution for developers building advanced security systems, wildlife monitoring, or robotic vision applications.
Additional Information
| Weight | 0.088 kg |
|---|---|
| Dimensions | 8 × 10 × 4 cm |
