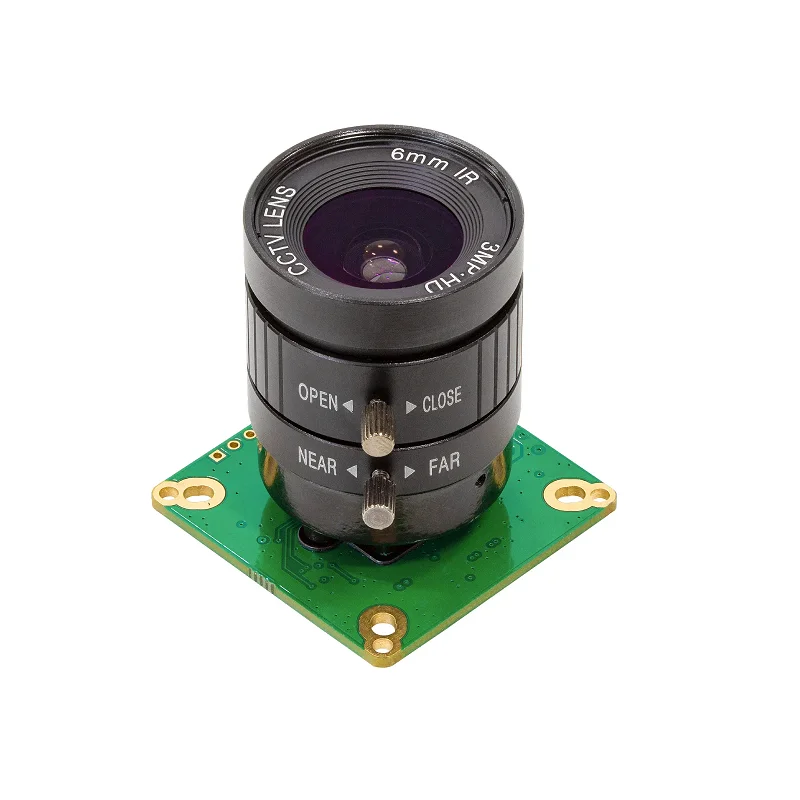

Arducam HQ Camera for Jetson Nano & Xavier NX, 12MP IMX477 with 6mm CS-Mount Lens
The Arducam HQ Camera is a high-resolution 12MP imaging module featuring a 1/2.3-inch Sony IMX477 sensor and a 6mm CS-mount lens, designed for NVIDIA Jetson Nano and Xavier NX developer kits to enable advanced computer vision, robotics, and AI applications.
Features
- 12MP Sony IMX477 Sensor: Delivers high-resolution 4056 x 3040 pixel images with 1.55µm large pixels for superior low-light performance and image quality.
- Jetson Nano & Xavier NX Compatible: Directly interfaces with NVIDIA’s AI developer platforms via a 22-pin FPC cable, enabling real-time computer vision and deep learning inference.

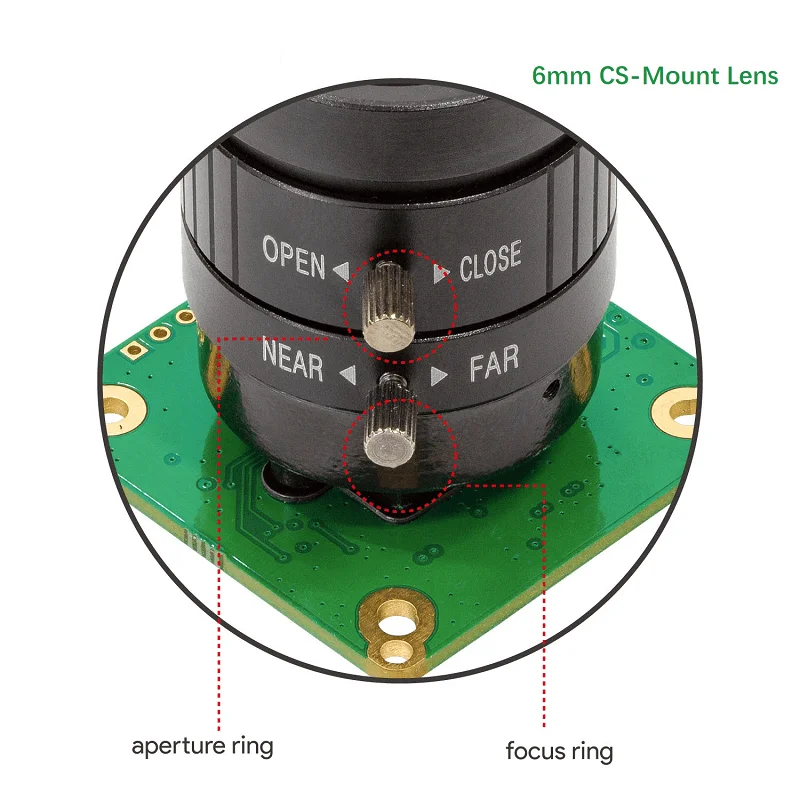

- 6mm CS-Mount Lens Included: Provides a 65° horizontal field of view, offering flexibility for machine vision, robotics, and surveillance applications.
- High-Quality Imaging Pipeline: Supports high frame rates and is ideal for time-lapse photography, object detection, and IoT machine learning projects.
Out of stock

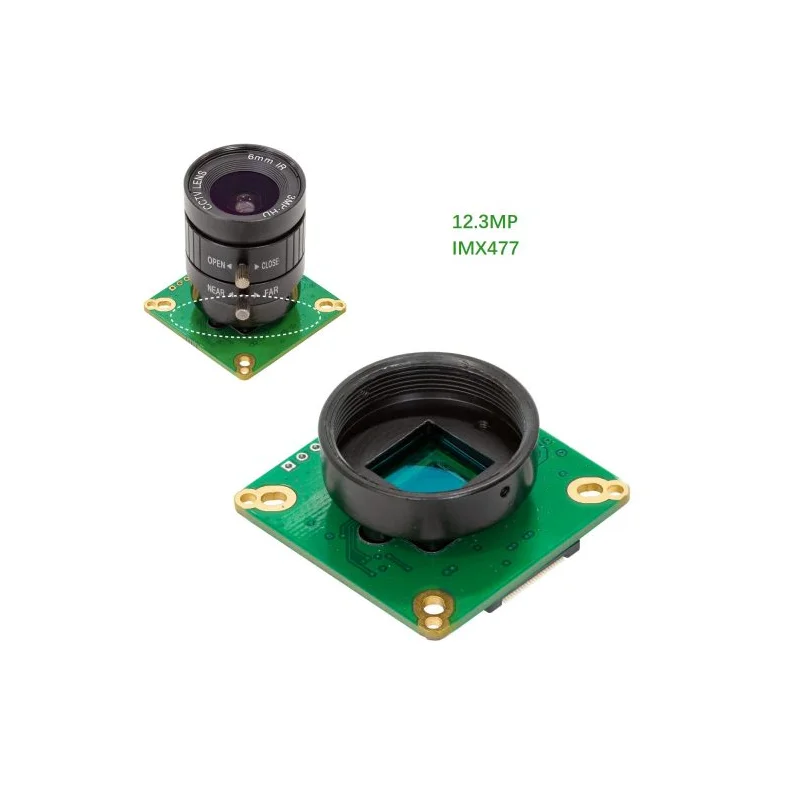

The Arducam HQ Camera module integrates a premium Sony IMX477 CMOS sensor, offering a significant upgrade in resolution and light sensitivity for embedded vision systems on the NVIDIA Jetson platform. Its 12.3-megapixel capability provides the detailed imagery required for advanced AI tasks such as object recognition, facial detection, and autonomous navigation.

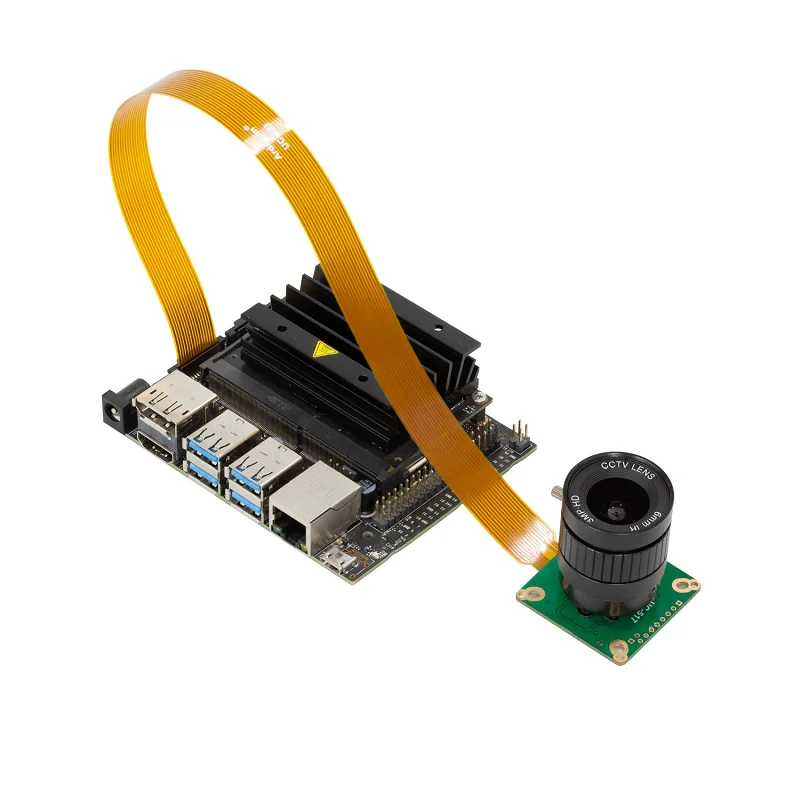

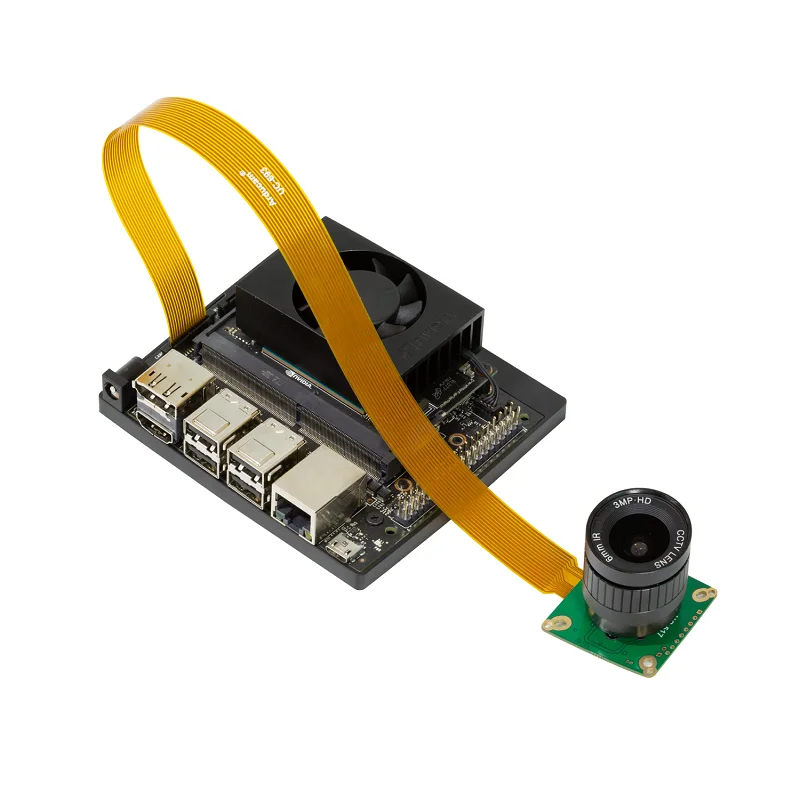

Designed specifically for the Jetson Nano and Xavier NX, this camera connects via a supplied 22-pin flexible printed circuit (FPC) cable, ensuring a reliable data link for high-bandwidth video streams. The included 6mm focal length CS-mount lens offers a standard field of view, while the CS-mount interface allows for lens interchangeability to suit various application focal length requirements, from wide-angle to telephoto.
Additional Information
| Weight | 0.075 kg |
|---|---|
| Dimensions | 3.8 × 3.8 cm |
