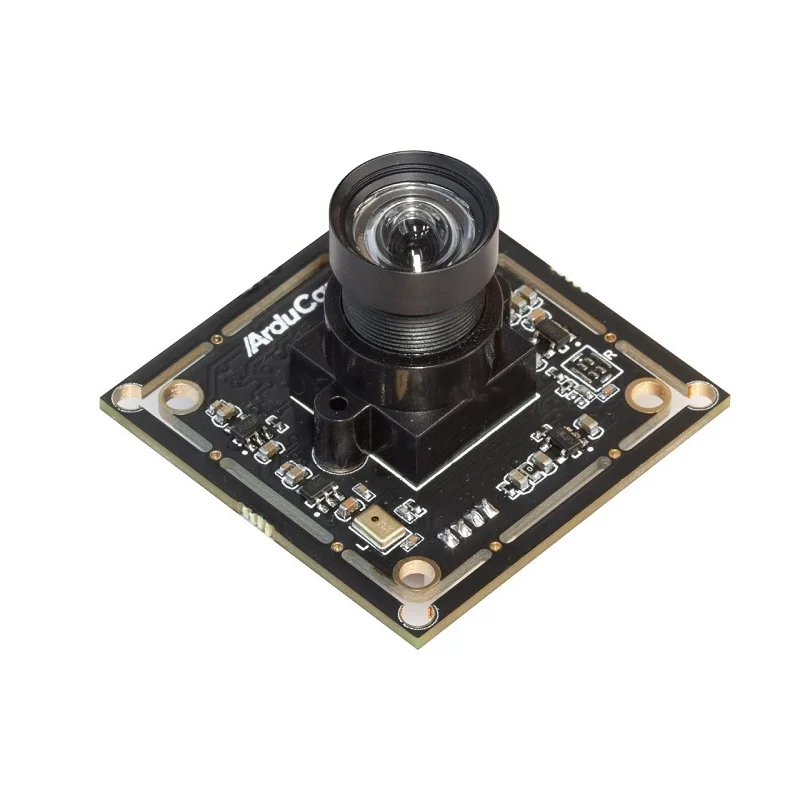

Arducam B0468 1080P Low Light USB Camera Module w/ Microphone

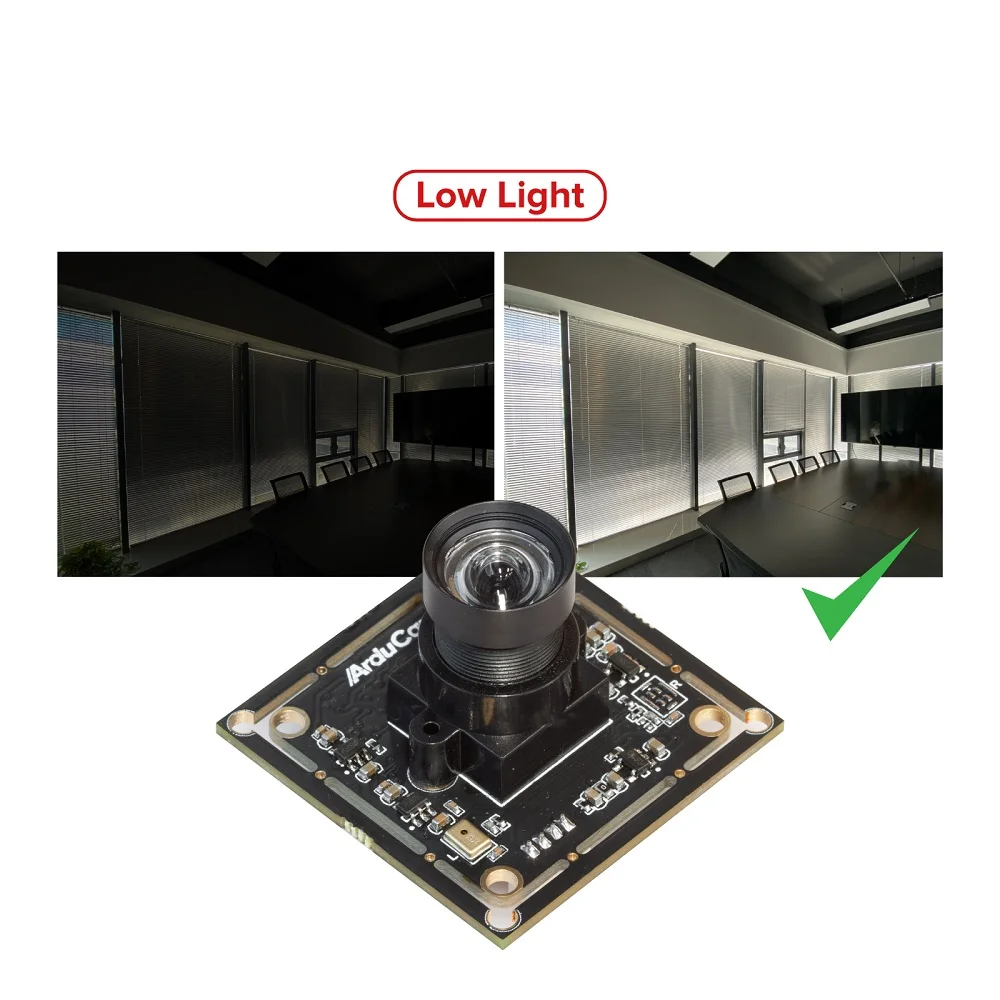

The Arducam B0468 is a plug-and-play USB 2.0 camera module featuring a 2MP IMX323 sensor for 1080P video capture at 30fps. It offers excellent low-light performance down to 0.01 Lux and includes an integrated microphone, making it ideal for machine vision, surveillance, and video conferencing on Windows, Linux, Mac, and Android systems.
Features
- 2MP IMX323 Sensor: Delivers 1080P video at 30fps with superior low-light sensitivity (0.01 Lux) for clear imaging in dim environments.
- Plug-and-Play USB 2.0: No drivers required for easy integration with Windows, Linux, Mac OS, and Android platforms.
- Low-Distortion M12 Lens: Features an 83° diagonal field of view with manual focus for accurate, wide-angle capture.
- Integrated Microphone: Built-in audio input simplifies setups requiring synchronized sound and video.
- Multi-Format Output: Supports MJPG, YUYV, and H.264 video compression for flexible streaming and recording applications.
Out of stock
The Arducam B0468 USB camera module is engineered for developers and integrators requiring a reliable, high-quality vision input. Its core is the Sony IMX323 CMOS sensor, a 1/2.9-inch optical format known for its excellent signal-to-noise ratio and 2.8µm pixel size, which collectively enable detailed 1920×1080 resolution capture even under challenging lighting conditions.

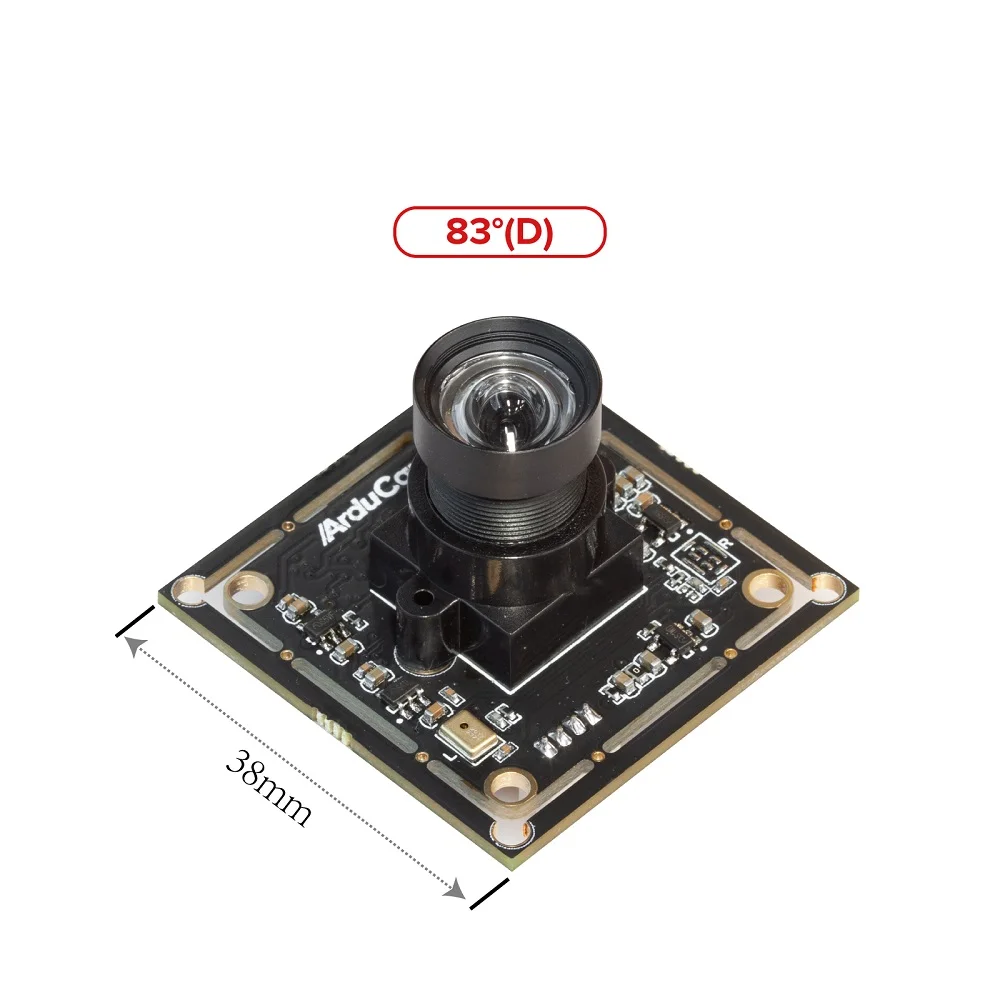

Designed for seamless system integration, the module communicates via a standard USB 2.0 interface, drawing power directly from the host. The fixed-focus, low-distortion lens with an M12 mount provides a consistent 83-degree field of view, minimizing edge warping for applications like optical measurement and robotic navigation. The board’s compact 38x38mm footprint allows for easy embedding into enclosures.
Additional Information
| Weight | 0.07 kg |
|---|---|
| Dimensions | 11 × 8 × 4 cm |
