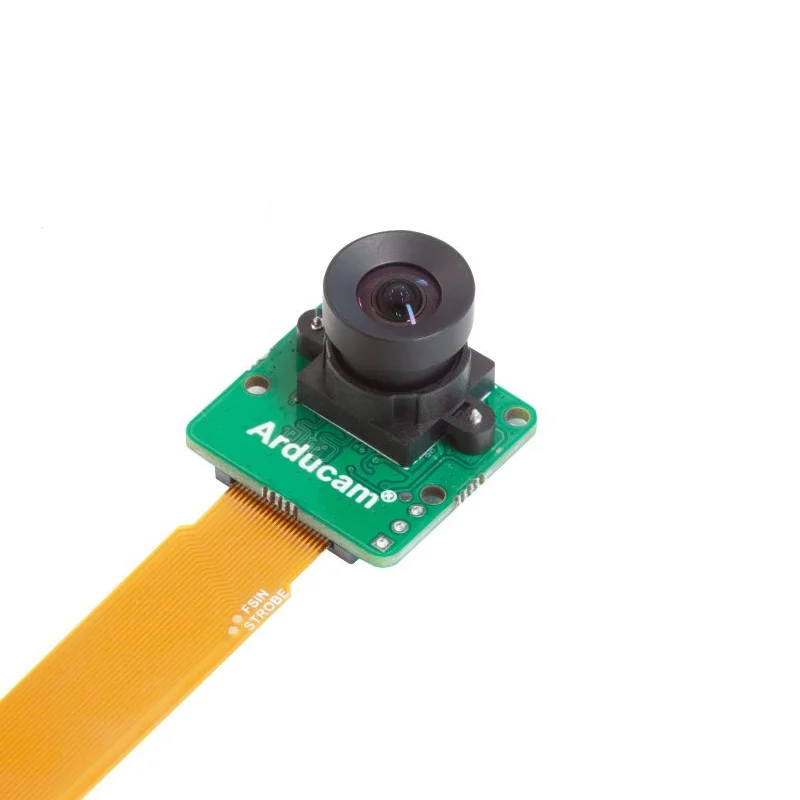

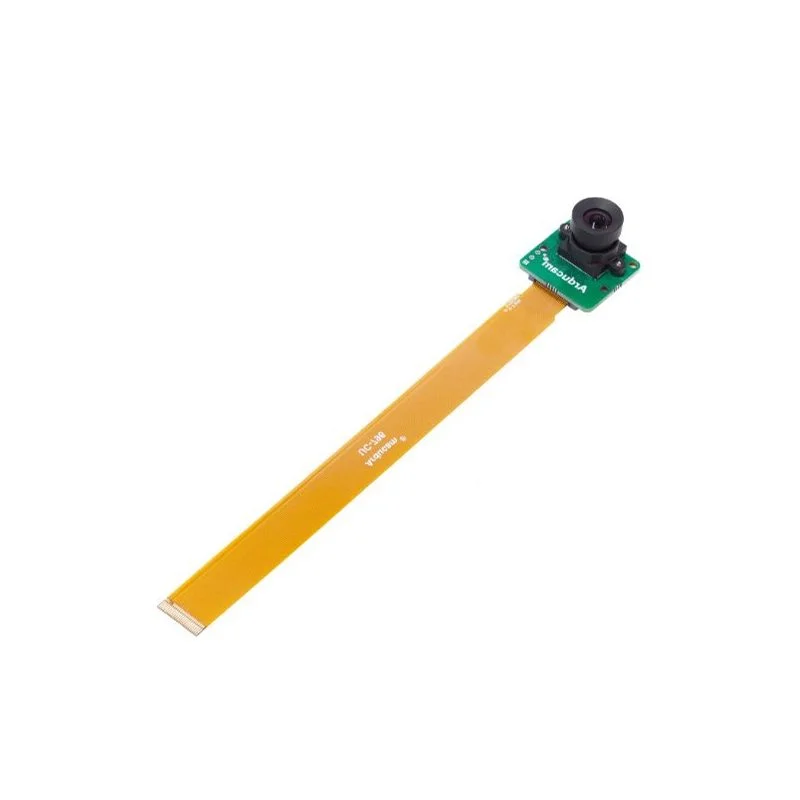

Arducam B0335 1MP OV9782 Global Shutter MIPI Camera for OAK-D M1090FFC

The global shutter in the OV9782 sensor captures the entire image frame at once, unlike a rolling shutter. This eliminates motion blur and distortion when imaging fast-moving objects, which is critical for applications like robotic vision, barcode scanning, and industrial inspection where temporal accuracy is paramount. It ensures all pixels are exposed simultaneously for a true snapshot in time.

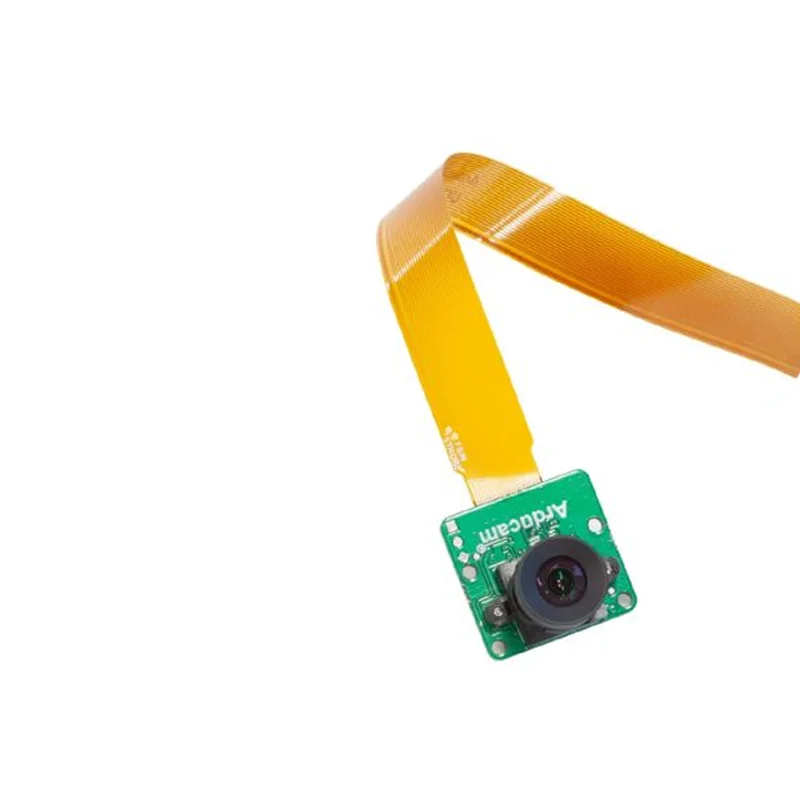

The module connects directly to the OAK-D M1090FFC's camera port via the included 150mm 22-pin to 26-pin FPC flex cable. Ensure the connector is aligned correctly and seated firmly. No additional drivers are typically needed when using the standard DepthAI API, as the OAK platform automatically detects and configures the camera for streaming and depth processing within your Python or C++ application.

Direct compatibility is designed for the Luxonis OAK-D platform due to its specific MIPI interface and pinout. Using it with a Raspberry Pi would require a compatible MIPI CSI-2 adapter and significant low-level driver development, as the signal protocol and power requirements are tailored for the Myriad X VPU. It is not recommended for Generic SBC use without dedicated hardware and firmware support.

The integrated IR-cut filter blocks infrared wavelengths from reaching the sensor, ensuring colors appear natural and accurate under visible light (daylight or artificial indoor lighting). This is essential for applications requiring true-color representation, such as object classification, augmented reality, and visual monitoring, where IR sensitivity would otherwise distort color fidelity and image contrast.

The primary framework is Luxonis's DepthAI SDK, which provides Python and C++ APIs for stereo depth calculation, neural network inference, and camera streaming. You can also use OpenCV for basic image processing once the feed is captured. The camera works seamlessly within the DepthAI ecosystem, allowing integration with OpenVINO and custom neural networks deployed on the OAK-D's onboard Myriad X processor for real-time edge AI.
