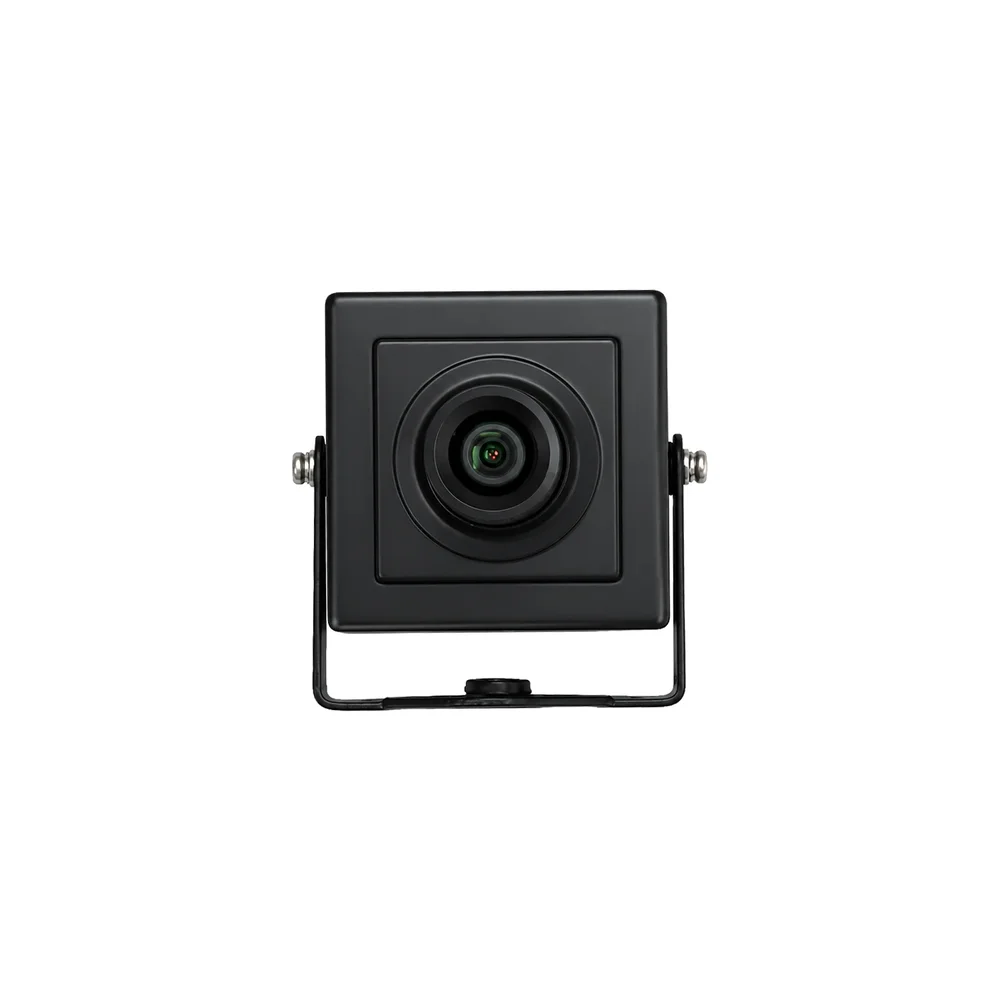

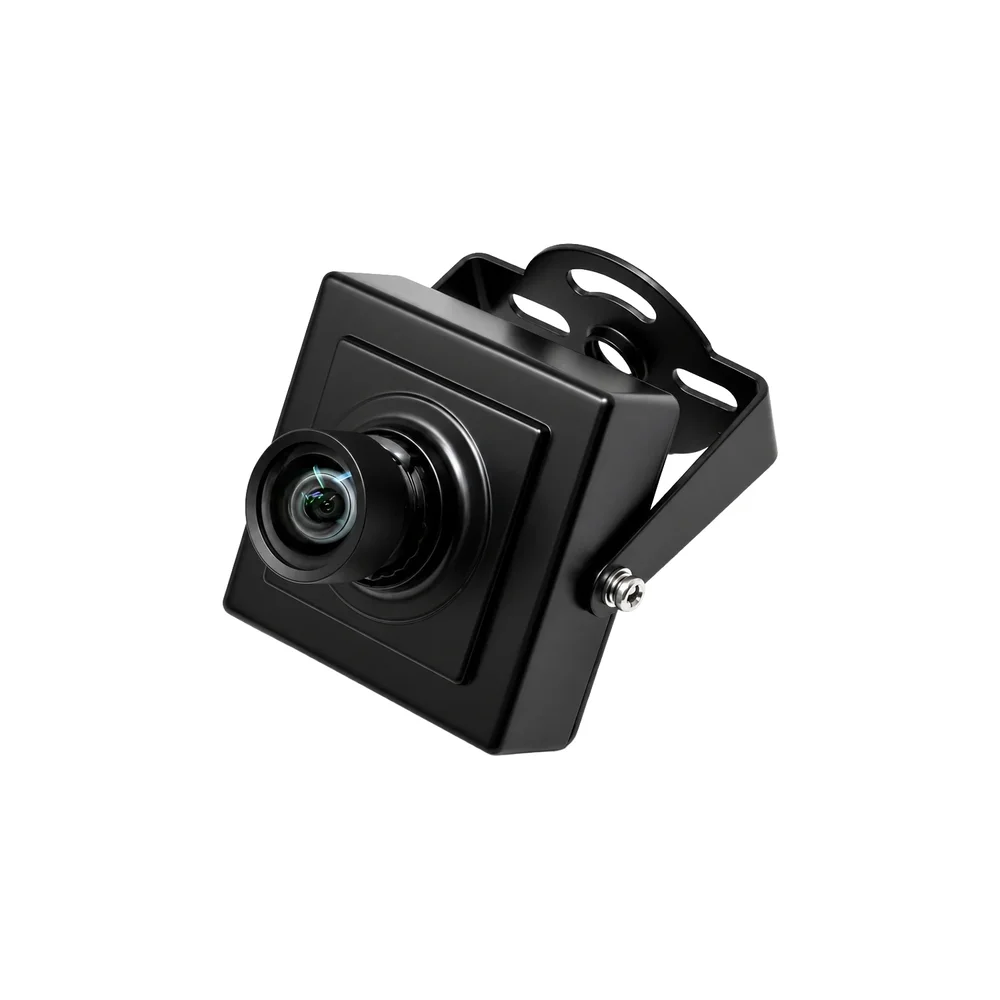

Arducam 8MP HDR USB Camera Module with 115° M12 Lens

The camera is fully UVC (USB Video Class) compliant, making it plug-and-play compatible with Windows, Linux, Android, and macOS. No additional drivers are required; it will be recognized as a standard webcam upon connection. You can use it with any software that accesses a standard video feed, such as OpenCV, VLC, or OBS Studio.

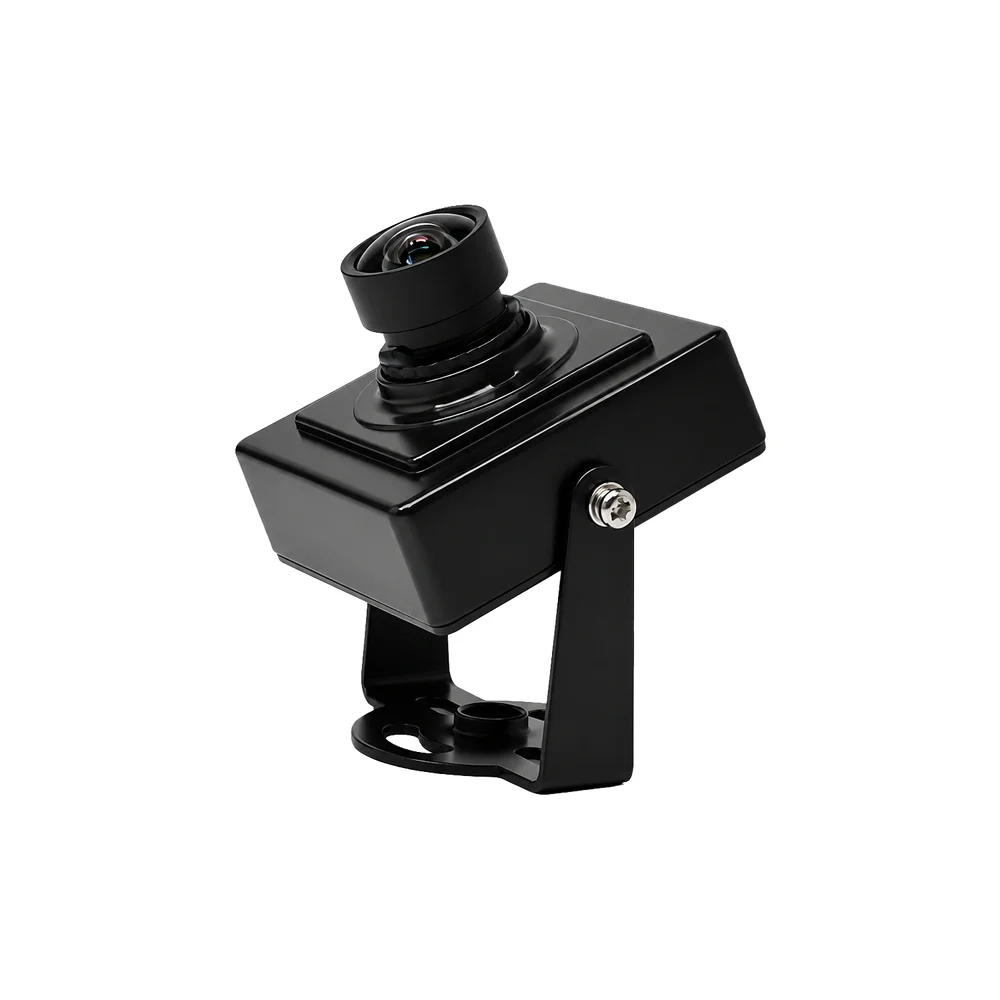

Yes, the module features a standard M12xP0.5 lens mount thread, allowing you to swap the included 115° wide-angle lens for other M12 lenses with different focal lengths or apertures. This provides flexibility for applications requiring telephoto, macro, or low-light optimized optics. Ensure any replacement lens is designed for a 1/3.2" sensor format.

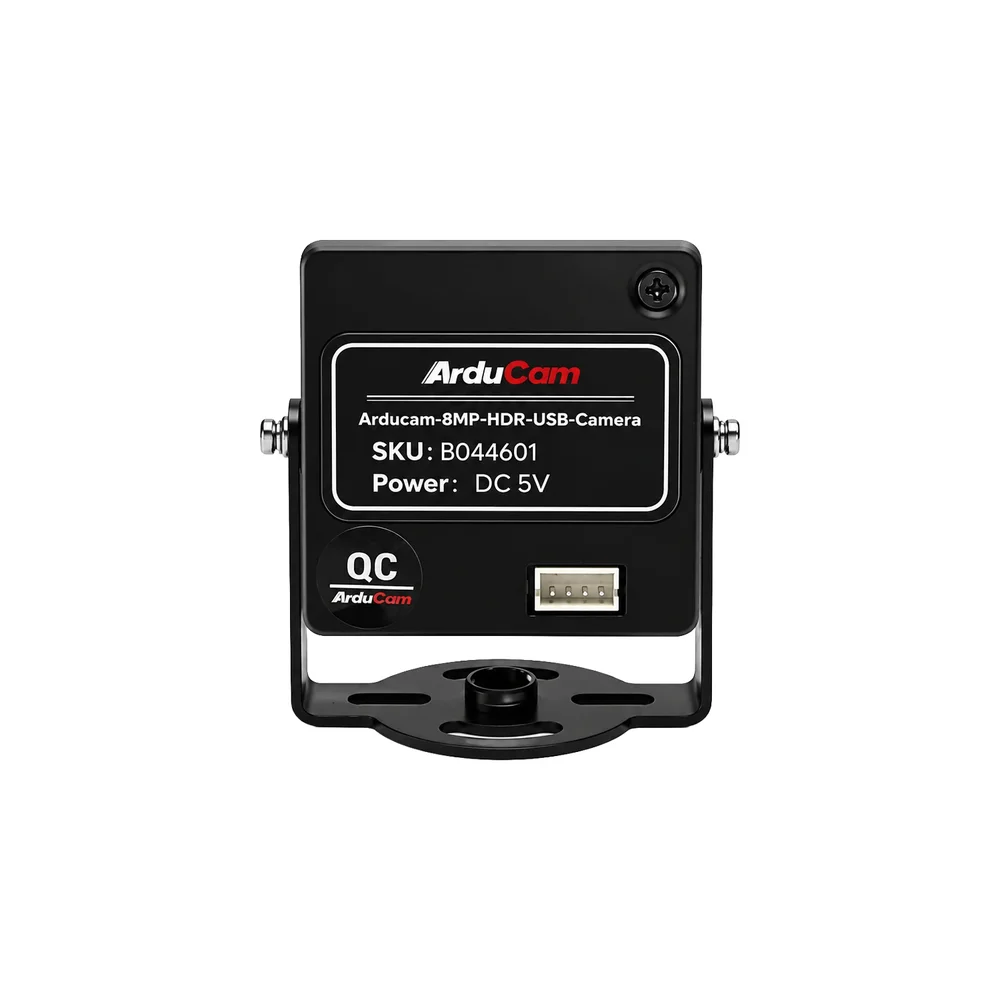

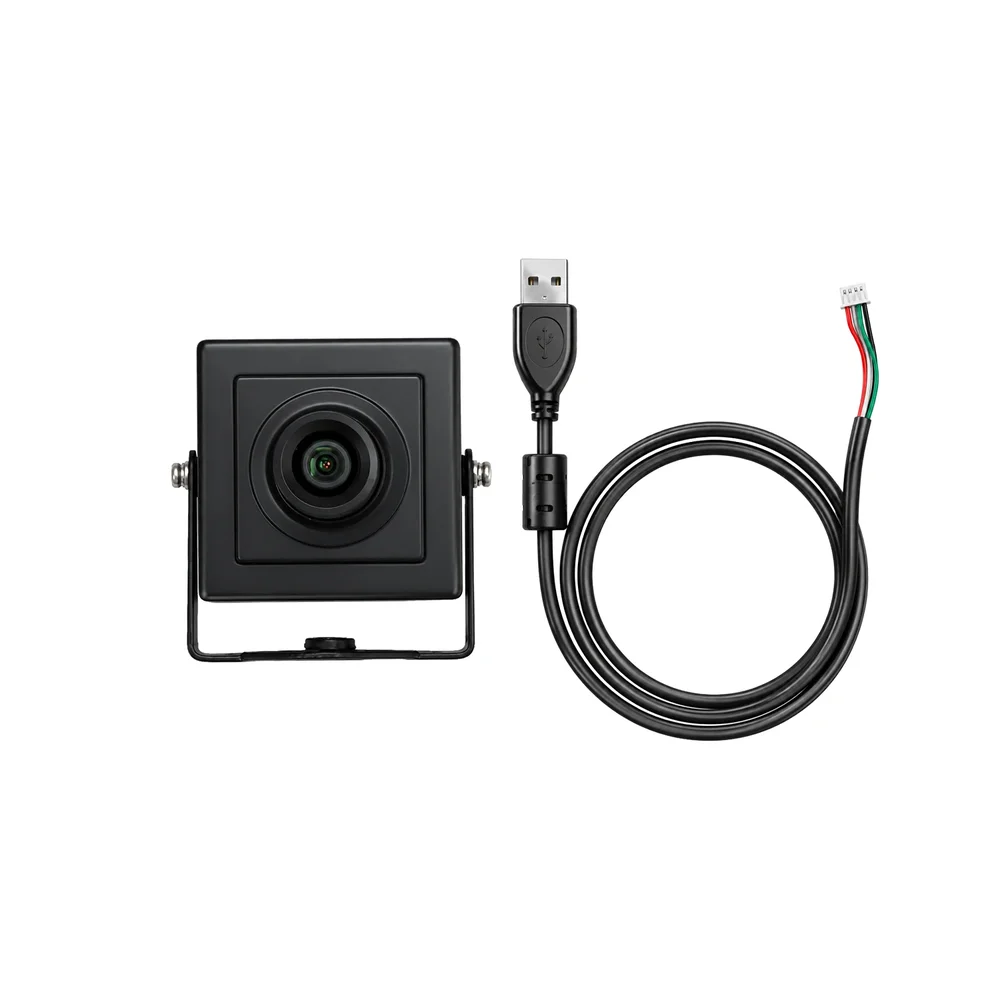

The module operates on 5V DC supplied directly through its USB 2.0 Type-B (B4B-ZR) connector. It draws a maximum current of 300mA, which is within the standard USB 2.0 specification. Simply connect it to a USB port on your computer, single-board computer (like Raspberry Pi), or a powered USB hub. No external power adapter is needed for typical operation.

You can use any application that supports UVC cameras. For development, popular libraries include OpenCV (Python/C++), PyGame, or GStreamer. For direct capture, software like VLC, OBS Studio, or the native camera app on your OS will work. The camera outputs both YUYV and MJPG formats, which are widely supported for real-time processing and compression.

With its 1.4µm pixel size and HDR support, the sensor performs adequately in moderate low-light conditions. For optimal low-light performance, consider using a lens with a lower F-number (e.g., F1.8). The operating temperature range of -20°C to 70°C and metal housing make it suitable for many outdoor and industrial environments, though direct weatherproofing is not included.
