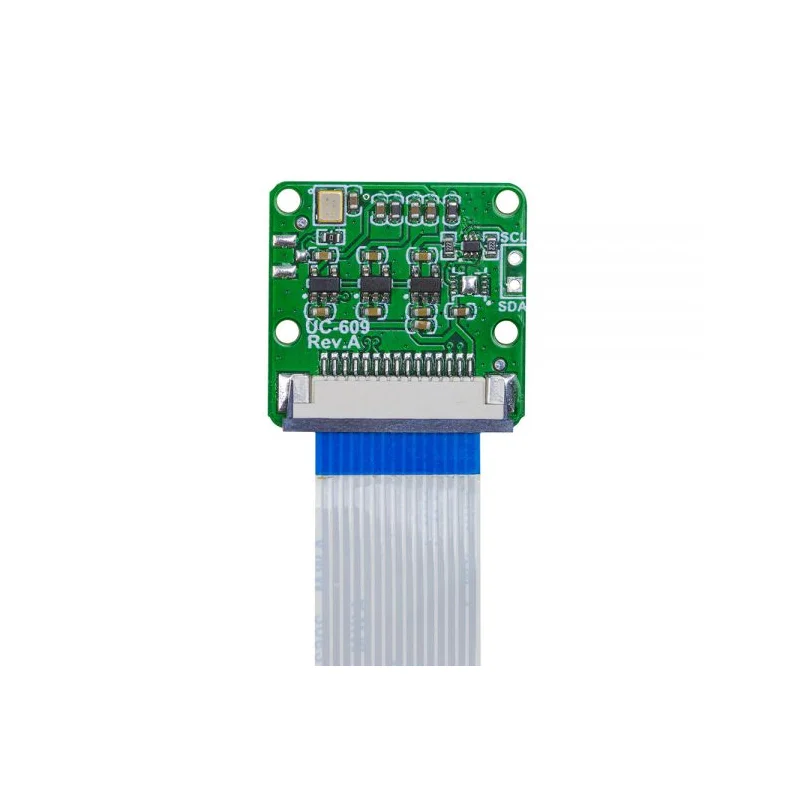

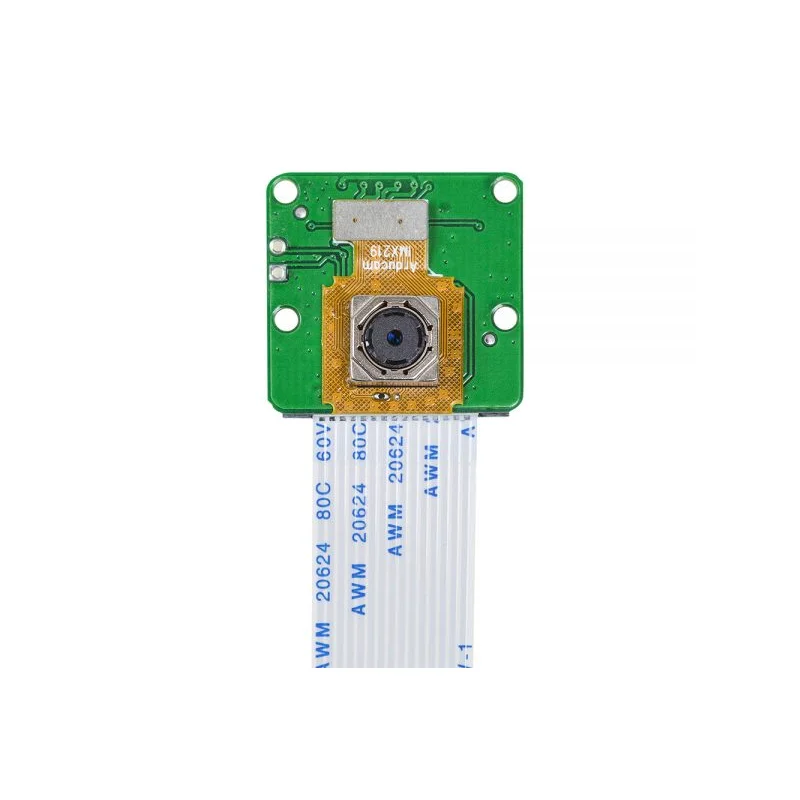

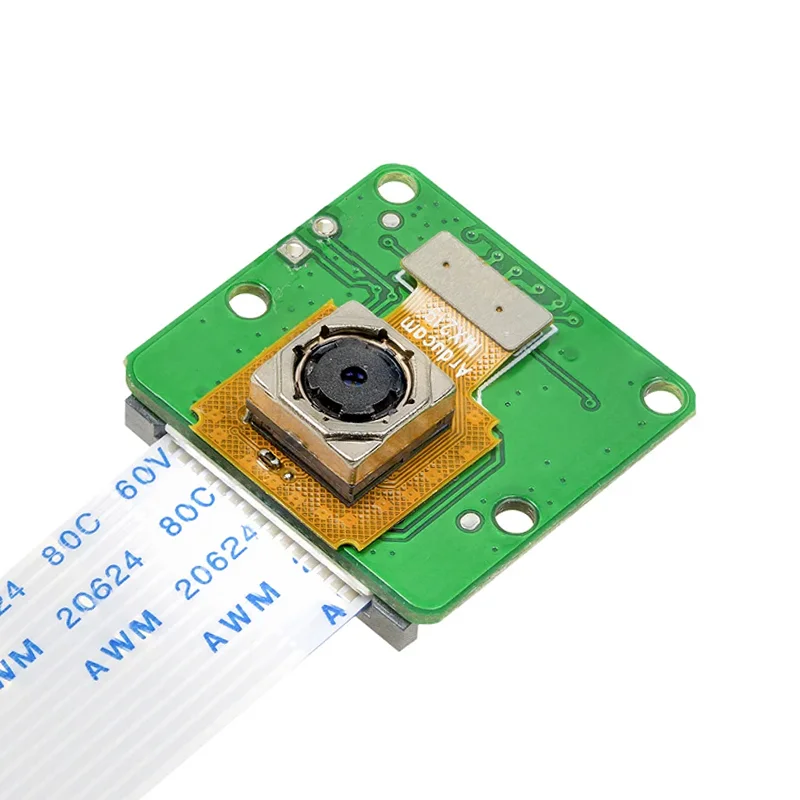

Arducam 8MP IMX219 Motorized Focus Camera Module for NVIDIA Jetson Nano (NoIR)
Arducam 8MP IMX219 Motorized Focus Camera Module for NVIDIA Jetson Nano (NoIR) - Image 2
Arducam 8MP IMX219 Motorized Focus Camera Module for NVIDIA Jetson Nano (NoIR) - Image 3
Arducam 8MP IMX219 Motorized Focus Camera Module for NVIDIA Jetson Nano (NoIR) - Image 4
SKU: IOWC-0426
📋 GST Invoice Available

Arducam 8MP IMX219 Motorized Focus Camera Module for NVIDIA Jetson Nano (NoIR)

₹4,509.00 (Inclusive of all taxes)
Out of Stock

This Arducam 8MP IMX219 Motorized Focus Camera Module is a programmable, software-controlled autofocus camera designed primarily for the NVIDIA Jetson Nano platform. It features a Sony IMX219 sensor delivering 8MP resolution at 30fps and connects via a 2-lane MIPI CSI-2 interface.

Features

  • Software-Controlled Autofocus: Programmable motorized focus lens enables software-based auto-focus functionality for dynamic vision applications.
  • Sony 8MP IMX219 Sensor: High-resolution 1/4-inch sensor provides sharp image capture at up to 30fps at full resolution or 60fps at 1080p.

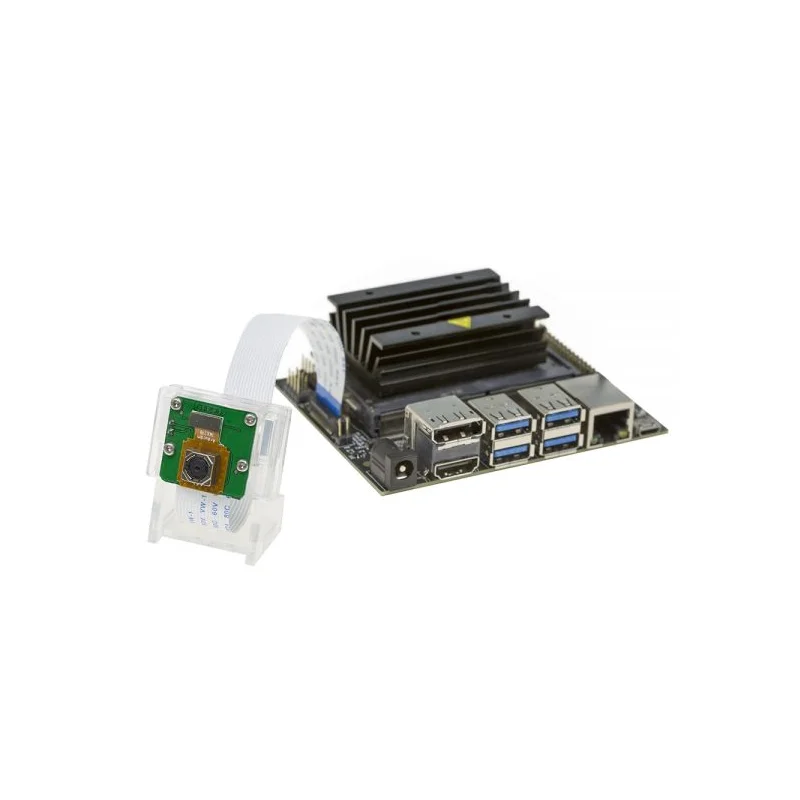

  • Designed for NVIDIA Jetson Nano: Primary platform compatibility with open-source drivers and focus control code provided by Arducam for seamless integration.
  • MIPI CSI-2 Interface: Utilizes a 2-lane MIPI CSI-2 interface for high-speed data transfer, compatible with Jetson Nano and other ARM/DSP/FPGA boards.
  • Visible Light (NoIR) Sensor: Equipped with an integral IR filter, optimized for visible light imaging applications like robotics and video analytics.

Out of stock

Description

The Arducam 8MP IMX219 Motorized Focus Camera Module is engineered for developers and integrators requiring precise, software-adjustable focus in embedded vision systems. Its core is the Sony IMX219 CMOS sensor, which outputs RAW8/RAW10 data through a 2-lane MIPI CSI-2 interface, ensuring low-latency, high-bandwidth video capture suitable for real-time processing on platforms like the NVIDIA Jetson Nano.

The module’s standout feature is its programmable motorized focus mechanism. Unlike fixed-focus lenses, this allows the focal point to be dynamically adjusted via software commands, enabling applications like object tracking, barcode scanning, or inspection systems where the subject distance varies. The provided open-source libraries for Jetson Nano simplify implementing auto-focus algorithms. With a 77.6-degree diagonal field of view and a compact 25x25mm form factor, it is ideal for space-constrained mobile robotics, drones, and intelligent video analytics setups.

Key Features

  • Programmable motorized lens enables software-based auto-focus for adaptive vision systems.
  • High-resolution Sony 8MP (3264x2448) IMX219 CMOS sensor with 1/4-inch optical format.
  • High frame rate support: 30fps at 8MP, 60fps at 1080p, and 180fps at 720p for versatile capture needs.
  • Standard 2-lane MIPI CSI-2 interface ensures compatibility with NVIDIA Jetson Nano and other embedded processors.
  • Integral IR filter for visible light imaging with a horizontal field of view of 65 degrees.
  • Compact and lightweight design (25x25mm, 3g) for integration into mobile platforms like drones and robots.
  • Includes a 15cm long, 15-pin FPC cable for flexible physical connection to the host board.
  • Open-source driver and focus control code provided by Arducam for rapid development on Jetson Nano.

Applications

  • Autonomous Robotic Systems and Mobile Robots for navigation and object recognition.
  • Unmanned Aerial Vehicles (UAVs) and Building Drones for aerial inspection and photography.
  • Intelligent Video Analytics (IVA) and surveillance systems requiring adaptive focus.
  • Mobile Medical Imaging devices for portable diagnostic applications.
  • Embedded vision systems on ARM, DSP, or FPGA platforms beyond Jetson Nano.

Technical Specifications

Sensor ModelSony IMX219
Resolution8 Megapixels
Optical Format1/4 inch
Frame Rate30fps @ 8MP, 60fps @ 1080p, 180fps @ 720p
Data FormatRAW8, RAW10
Focus TypeProgrammable Motorized / Auto Focus
Lens EFL / F.NO2.8mm / F2.2
Field of View (Diagonal)77.6°
InterfaceMIPI CSI-2, 2-lane
IR SensitivityVisible Light (Integral IR Filter)
Supply VoltageDriven via MIPI CSI-2 interface (Typ. 3.3V)
Dimensions (L x W)25 mm x 25 mm
Weight3 grams
Included Cable15cm 15-pin FPC cable (1.0mm pitch)

Frequently Asked Questions

How do I enable the software auto-focus feature on the NVIDIA Jetson Nano?

To enable auto-focus, you must install the Arducam-provided open-source drivers and libraries on your Jetson Nano. This typically involves cloning a GitHub repository, running installation scripts to configure the MIPI CSI-2 interface, and then using the provided Python or C++ examples. The code sends I2C commands to the camera's focus motor controller, allowing you to programmatically adjust the lens position based on image contrast or other metrics. Ensure your Jetson OS is updated and you have the correct cable connected.

Can this camera module be used with a standard Raspberry Pi (non-Compute Module)?

No, this camera module is not directly compatible with standard Raspberry Pi models (like Pi 3/4/5) due to their different camera connector (15-pin ZIF). It is designed for the MIPI CSI-2 interface on the NVIDIA Jetson Nano and the Raspberry Pi Compute Module. For use with a standard Pi, significant hardware modification (a different FPC adapter) and non-standard driver work would be required, which Arducam does not officially support. It is recommended for Jetson Nano or other MIPI CSI-2 host boards.

What is the difference between the NoIR version and a standard version of this camera?

The 'NoIR' designation here indicates the sensor has an integral IR (Infrared) filter, making it sensitive only to visible light. This is opposite to typical 'NoIR' cameras used for night vision, which lack an IR filter. This Arducam module is optimized for standard daylight/visible spectrum imaging, not for infrared capture. If you need IR sensitivity for low-light or night vision, you would require a different sensor model without an IR block filter. Always verify the sensor's spectral response for your application.

What power supply and configuration are needed to operate this camera module?

The module is powered through the MIPI CSI-2 interface connector on the host board (Jetson Nano). Typically, the host provides 3.3V and 1.8V rails. No external power supply is needed. For software configuration, you must enable the CSI-2 interface on the Jetson Nano, often via the `sudo /opt/nvidia/jetson-io/jetson-io.py` tool to configure the camera header pins. After installing Arducam's drivers, you can use GStreamer or OpenCV pipelines to capture video. Ensure the 15-pin FPC cable is firmly seated in both connectors.

Package Includes

  • 1 x Arducam 8MP IMX219 Motorized Focus Camera Module (NoIR)
  • 1 x 15cm 15-pin FPC Cable (1.0mm pitch)

Additional Information

Weight 0.003 kg
Dimensions 2.5 × 2.5 cm
