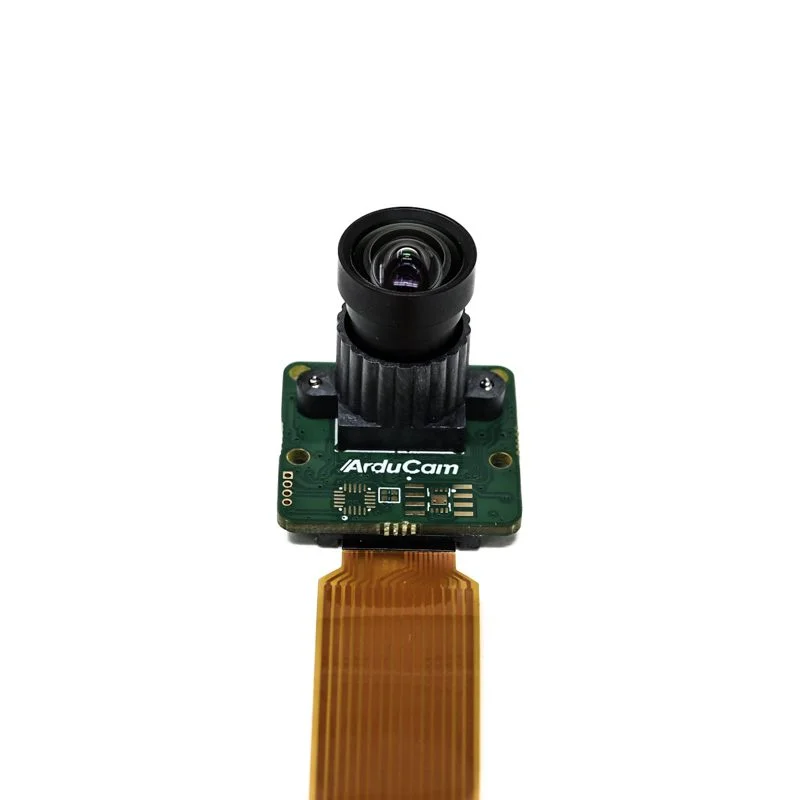

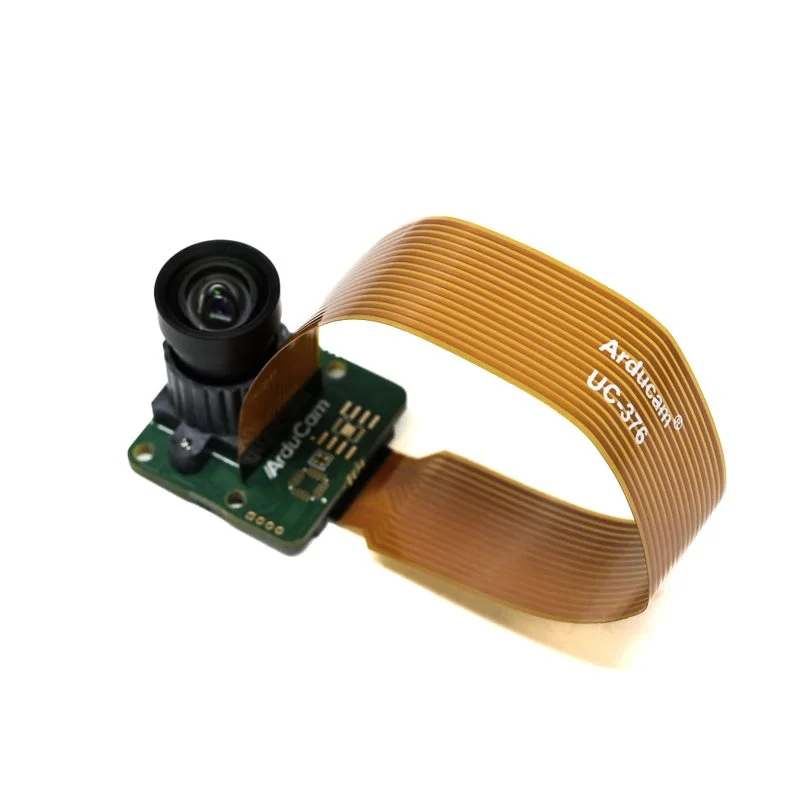

Arducam 12MP 477P Mini Camera Module for Raspberry Pi w/ M12 Lens

No, this camera module is fully compatible with the standard Raspberry Pi camera driver stack (libcamera). For Raspberry Pi OS Bullseye or later, it will be detected automatically as a CSI camera. Simply connect the module using the included FPC cable, enable the camera interface via `raspi-config` or the configuration file, and it is ready for use with standard applications like `libcamera-still` or `libcamera-vid`. No custom kernel drivers or software installation is necessary.

To change the lens, first ensure the camera is powered off. Grip the existing M12 lens barrel firmly and rotate it counter-clockwise (lefty-loosey) to unscrew it from the module's threaded mount. Align the threads of the new M12 lens and screw it in clockwise until snug—avoid over-tightening. You will then need to manually adjust the focus by rotating the lens barrel while pointing the camera at a target at your desired working distance, observing the output on a monitor until the image is sharp. Some lenses may have a locking screw to secure focus.

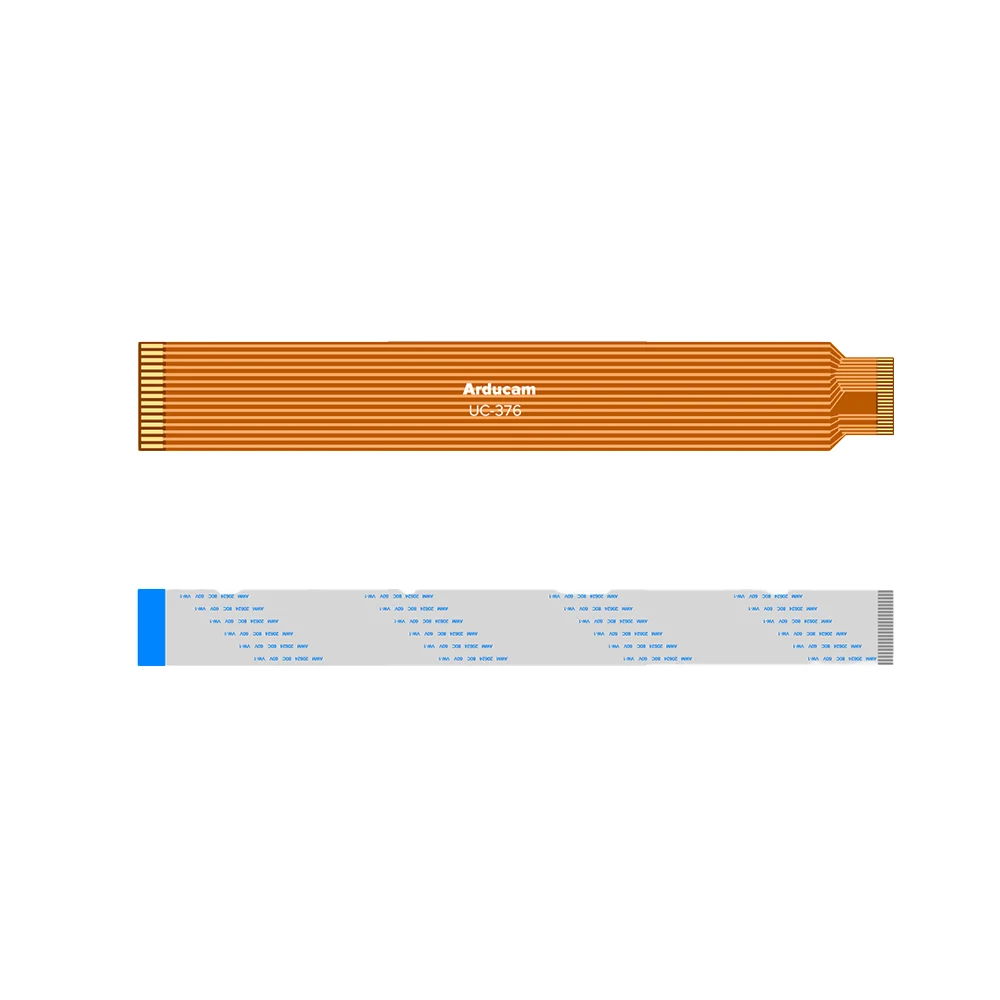

The module is compatible with all Raspberry Pi models featuring a CSI camera connector. This includes the Raspberry Pi 5, 4B, 3B+, 3, 2, Compute Module 3/4 (with appropriate carrier board), Zero W, and Zero 2 W. For older 15-pin CSI connectors (Pi Zero, Pi 1), use the included 15-pin to 22-pin FPC adapter cable. For newer 22-pin connectors (Pi 5, Pi 4, Pi 3B+), use the included 22-pin cable directly. Ensure the camera interface is enabled in your Raspberry Pi OS configuration before use.
