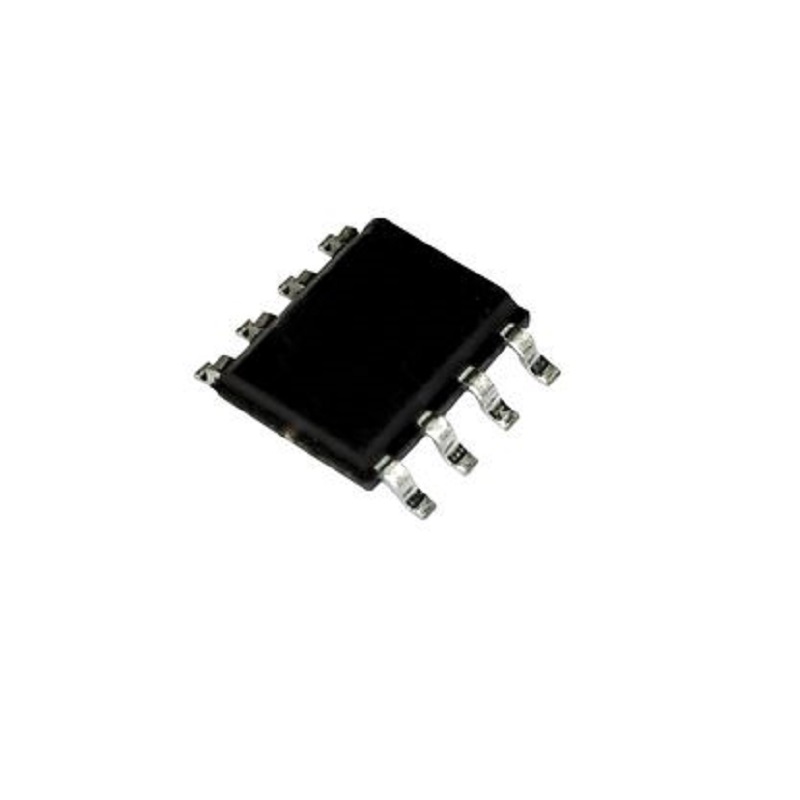

Analog Devices TMP36FSZ Temperature Sensor IC, Voltage Output, ±2°C Accuracy, NSOIC-8
The Analog Devices TMP36FSZ is a low-voltage, precision analog temperature sensor IC in an NSOIC-8 package, providing a voltage output linearly proportional to Celsius temperature. It is designed for easy integration with 3.3V and 5V microcontrollers, Arduino boards, and data acquisition systems for accurate environmental and device temperature monitoring.
Features
- ±2°C Accuracy over the -40°C to +125°C temperature range
- Low-voltage operation from 2.7V to 5.5V single supply
- Linear voltage output scaled to 10 mV/°C with a 500 mV offset at 0°C
- NSOIC-8 surface-mount package for compact PCB integration
- Calibrated directly in Celsius, no external components required for basic operation
Out of stock
The TMP36FSZ from Analog Devices is a monolithic integrated circuit temperature sensor that generates an analog voltage output directly proportional to the ambient temperature. Its output is scaled to 10 mV per degree Celsius, starting from 500 mV at 0°C, simplifying analog-to-digital conversion and linearization in microcontroller-based systems. The sensor requires no external calibration or signal conditioning, offering a straightforward solution for temperature measurement.
Housed in an industry-standard NSOIC-8 package, this sensor is designed for reliable surface-mount assembly and stable performance across its full operating range. It features a wide supply voltage range compatible with modern logic levels and exhibits very low self-heating for accurate readings. The TMP36FSZ is ideal for applications requiring a cost-effective, precise, and easy-to-interface temperature sensing element.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 1 × 1 × 1 cm |
