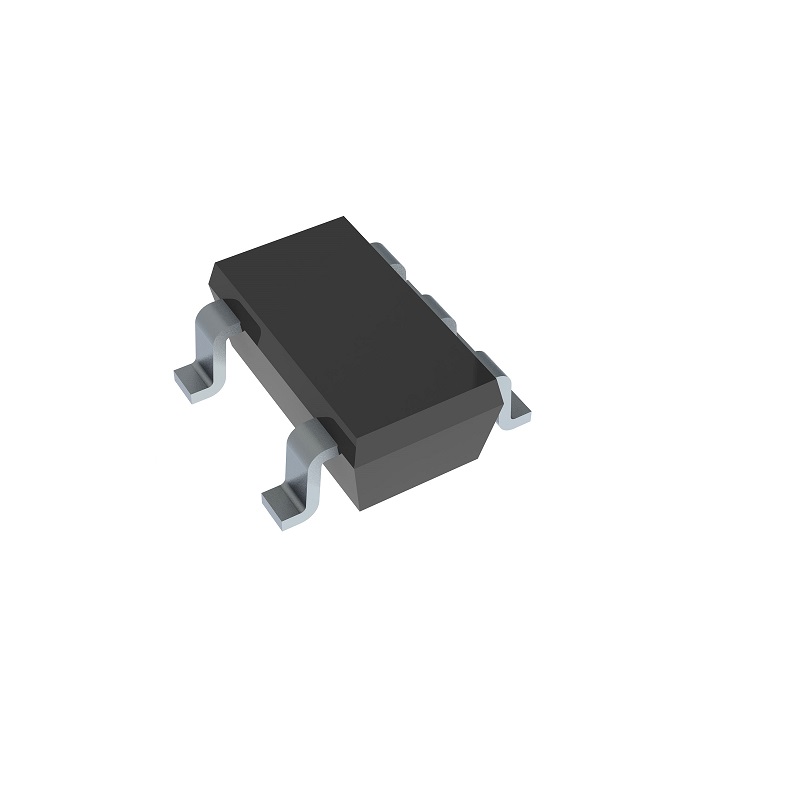

Analog Devices DS1775R Digital Temperature Sensor IC, Digital Thermometer/Thermostat, ±2°C, -55°C to 125°C, SOT-23-5
The Analog Devices DS1775R is a high-precision digital temperature sensor and thermostat IC in a compact SOT-23-5 package. It provides a 12-bit digital output via an I2C interface, making it ideal for integration with microcontrollers like Arduino, Raspberry Pi, ESP32, and STM32 for accurate thermal monitoring and control.
Features
- High-Accuracy Digital Temperature Sensor with ±2°C Accuracy
- Wide Operating Range from -55°C to +125°C
- 12-Bit Resolution Digital Output via I2C Interface
- Low Voltage Operation from 2.7V to 5.5V Supply
- Compact SOT-23-5 Package for Space-Constrained Designs
Out of stock
The DS1775R from Analog Devices is a fully integrated digital thermometer and thermostat. It utilizes an on-chip temperature sensor and a sigma-delta analog-to-digital converter to provide a high-resolution 12-bit digital readout. The device communicates via a standard 2-wire I2C serial interface, simplifying connection to host processors.
Designed for robust performance, the sensor operates across the full industrial temperature range of -55°C to +125°C with an accuracy of ±2°C. Its wide supply voltage range of 2.7V to 5.5V supports compatibility with both 3.3V and 5V logic systems, offering flexibility in embedded and portable applications.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 1 × 1 × 1 cm |
