Lattice MachXO3LF Starter Kit, LCMXO3LF-6900C-S-EVN FPGA

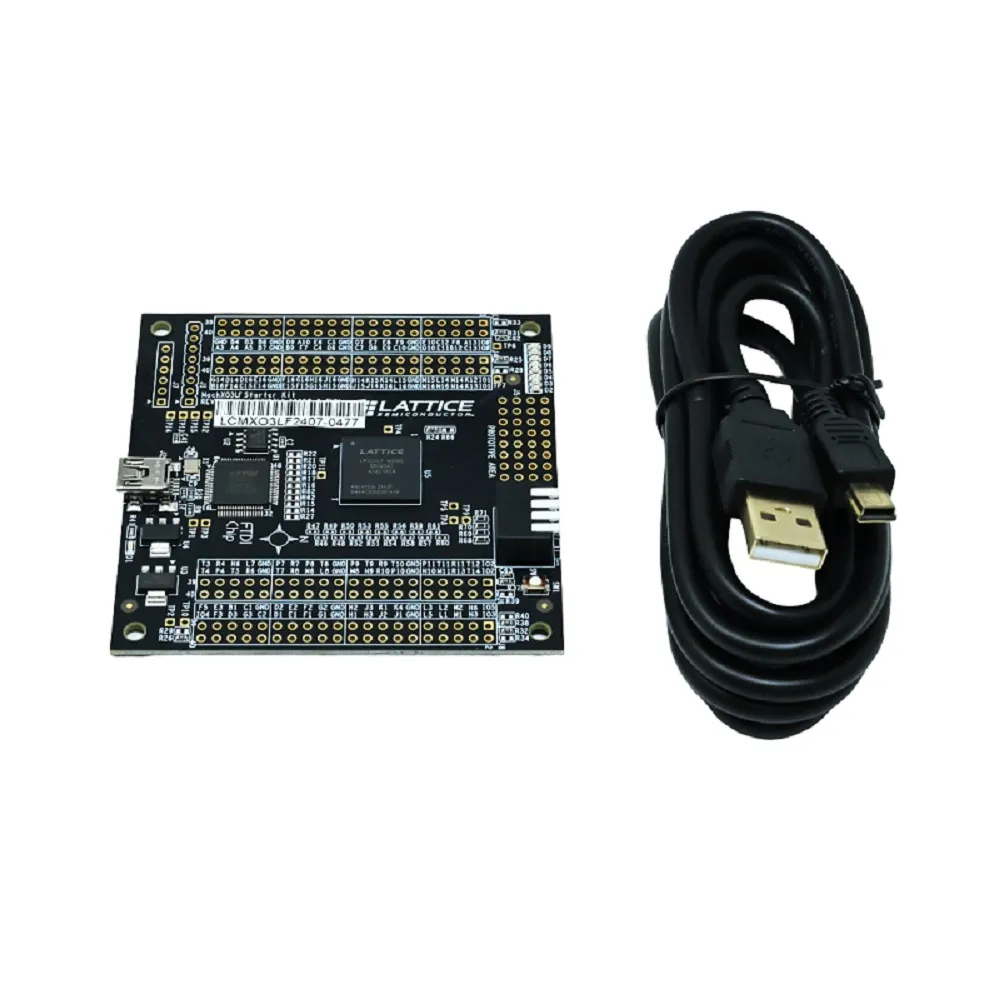

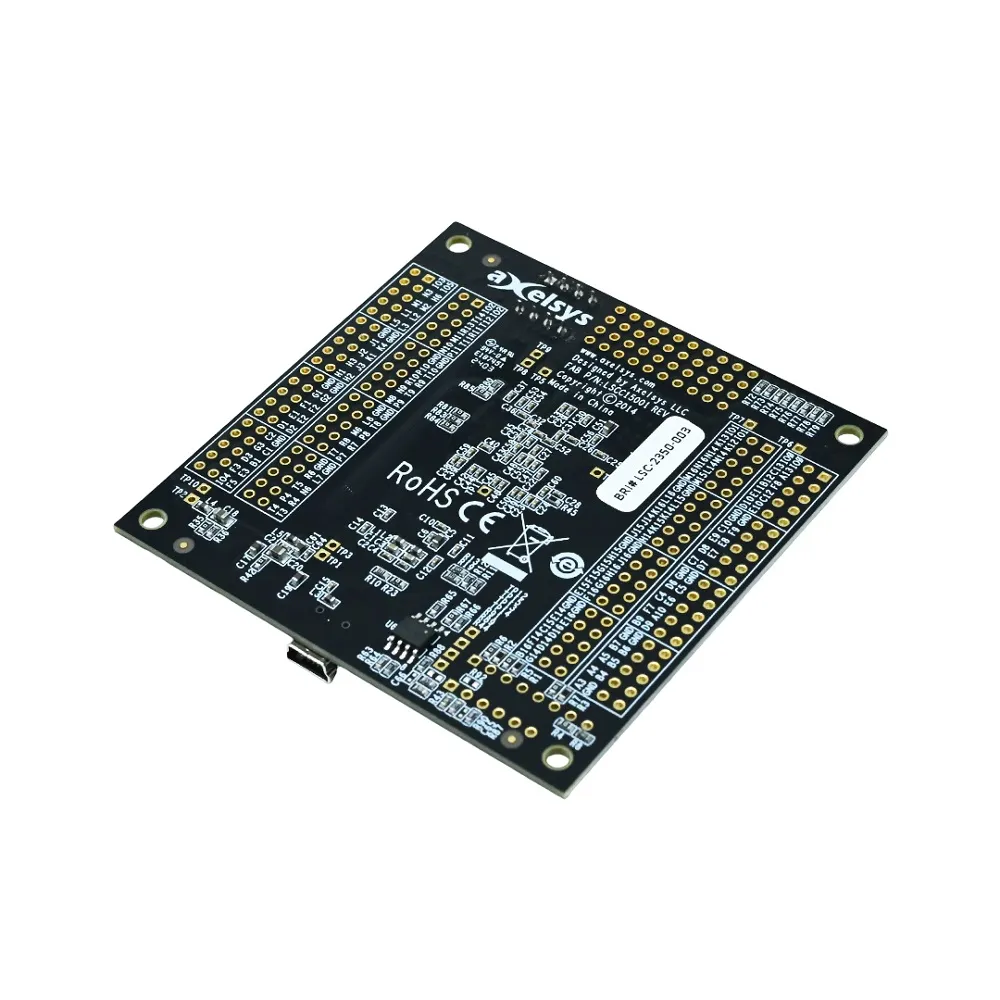

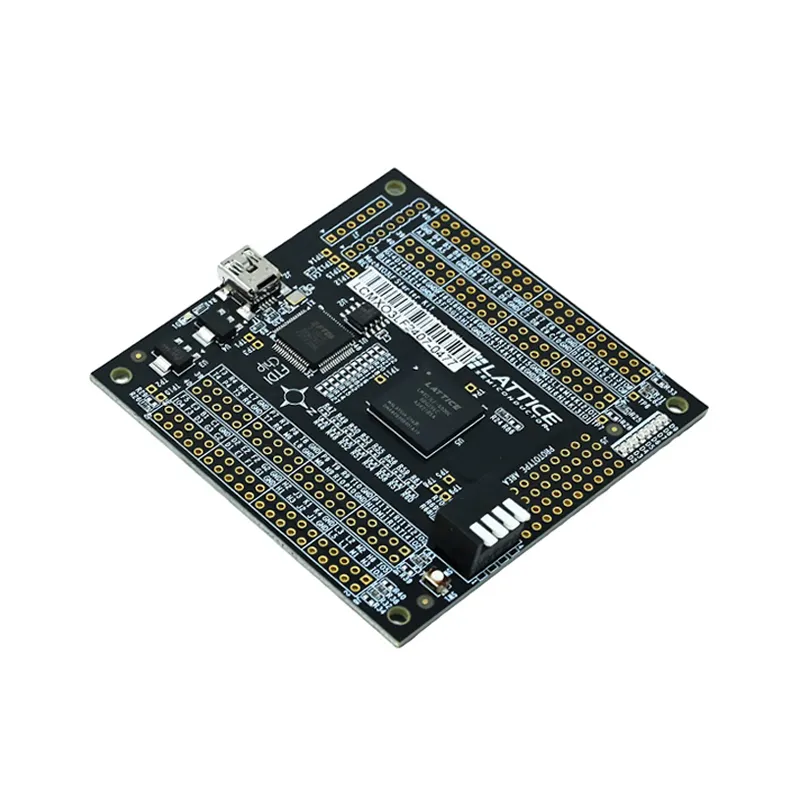

The Lattice MachXO3LF Starter Kit is a compact 3×3 breakout board featuring the LCMXO3LF-6900C-5BG256C FPGA, ideal for evaluating and developing embedded designs. It includes onboard SPI Flash for dual-boot functionality and a USB mini-B connector for convenient power and programming.
Features
- Compact 3″ x 3″ breakout board with LCMXO3LF-6900C-5BG256C FPGA.
- Integrated SPI Flash for flexible external and dual-boot evaluations.
- USB mini-B connectivity for power delivery and programming.
- Pre-loaded demo design simplifies initial setup and I/O exploration.
Out of stock
The Lattice MachXO3LF Starter Kit provides an essential and user-friendly platform for evaluating and developing embedded designs using the robust LCMXO3LF-6900C-5BG256C FPGA. Its compact 3” x 3” form factor makes it suitable for integration into various prototyping environments, offering a dedicated breakout for the MachXO3LF device.
This development board is equipped with onboard SPI Flash, enabling versatile external and dual-boot functionality, crucial for advanced application testing and robust system recovery. Power and programming are efficiently handled via a single USB mini-B connector, streamlining the development workflow.
Designed for rapid prototyping, the kit includes practical features such as LEDs, DIP switches, and a dedicated 40-hole prototyping area. It comes pre-loaded with a demonstration design to immediately showcase the FPGA’s embedded oscillator and programmable I/O capabilities, facilitating a quick start for developers.
Additional Information
| Weight | 0.222 kg |
|---|---|
| Dimensions | 20 × 17 × 6 cm |
