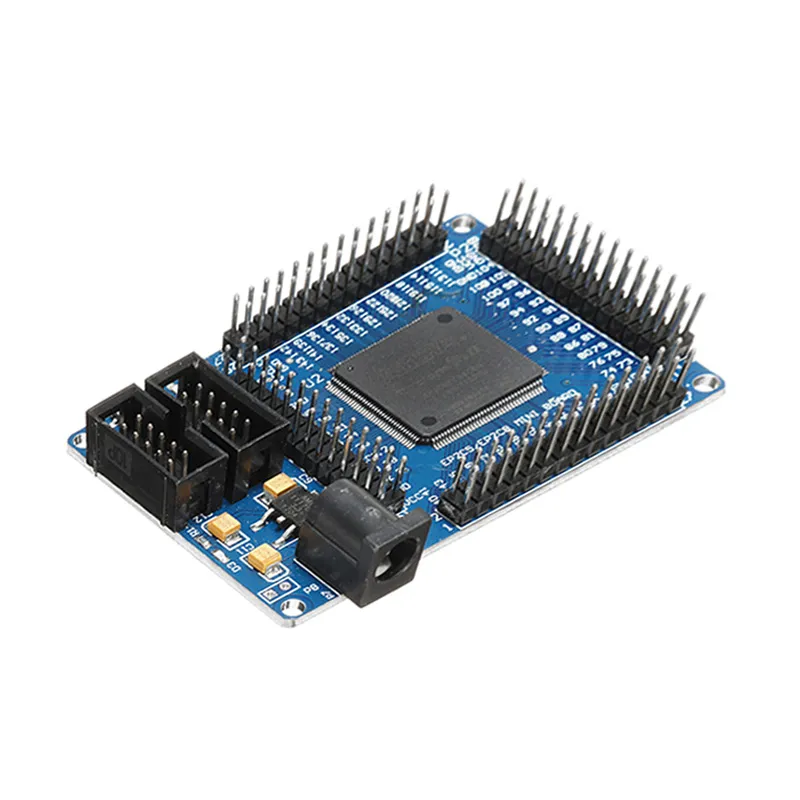

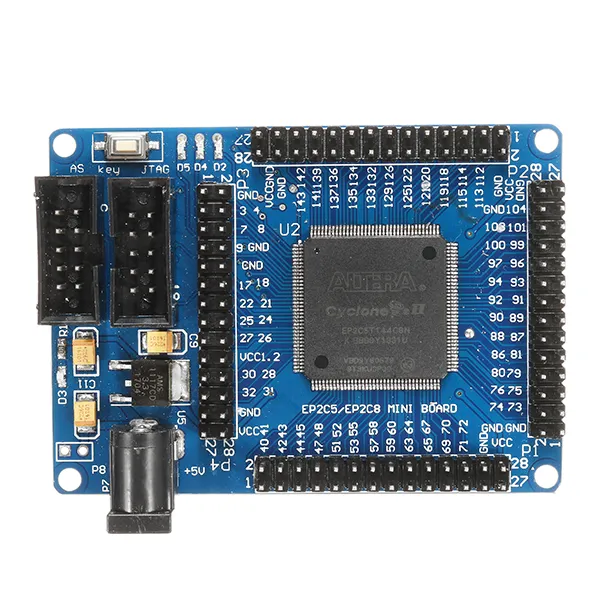

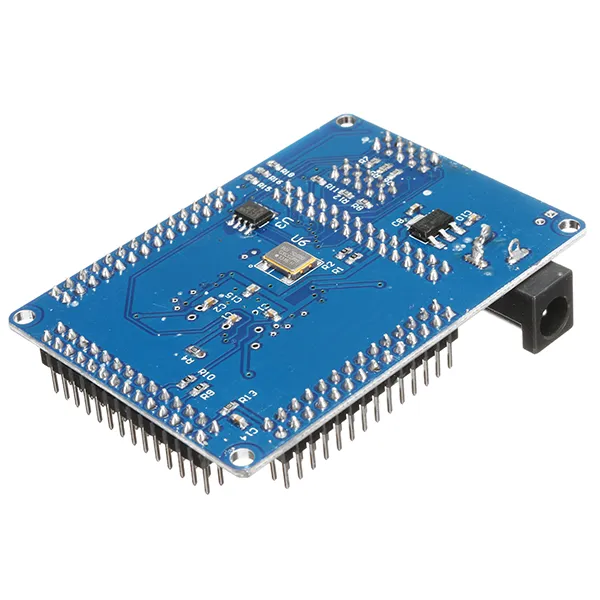

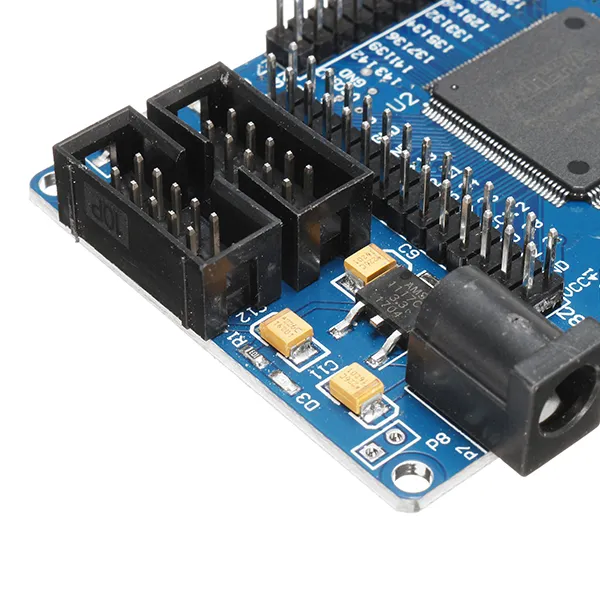

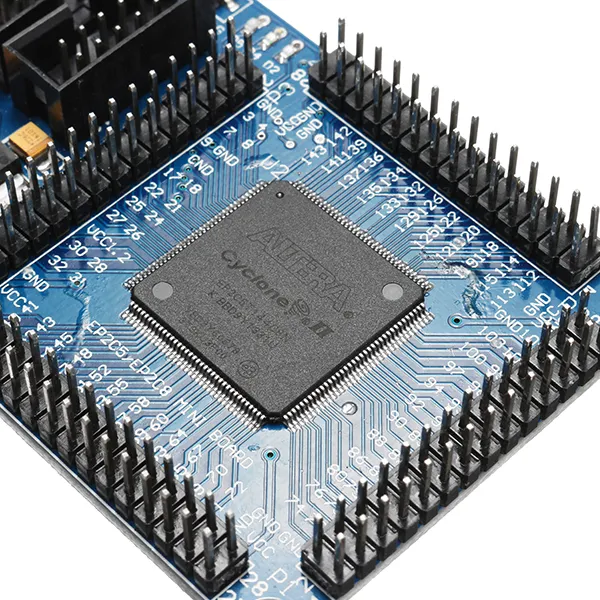

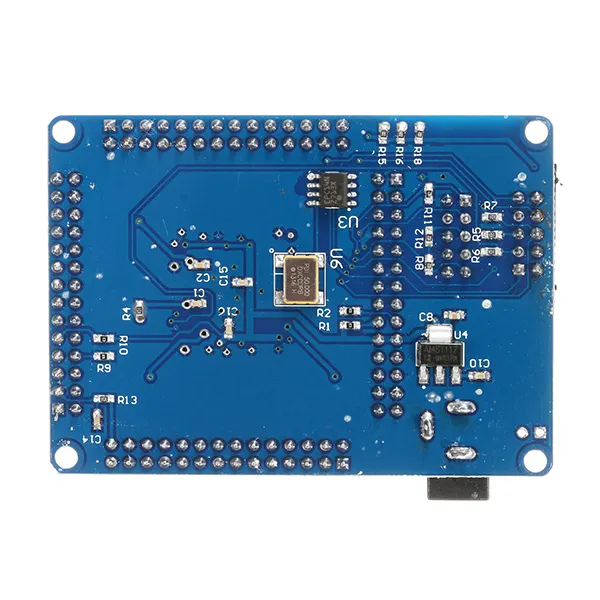

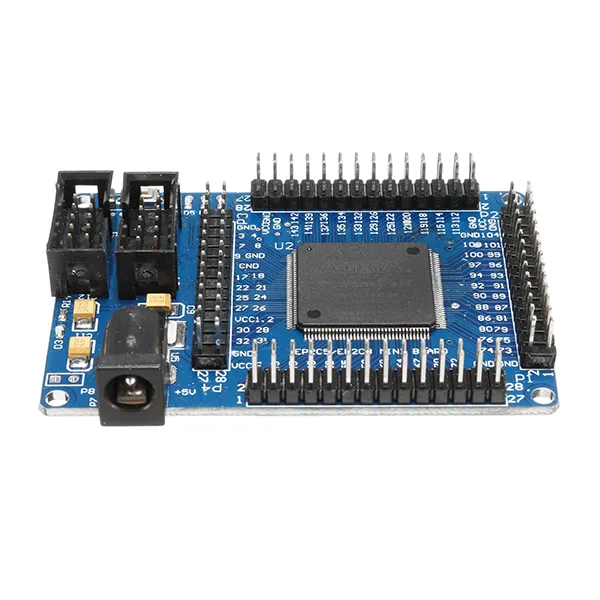

Altera Cyclone II EP2C5T144 FPGA Development Board
This Altera Cyclone II EP2C5T144 FPGA System Development Board provides a compact and powerful platform for embedded logic control and signal processing, featuring an onboard EPCS4 configuration chip and a 50MHz active crystal for robust operation.
Features
- Integrates Altera Cyclone II EP2C5T144 FPGA with 5,300 Logic Elements.
- Configurable with 4Mbit EPCS4 serial Flash memory for non-volatile storage.
- Features an onboard 50MHz active crystal oscillator for stable clocking.
- Provides a single 5V power supply input via DC barrel jack or pin header.
- All FPGA I/O pins are led out, enabling extensive peripheral and memory expansion.
Out of stock
The Altera Cyclone II EP2C5T144 System Development Board serves as a core smallest system, centered around the powerful Altera Cyclone II EP2C5T144 FPGA chip. This compact platform allows developers to easily embed sophisticated digital logic within actual application systems, handling tasks ranging from simple logic control and data acquisition to advanced signal processing and complex mathematical calculations.
Designed for maximum flexibility, all pins of the FPGA chip are directly led out to pin headers, facilitating seamless integration with custom application boards and external peripherals. The board supports versatile power input options, accepting a single 5V supply through either a standard DC barrel socket or the pin header, ensuring ease of use and broad compatibility for prototyping and embedded deployments. It also features support for Nios II embedded CPU development, expanding its utility for more complex soft-core processor designs.
Additional Information
| Weight | 0.026 kg |
|---|---|
| Dimensions | 7.2 × 5.2 × 1.3 cm |
