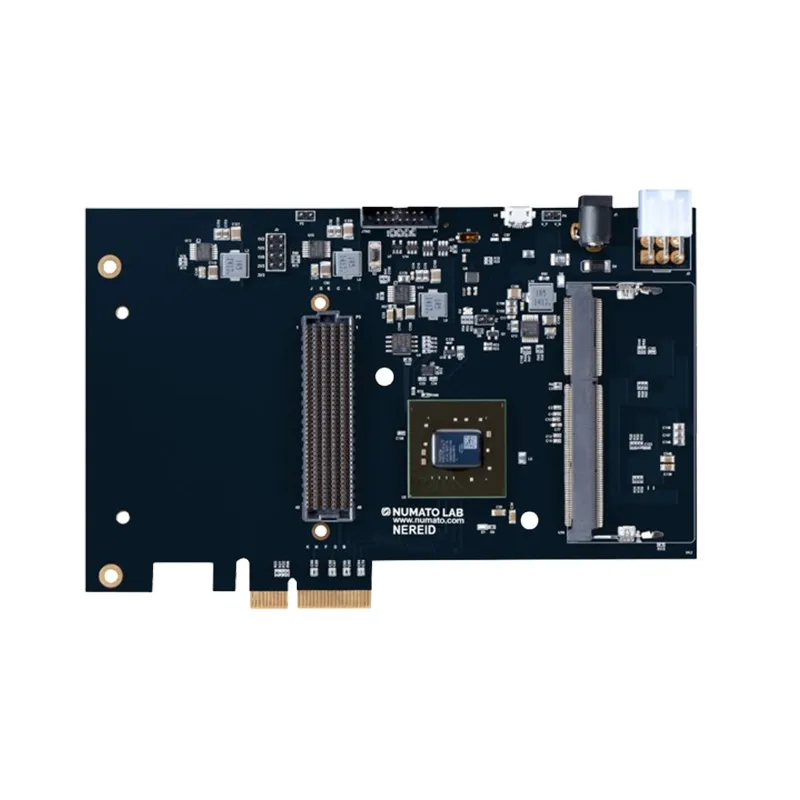

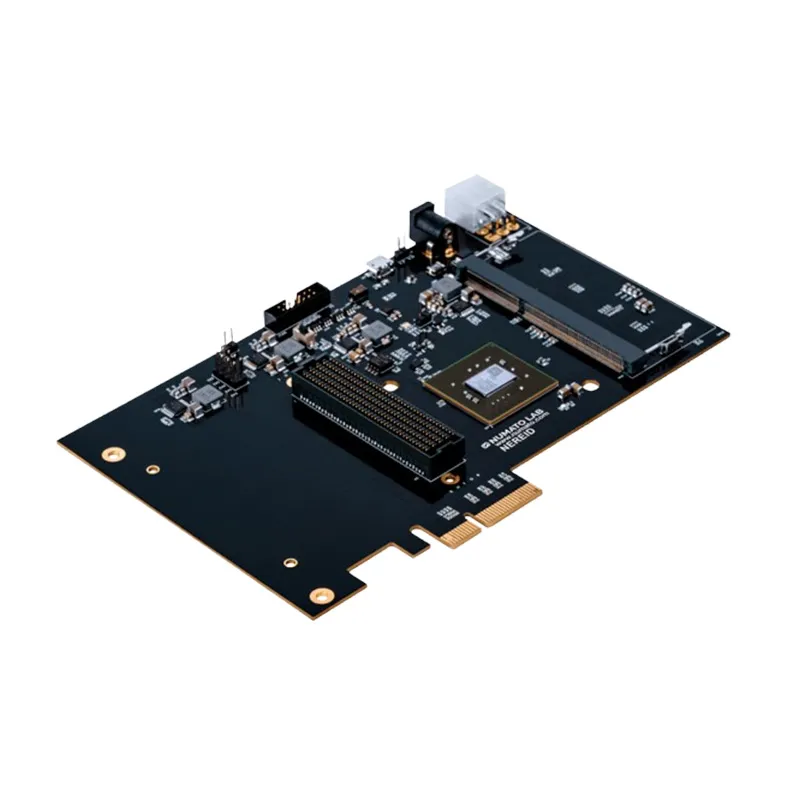

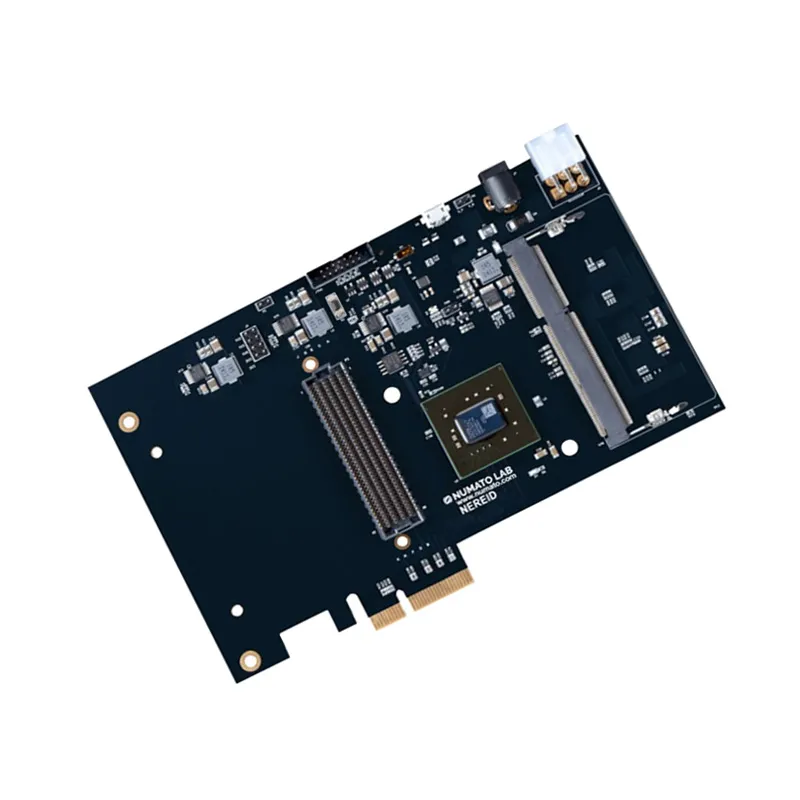

NumatoLab Nereid K7 PCIe Kintex-7 FPGA Dev Board
The NumatoLab Nereid K7 is a high-performance FPGA development board featuring the AMD Kintex-7 XC7K160T, designed for embedded systems and advanced signal processing. It offers 4-lane PCIe Gen2.0 connectivity and 4GB DDR3L memory, providing robust capabilities for complex designs.
Features
- Features AMD Kintex-7 XC7K160T FPGA, delivering high-performance logic processing.
- Provides 4-lane PCI Express Gen2.0 (5 GT/s) for high-bandwidth data transfers.
- Equipped with 4GB DDR3L SODIMM SDRAM and 128 Mb QSPI flash memory.
- Offers up to 174 user-defined I/Os through an ANSI/VITA 57.1 compliant FMC HPC connector.
- Includes 4 GTP lanes supporting data rates up to 6.6 Gbps for high-speed serial communication.
Out of stock
The NumatoLab Nereid K7 is a high-performance FPGA development board meticulously engineered for a diverse array of demanding applications, ranging from sophisticated embedded systems to advanced signal processing. Central to its architecture is the AMD Kintex-7 XC7K160T FPGA, housed in a compact FBG676 package, which provides exceptional logic processing capabilities and unparalleled design flexibility for complex digital designs.
This board integrates a robust memory subsystem, featuring 4GB of DDR3L SODIMM SDRAM for high-bandwidth data buffering and a 128 Mb QSPI flash for configuration and non-volatile storage. High-speed data transfer is a core strength, facilitated by a 4-lane PCI Express Gen2.0 interface operating at 5 GT/s, along with four high-speed Gigabit Transceiver Port (GTP) lanes supporting data rates up to 6.6 Gbps. Extensive peripheral connectivity is ensured through an ANSI/VITA 57.1 compliant FMC HPC connector, offering up to 174 user-defined I/Os for unparalleled expansion opportunities.
Additional Information
| Weight | 0.11 kg |
|---|---|
| Dimensions | 16 × 11 × 5 cm |
