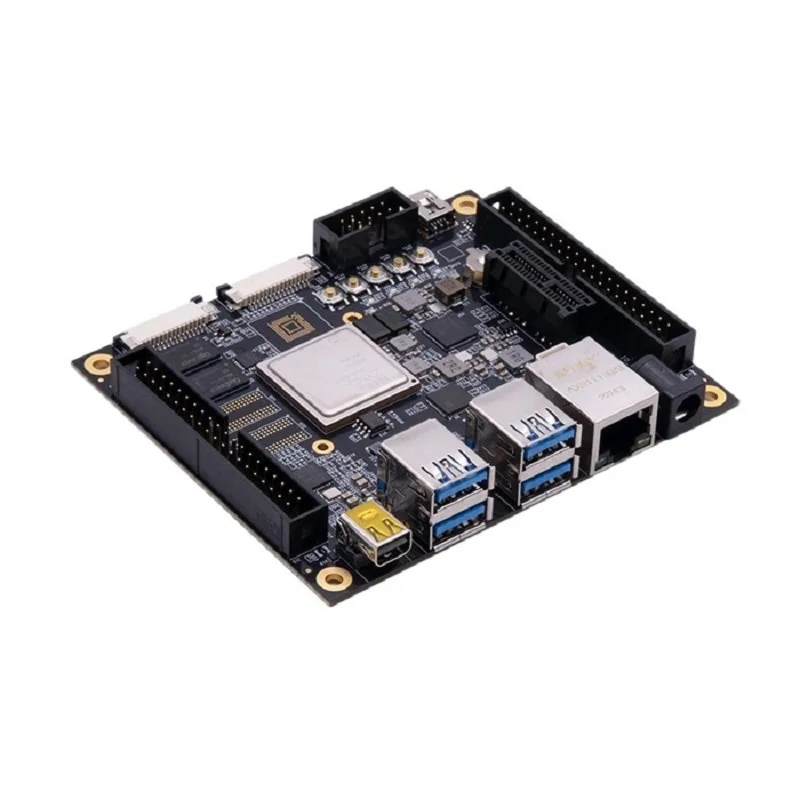

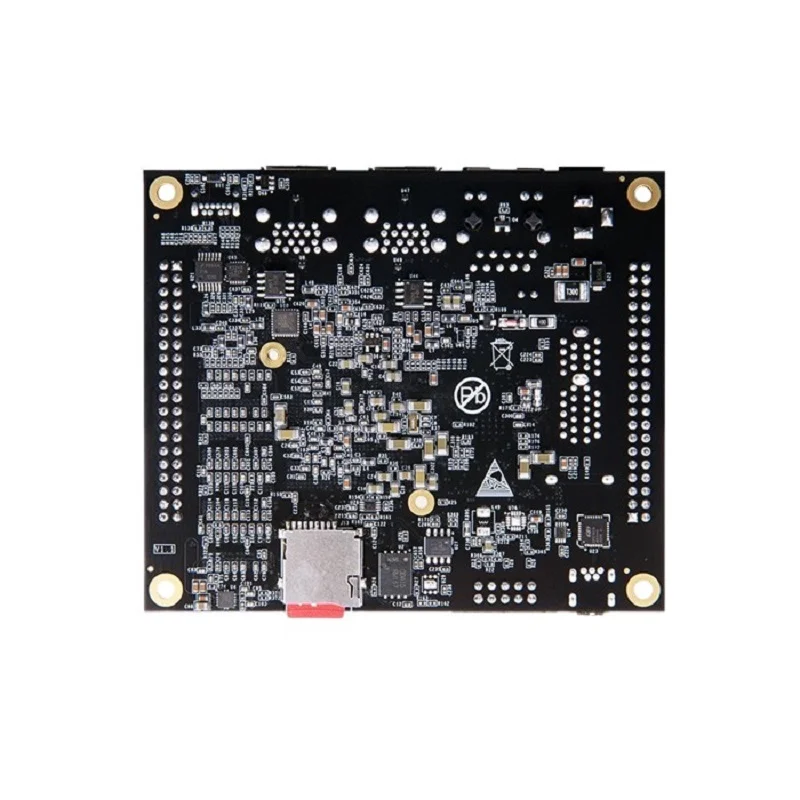

Alinx AXU2CGA Dev Board Kit with AMD Zynq US+ MPSoC ZU2CG
The Alinx AXU2CGA is a high-performance development board featuring the AMD Zynq UltraScale+ MPSoC (ZU2CG), combining a quad-core ARM Cortex-A53 processor, dual-core Cortex-R5, and 16nm FPGA fabric. It is engineered for demanding embedded applications like computer vision, AI inference, and industrial automation, with comprehensive I/O including PCIe, Gigabit Ethernet, USB 3.0, and dual MIPI camera interfaces.
Features
- High-Performance Heterogeneous SoC: Integrates a quad-core ARM Cortex-A53 CPU (1.3 GHz), dual-core Cortex-R5 real-time processor (533 MHz), and a 16nm FinFET+ FPGA for flexible hardware acceleration.
- Ample Embedded Memory: Features 2 GB of DDR4 SDRAM, 32 MB QSPI Flash, and up to 8 GB of eMMC storage for complex application and data handling.
- Advanced Vision & Connectivity: Equipped with a DisplayPort interface and two 2-lane MIPI camera interfaces (on PL) for high-speed video capture and processing, plus PCIe Gen2, Gigabit Ethernet, and USB 3.0/2.0.
- Expansion Ready: Includes two 40-pin expansion headers with 34 I/O signals each, enabling connection to Alinx camera, display, and high-speed AD/DA modules for system customization.

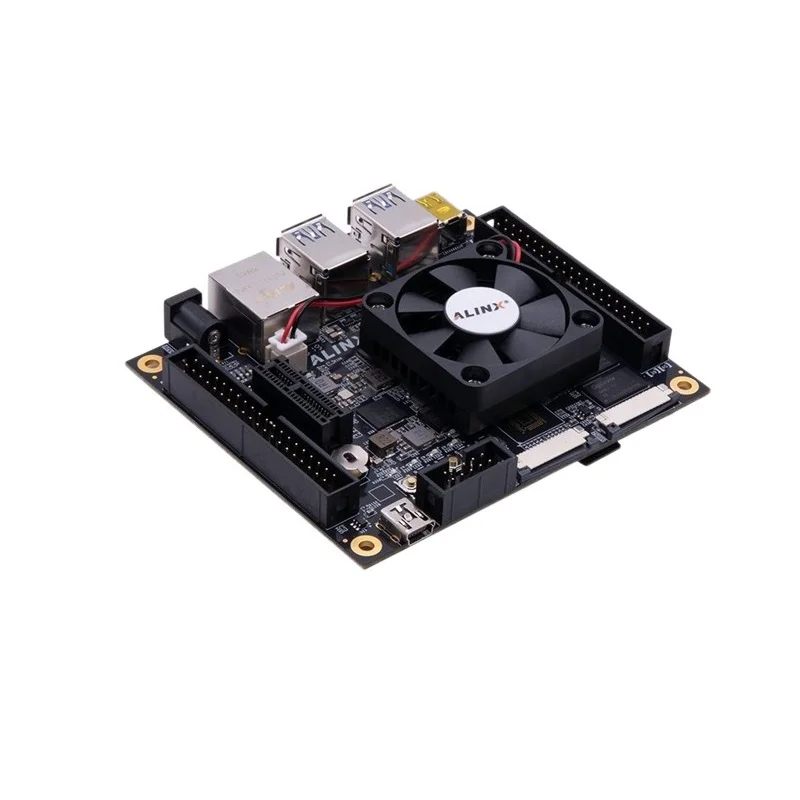

- Complete Development Kit: Ships with pre-installed heatsink, USB downloader cable, 12V power adapter, and TF card for immediate prototyping and deployment.
Out of stock
The Alinx AXU2CGA Development Board Kit provides a robust hardware platform centered on the AMD Zynq UltraScale+ ZU2CG MPSoC. This architecture merges a powerful application processing unit (APU) with a real-time processing unit (RPU) and programmable logic (PL), enabling developers to partition tasks between software running on the ARM cores and custom hardware accelerators implemented in the FPGA. The board’s design emphasizes high-bandwidth data acquisition and processing, making it ideal for compute-intensive edge applications.
Power management is handled via a single 12V DC input, simplifying system integration. The board’s 100mm x 85mm form factor is compact for its capabilities, fitting into space-constrained industrial enclosures. With its combination of high-speed serial interfaces, substantial memory, and expansion capabilities, the AXU2CGA serves as a foundational system for prototyping and deploying advanced embedded solutions in vision, networking, and control systems.
Additional Information
| Weight | 1.2 kg |
|---|---|
| Dimensions | 28 × 22 × 8 cm |
