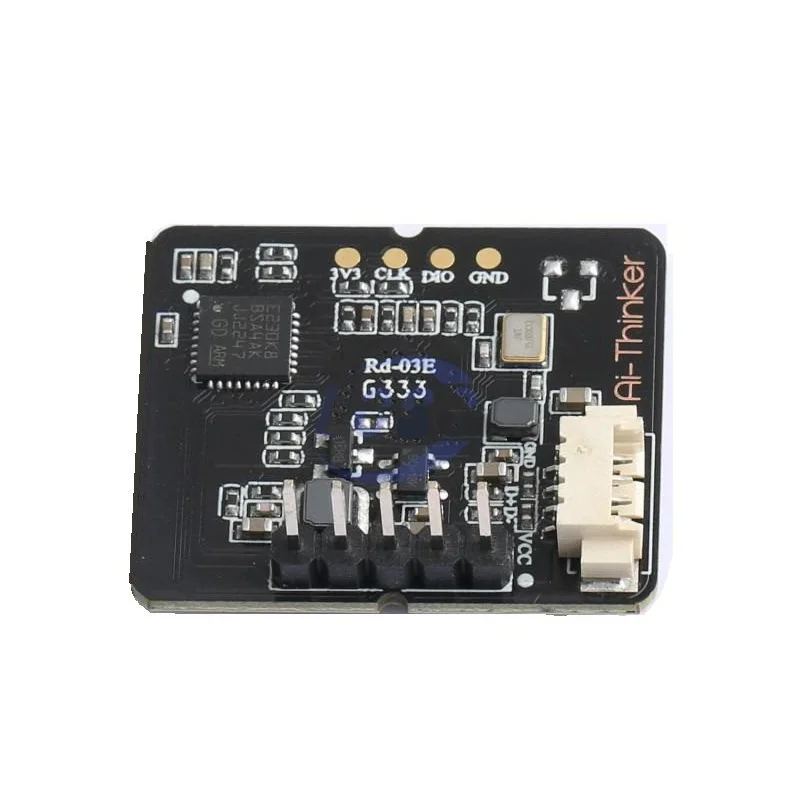

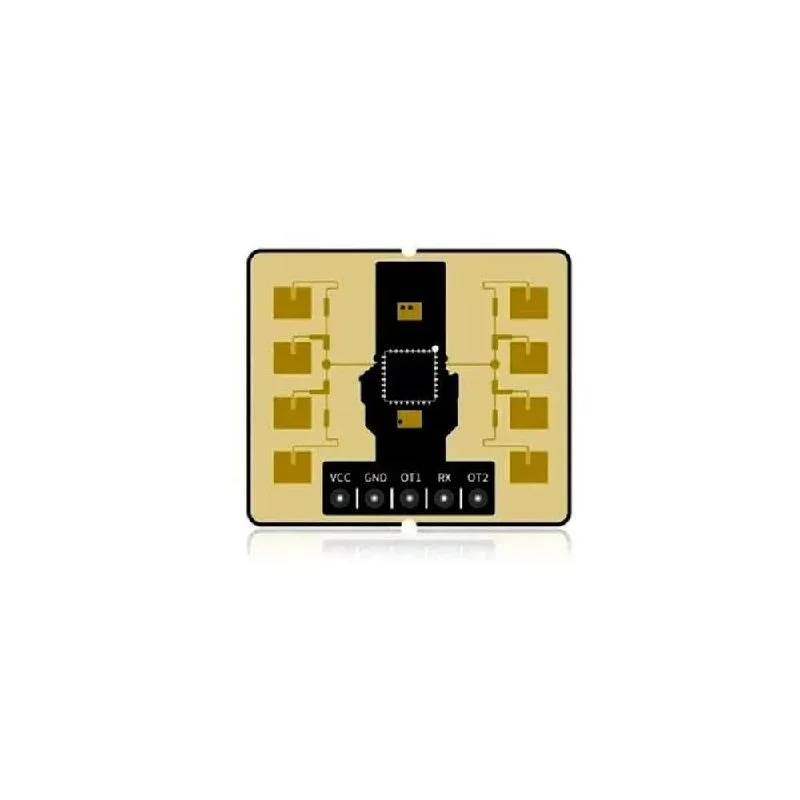

AI-Thinker Rd-03E 24GHz FMCW Radar Ranging UART Sensor
The AI-Thinker Rd-03E is a 24GHz FMCW radar sensor module featuring the S3KM111L chip for accurate human body sensing, ranging up to 6 meters, and gesture recognition. It supports UART communication for easy parameter adjustment, making it suitable for various IoT applications requiring precise presence detection.
Features
- 24 GHz ISM band FMCW radar for robust environmental operation.
- Detects moving and micro-moving human bodies up to 6 meters.
- High-precision ranging: ±5 cm for 30-350 cm, ±5% for 350-600 cm.
- Integrated gesture recognition with broad azimuth and elevation angles.
- UART interface for streamlined configuration and data output.
Out of stock
The AI-Thinker Rd-03E is a sophisticated 24GHz FMCW radar module, developed by Shenzhen AI-Thinker Technology Co., LTD. It integrates the silicon micro-S3KM111L chip, a single-chip millimeter-wave sensor SoC operating within the 24GHz K-band with up to 1 GHz modulation bandwidth. Leveraging advanced signal processing proprietary to the S3 series, alongside an MCU’s built-in intelligent presence sensing algorithm, this module delivers precise human body sensing, accurate distance measurement, and robust gesture recognition capabilities.
Developers can efficiently monitor real-time distance and gesture information using the provided host computer tool. The Rd-03E excels at detecting and identifying both moving and subtle micro-moving human bodies, reporting their real-time distances. Its ability to pinpoint targets and gestures within designated areas makes it highly versatile for a wide array of AIoT scenarios, offering strong real-time performance, high ranging accuracy, and flexible algorithm parameter configuration via its UART interface.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 9 × 7 × 2 cm |
