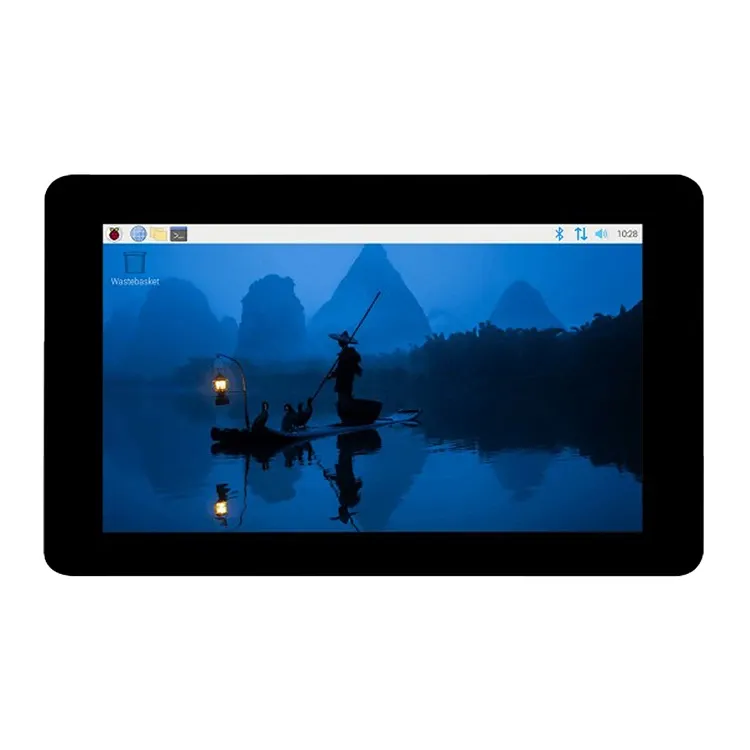

Official Raspberry Pi 7" Touch Display 2, Capacitive

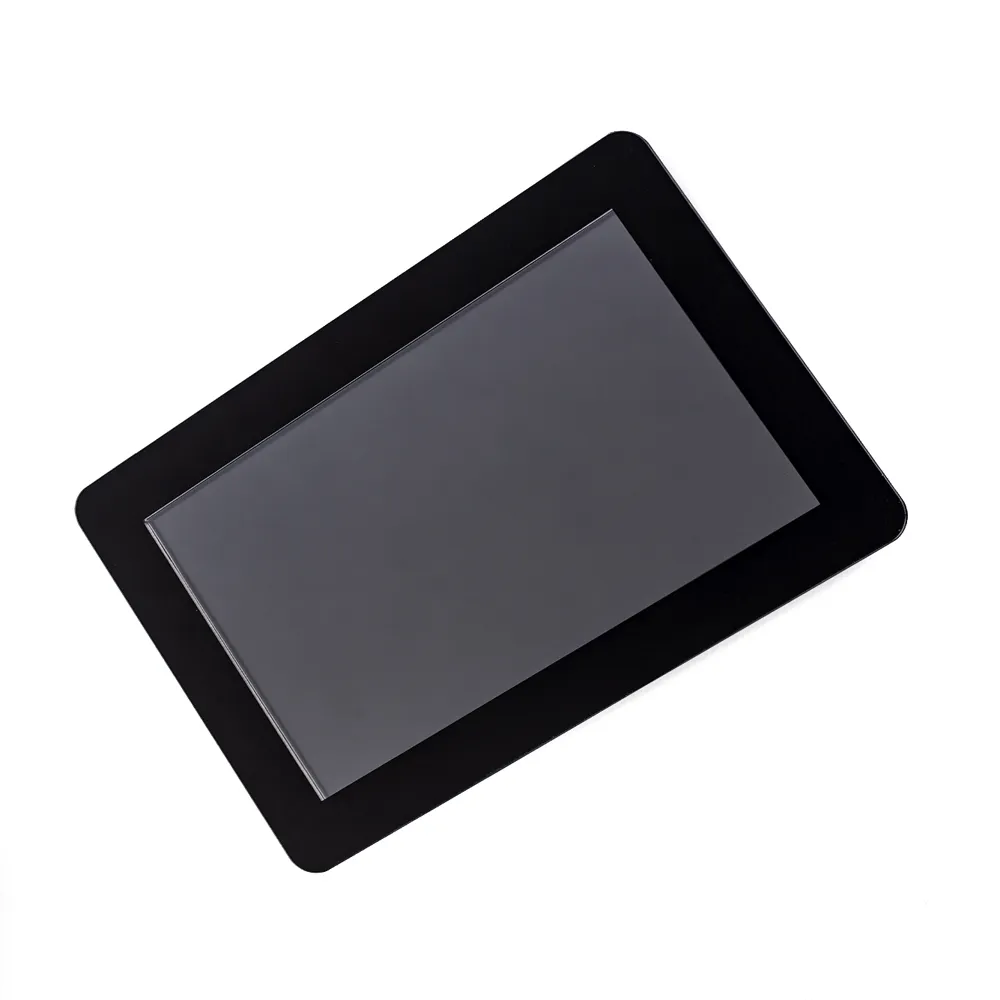

Official Raspberry Pi 7" Touch Display 2, Capacitive - Image 2
SKU: SBCD-0946
📋 GST Invoice Available

Official Raspberry Pi 7" Touch Display 2, Capacitive

₹7,759.00 (Inclusive of all taxes)
Out of Stock

The Official Raspberry Pi 7″ Touch Display 2 offers a crisp 720×1280-pixel resolution and multi-touch capacitive input, ideal for creating integrated projects like tablets, infotainment systems, and HMI applications with any Raspberry Pi.

Features

  • 7-inch (native portrait 720×1280) display for comprehensive visual feedback.
  • True multi-touch capacitive panel supporting five-finger input.
  • Seamless connection via Raspberry Pi’s DSI port and GPIO for power.
  • Integrated display driver PCB for a slimmer form factor compared to its predecessor.
  • Full software support with Raspberry Pi OS, including on-screen keyboard functionality.

Out of stock

Description

The Official Raspberry Pi 7″ Touch Display 2 empowers users to develop all-in-one, integrated projects such as custom tablets, advanced infotainment systems, and diverse embedded solutions. This 720×1280-pixel display connects to your Raspberry Pi via a dedicated adapter board, which efficiently manages both power and signal conversion. Only two connections are necessary: power is drawn from the Raspberry Pi’s GPIO port, and data is transmitted via a ribbon cable connected to the DSI port, present on all Raspberry Pi models.

Key to its functionality, the display boasts a true multi-touch capacitive panel with support for five-finger touch. Touchscreen drivers and an on-screen keyboard are fully integrated into the latest Raspberry Pi OS, ensuring complete functionality without needing an external physical keyboard or mouse. The unit attaches securely to your Raspberry Pi using four screws and includes power and data cables compatible with both standard and mini FPC connector formats. Unlike its predecessor, the Touch Display 2 integrates the display driver PCB directly into the display enclosure, resulting in a significantly slimmer and more streamlined design.

While it is a native portrait-format panel, Raspberry Pi OS provides robust support for screen rotation, allowing users to comfortably utilize it in a landscape orientation if preferred. This display is a crucial component for makers and developers looking to add an interactive visual interface to their Raspberry Pi projects.

Key Features

  • Features 5-finger capacitive touch for intuitive user interaction.
  • Connects directly to the Raspberry Pi board using a ribbon cable via the DSI port.
  • Truly interactive, with the latest software drivers supporting a virtual ‘on-screen’ keyboard, eliminating the need for external input devices.
  • Enables creation of Internet of Things (IoT) devices with visual displays, facilitating home automation projects with touchscreen capability.
  • Supports a range of educational software and programs on Raspberry Pi, enhancing learning and programming through touch interaction.
  • Integrated display driver PCB results in a much slimmer and more compact form factor.
  • Full support for screen rotation within Raspberry Pi OS for flexible orientation.

Applications

  • Custom tablet and handheld computing devices.
  • Embedded infotainment systems for vehicles or kiosks.
  • Industrial Human-Machine Interfaces (HMIs).
  • Home automation control panels.
  • Educational platforms for coding and electronics.
  • IoT devices requiring interactive visual feedback.

Technical Specifications

Display Size7.0 inches
Touchscreen TypeCapacitive Multi-touch (5-Points)
Resolution720 x 1280 pixels
Viewing Angle85 degrees
Color Depth24-bit RGB
Length19.0 cm
Width12.0 cm
Weight0.244 kg

Frequently Asked Questions

Which Raspberry Pi boards are compatible with the 7" Touch Display 2?

The display is compatible with all Raspberry Pi boards that feature a DSI (Display Serial Interface) port. This includes models like the Raspberry Pi 2, 3, 4, 5, and the Compute Modules when used with an appropriate carrier board. It connects directly via a ribbon cable and GPIO for power.

How is the 7" Touch Display 2 powered and connected to the Raspberry Pi?

The display is powered directly from the Raspberry Pi's GPIO port via a included cable. Data transmission for both display and touch functionality occurs through a single ribbon cable connecting the display's adapter board to the Raspberry Pi's DSI port. No external power supply is typically required for the display itself.

What kind of software support does the display have with Raspberry Pi OS?

The 7" Touch Display 2 is fully supported by the latest Raspberry Pi OS. It includes integrated drivers for 5-finger capacitive touch and provides an on-screen virtual keyboard. Raspberry Pi OS also allows for screen rotation, enabling the native portrait panel to be used effectively in landscape orientation.

What are the key improvements of the Touch Display 2 over its predecessor?

The Touch Display 2 features an integrated display driver PCB directly within the display enclosure, leading to a significantly slimmer form factor. While maintaining core features like 7-inch size and 5-finger touch, this design enhancement improves overall aesthetics and makes integration into compact projects easier and more professional.

Package Includes

  • 1 x 7″ Official Raspberry Pi Touch Display 2 with Capacitive Touchscreen
  • 1 x Connecting Cables (DSI ribbon, GPIO power)

Additional Information

Weight 0.244 kg
Dimensions 19 × 12 cm

Related Products

Out of Stock

Makerbase MKS TFT70 V1.1 7-inch Color TFT Touchscreen

8,449.00
Learn More
Out of Stock

Raspberry Pi 5-inch Touch Display 2 Capacitive

5,379.00
Learn More
Out of Stock

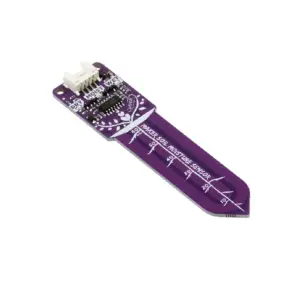

Cytron Technologies Maker Soil Moisture Sensor (Capacitive) - Analog Output, Grove Port

599.00
Learn More
Out of Stock

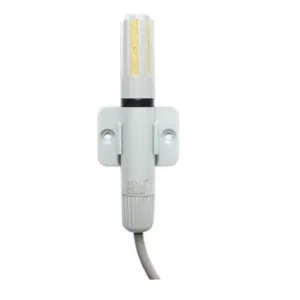

AM2305 Digital Temperature and Humidity Sensor - Capacitive, Single-Wire Interface

1,589.00
Learn More
Out of Stock

Makerbase MKS TS35-R 3.5-inch Capacitive Touch Screen

1,999.00
Learn More
Out of Stock

XKC-Y26-V Non-contact Water Liquid Level Induction Switch Detector Sensor 5-12V DC

859.00
Learn More
Out of Stock

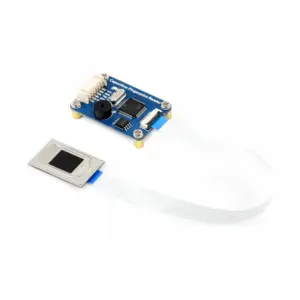

Waveshare Capacitive Fingerprint Reader Module - STM32F105, 3000 Capacity, UART/USB

3,999.00
Learn More
Out of Stock

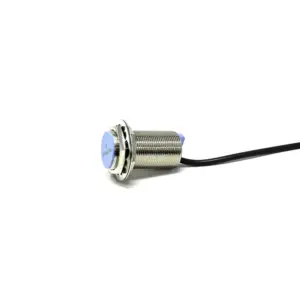

Pro-Range CRJ-A30M-10APB Capacitive Proximity Sensor PNP M30 Thread 10mm Detection

1,649.00
Learn More
Out of Stock

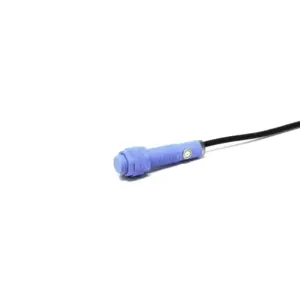

Pro-Range CCJ-A12M-3ANA Capacitive Proximity Sensor - NPN Output, M12 Thread, 3mm Detection

1,229.00
Learn More
Out of Stock

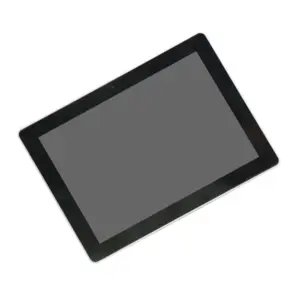

EDATEC ED-HMI2002-070C 7-inch Raspberry Pi 4 Industrial Panel PC 2GB/32GB

14,309.00
Learn More
Out of Stock

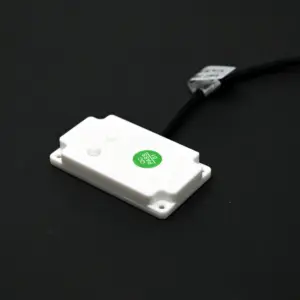

Pro-Range XKC-Y29A-NPN Non-Contact Liquid Level Sensor - DC 12-24V, NPN Output, IP67

909.00
Learn More
Out of Stock

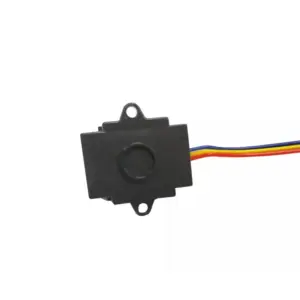

Generic 24V Capacitive Contactless Externally Liquid Level Sensor - 35cm Cable
