Adafruit MPRLS Ported Pressure Sensor Breakout - 0 to 25 PSI, Stainless Steel Port, I2C Interface

Name: Adafruit MPRLS Ported Pressure Sensor Breakout - 0 to 25 PSI, Stainless Steel Port, I2C Interface
Brand: Adafruit
SKU: SENS-2797
Price: 4719.00 INR
Availability: OutOfStock

₹4,719.00 (Inclusive of all taxes)

Out of Stock

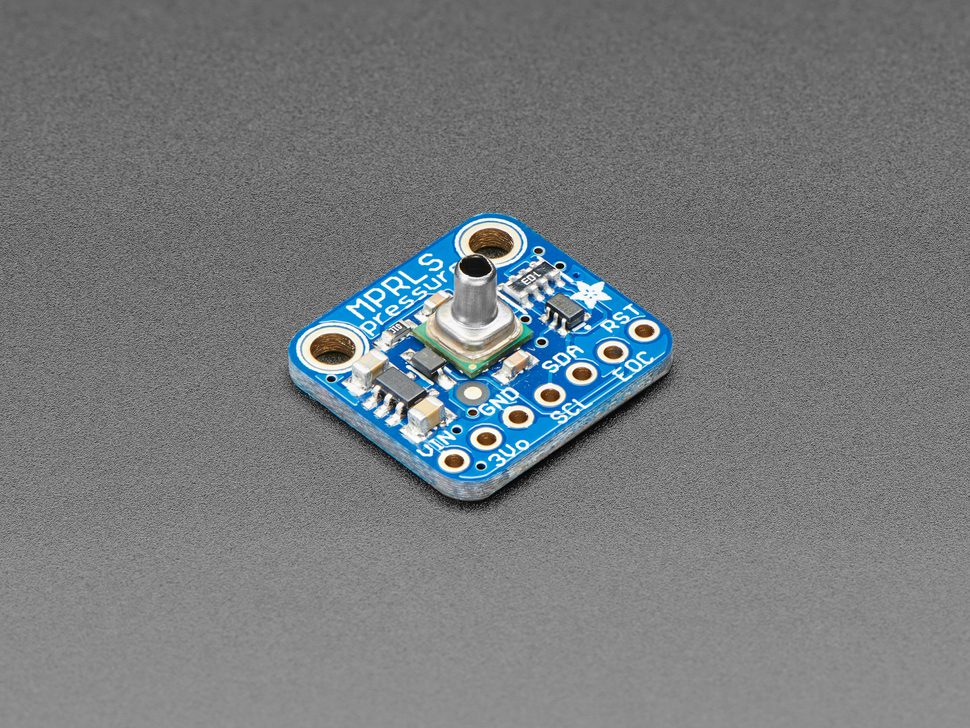

The Adafruit MPRLS breakout is a ported absolute pressure sensor with a stainless steel barb, featuring an integrated 24-bit ADC for high-resolution measurement from 0 to 25 PSI. It communicates via I2C and includes onboard 3.3V regulation, making it compatible with Arduino, Raspberry Pi, and other 3.3V/5V microcontrollers.

Features

Measures absolute pressure from 0 to 25 PSI with a pre-calibrated 24-bit ADC.
Stainless steel barbed port (2.5mm diameter) for easy tubing attachment to sealed systems.
I2C interface with a default address of 0x18 for simple microcontroller integration.
Onboard 3.3V regulator and level shifting for safe operation with 3-5V logic systems.
Compact breakout board design with libraries available for Arduino and CircuitPython.

Out of stock

Get Notified When Available

Description

The Adafruit MPRLS Ported Pressure Sensor Breakout integrates a MEMS-based, silicone-gel protected pressure sensing element with a factory-calibrated 24-bit analog-to-digital converter (ADC). This provides high-resolution, temperature-compensated absolute pressure readings, ideal for applications requiring precise monitoring of sealed or pressurized environments.

The sensor’s key differentiator is its integrated stainless steel barbed port, enabling direct connection to tubing for measuring pressure within closed systems like pneumatic controls, vacuum chambers, or assistive technology interfaces. The breakout board includes essential signal conditioning, 3.3V power regulation, and logic level shifting, ensuring robust and reliable performance across a wide range of development platforms from 5V Arduino to 3.3V Raspberry Pi and ESP32 boards.

Key Features

Integrated stainless steel barbed port for direct pneumatic tubing connection.
High-resolution 24-bit ADC provides precise, low-noise pressure measurement.
Factory calibrated and temperature compensated for stable output.
Onboard 3.3V voltage regulator and I2C level shifting for broad 3-5V system compatibility.

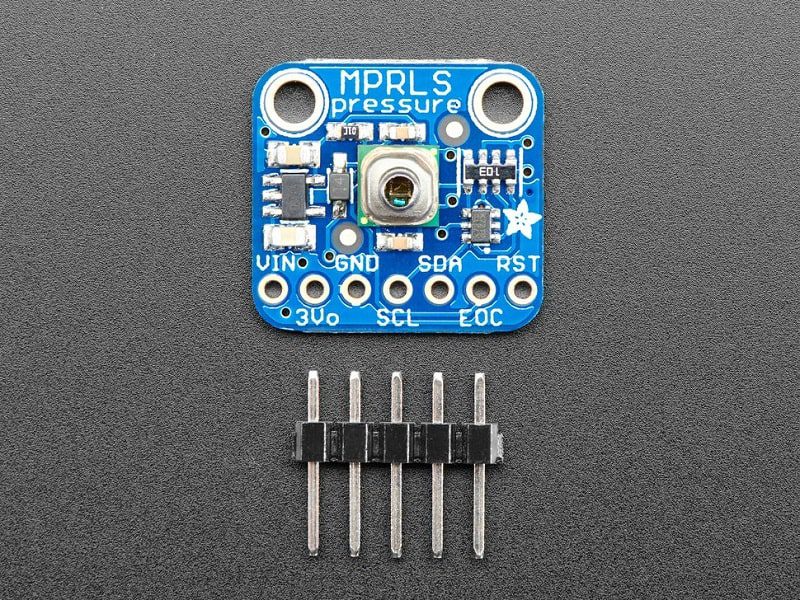

Compact and lightweight PCB breakout with standard 0.1" pin spacing.
Comprehensive open-source libraries and example code for Arduino & CircuitPython.
RoHS compliant construction for environmental safety.

Applications

DIY assistive technology "Sip & Puff" interface pressure monitoring.
Vacuum chamber or pressurized container pressure measurement.
Pneumatic system pressure monitoring and control.
Environmental monitoring systems measuring barometric pressure changes.
Prototyping portable altimeters or weather stations.

Technical Specifications

Pressure Range	0 to 25 PSI (absolute)
Output Interface	I2C (default address 0x18)
Supply Voltage	3 to 5V DC
Logic Voltage	3.3V (onboard regulator & level shifter)
ADC Resolution	24-bit
Port Material	Stainless Steel
Port Dimensions	2.5mm diameter, 3.7mm length

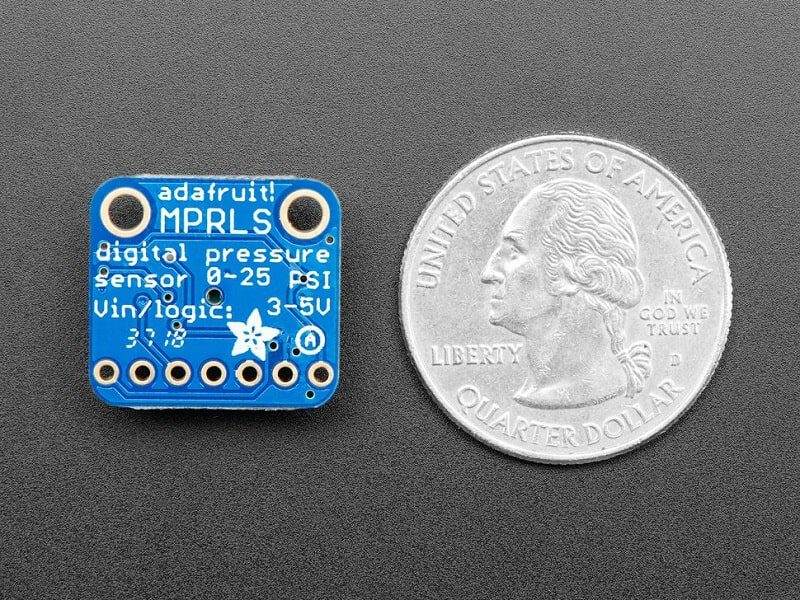

Board Dimensions (LxWxH)	17.8mm x 16.7mm x 7.5mm
Weight	1.1g (board only)

Frequently Asked Questions

What is the operating voltage range for this MPRLS breakout board?

The board can be powered with a DC supply voltage between 3V and 5V. It features an onboard 3.3V regulator that powers the sensor chip and provides logic level shifting for the I2C lines, making it safe to use with both 3.3V and 5V microcontrollers.

What is the I2C address and how do I connect it to my microcontroller?

The default I2C address is 0x18. Connect the board's VIN and GND pins to your power supply (3-5V). Then connect the SDA and SCL pins to the corresponding I2C data and clock lines on your microcontroller (e.g., Arduino, Raspberry Pi, ESP32). No pull-up resistors are required as they are included on the breakout.

Can I use this sensor to measure differential pressure or vacuum?

This sensor measures absolute pressure, referenced to a vacuum. It reads 0 PSI in a perfect vacuum and approximately 14.5 PSI at SEA level ambient pressure. It can measure positive pressure up to 25 PSI and can also read pressures below atmospheric (i.e., vacuum), down to its minimum reading of 0 PSI.

What size tubing fits the stainless steel port?

The stainless steel barbed port has an outer diameter of 2.5mm and a length of 3.7mm. It is designed to accept flexible tubing with an inner diameter of approximately 2.5mm (commonly 1/8" or 3mm ID tubing may require a tight fit or a small adapter). The package does not include tubing.
