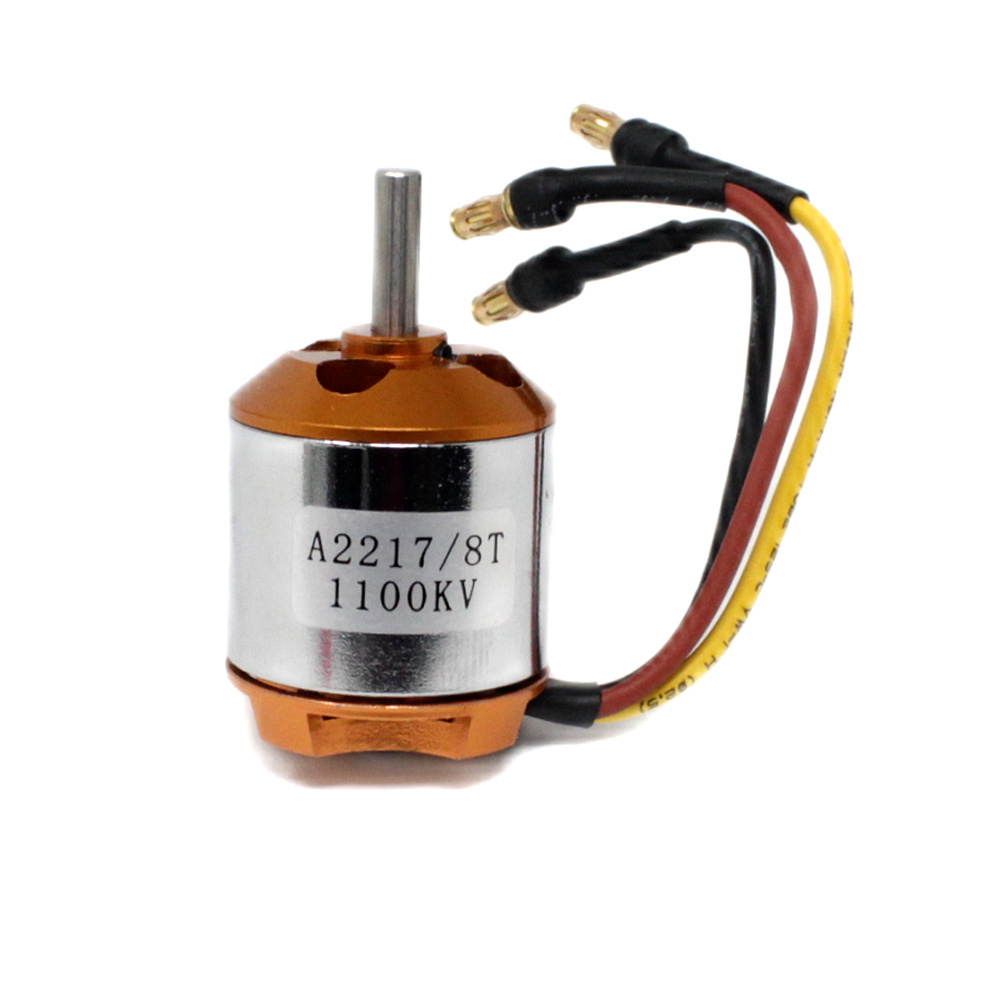

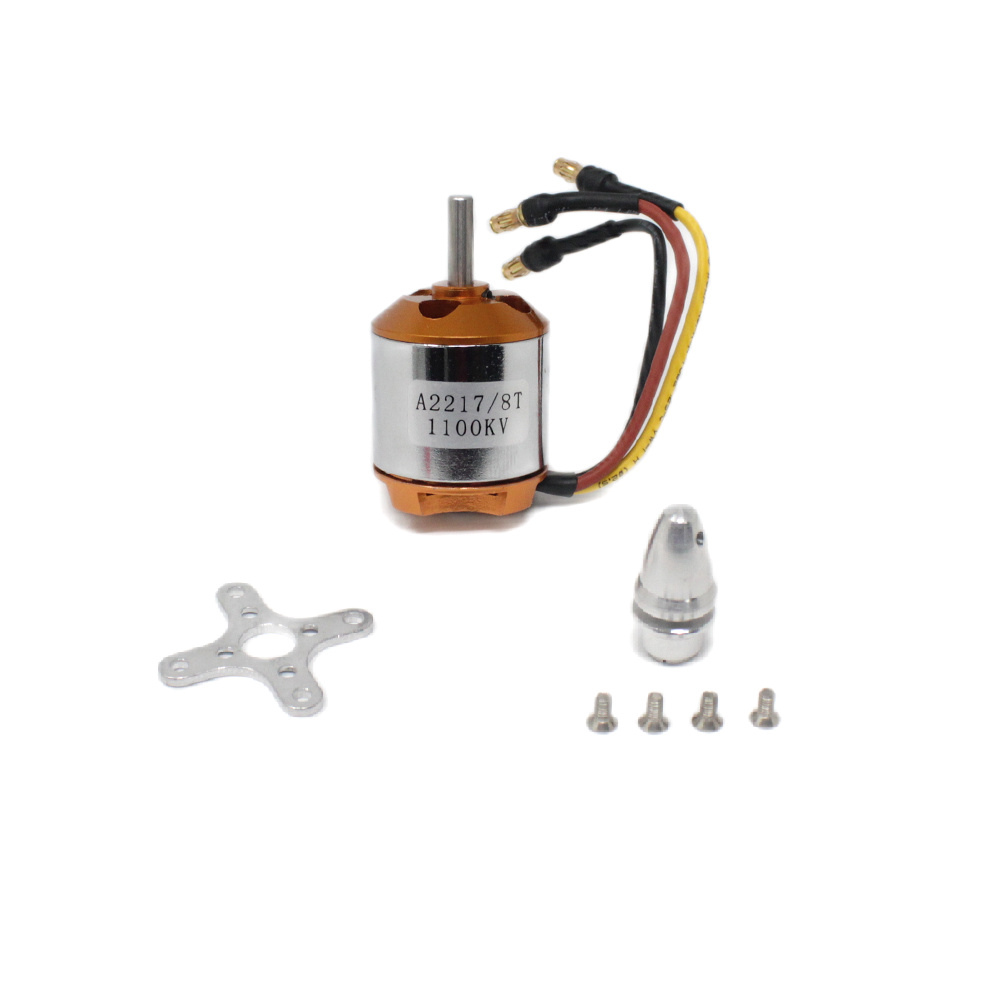

A2217 1100KV Brushless Outrunner Motor with Welded Banana Connector (Male)
The A2217 1100KV brushless outrunner motor is engineered for medium-sized multirotor platforms, delivering high thrust for long-range and endurance drone applications. It operates on 3S to 5S LiPo battery systems and features a pre-soldered 3mm male banana connector for direct, solder-free integration with compatible 70A ESCs.
Features
- 1100KV outrunner motor optimized for 3S-5S LiPo battery systems.
- Delivers up to 2150g of thrust per motor with a 12-inch propeller and 70A ESC.
- Features a pre-soldered 3mm male banana connector for solder-free ESC connection.
- 5mm hardened steel shaft and robust steel construction for durability.
- Compact 48mm diameter design with a weight of 69 grams.
Out of stock
The A2217 1100KV brushless motor is a high-torque outrunner designed for powering medium to large multirotor drones, including quadcopters and hexacopters. Its 1100KV rating provides an optimal balance of rotational speed and torque, making it ideal for efficient, long-duration flights when paired with larger propellers on 3S to 5S power systems.
Constructed with a durable steel housing and a 5mm hardened steel shaft, this motor is built to withstand the mechanical stresses of demanding flight operations. The integrated 3mm male banana connector simplifies wiring, allowing for a direct plug-and-play connection to a 70A electronic speed controller, which streamlines the build process and enhances reliability.
Additional Information
| Weight | 0.083 kg |
|---|---|
| Dimensions | 11 × 6 × 4 cm |
