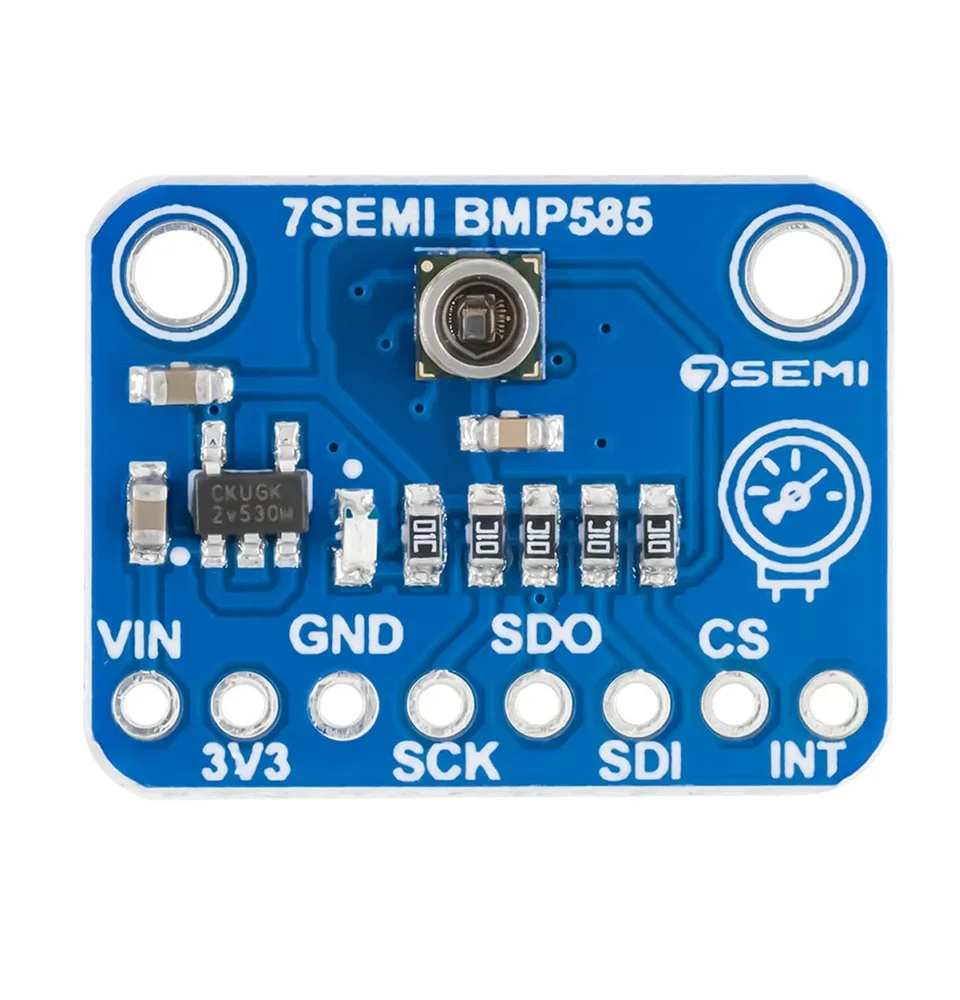

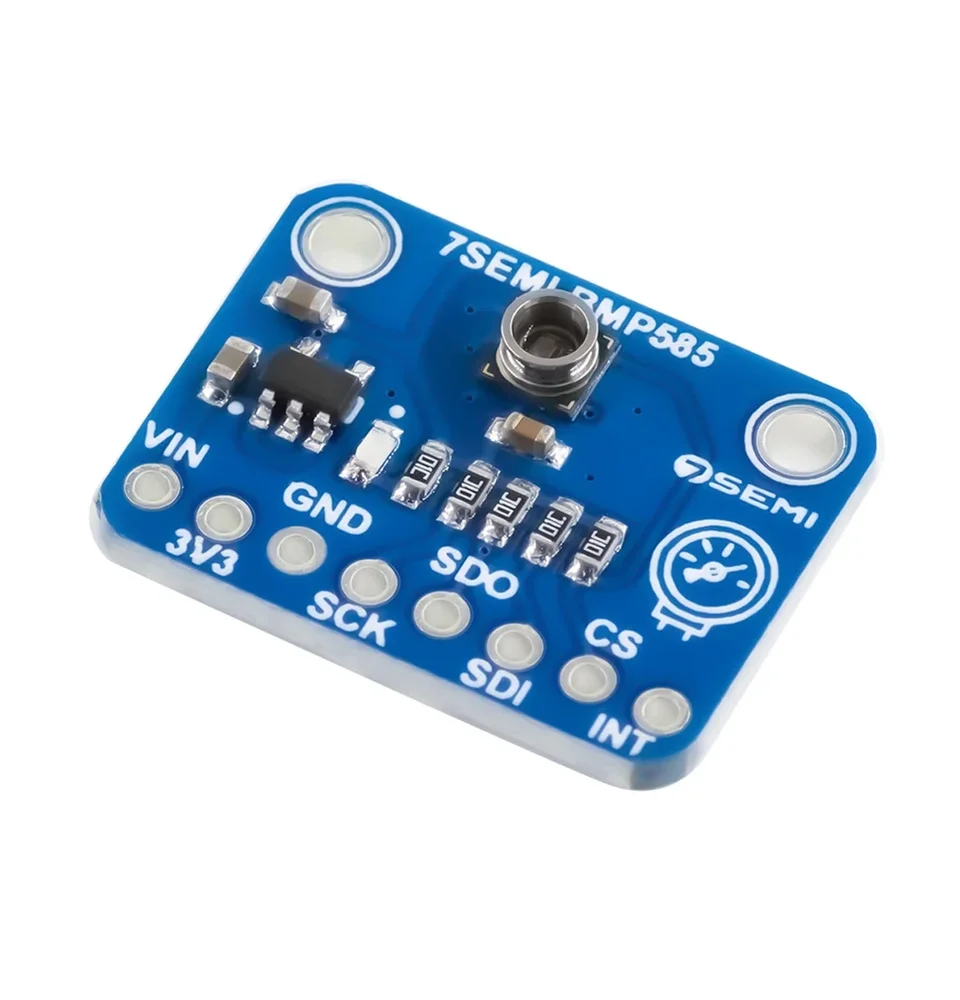

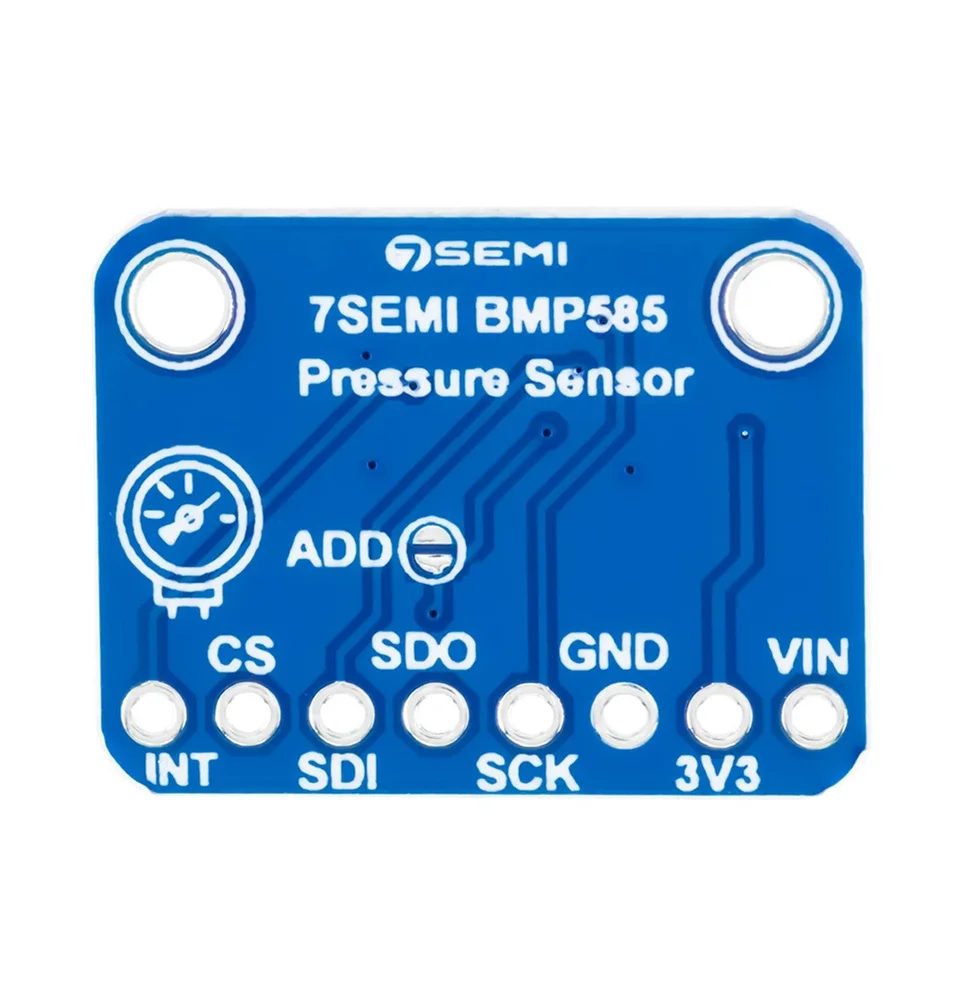

7Semi BMP585 Pressure Sensor Breakout, Range: 30 kPa ~125 kPa - I2C/SPI Interface
The 7Semi BMP585 Pressure Sensor Breakout is a high-precision MEMS barometric pressure sensor module compatible with 3.3V/5V logic systems like Arduino, Raspberry Pi, ESP32, and STM32. It provides accurate atmospheric pressure and altitude data for advanced environmental monitoring and navigation applications.
Features
- Ultra-high resolution pressure sensing with configurable oversampling up to 1/64 Pa.
- Wide absolute pressure measurement range from 30 kPa to 125 kPa.
- Dual digital interface support for I2C (up to 1 MHz) and SPI (up to 12 MHz).
- Exceptional accuracy with ±0.5 hPa absolute pressure and ±0.08 hPa relative pressure.
- Low power operation ideal for portable devices, with deep standby current of 1.5 µA.
Out of stock
The BMP585 is a state-of-the-art digital barometric pressure sensor based on a robust MEMS piezoresistive sensing element. It translates atmospheric pressure into precise digital data through integrated signal conditioning and a 24-bit ADC, offering configurable filtering and a 32-sample FIFO buffer for stable readings in dynamic environments.
Designed for reliable operation across a broad temperature range from -40°C to +85°C, this breakout board simplifies integration with a standard pin header footprint. Its low-voltage operation from 1.71V to 3.6V makes it suitable for battery-powered IoT nodes, drones, and wearable devices requiring continuous environmental sensing.
Additional Information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 6 × 6 × 3 cm |
