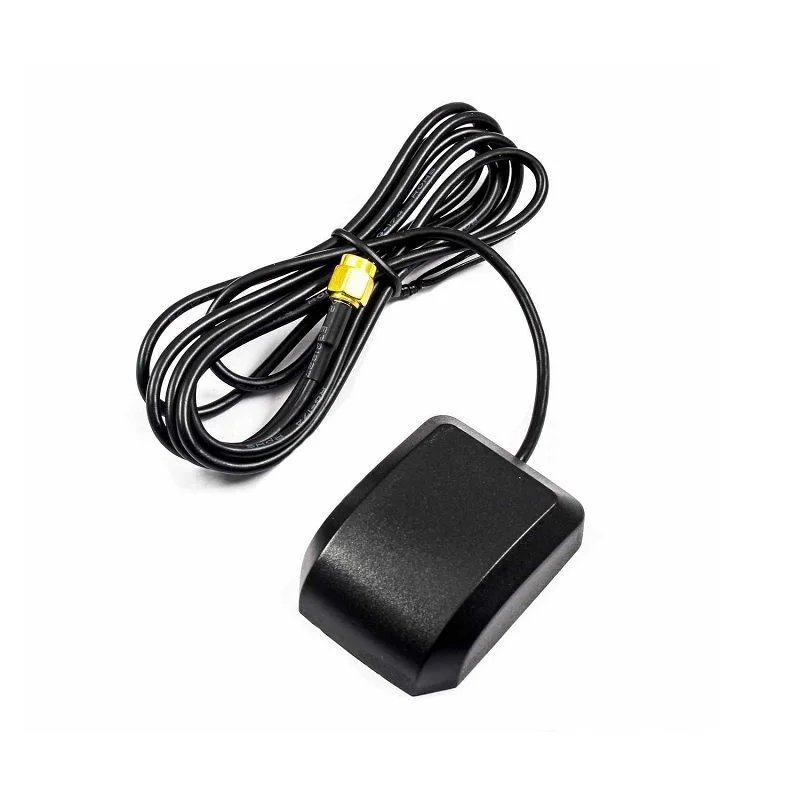

1.5M GPS Antenna SMA Male Connector 1575-1602MHz L1 Band
This 1.5-meter GPS antenna with an SMA male connector is designed for reliable L1 band (1575-1602MHz) satellite signal reception, providing enhanced positioning accuracy for GPS, GNSS, and location-tracking modules in embedded systems and IoT devices.
Features
- L1 Band GPS Reception: Tuned for the 1575-1602MHz frequency range, ensuring compatibility with standard civilian GPS and GNSS receivers for precise location data.
- SMA Male Connector: Features a standard SMA male interface for a secure, low-loss connection to GPS modules, trackers, and development boards.
- Extended 1.5M Cable: Provides flexible placement options, allowing you to position the antenna for optimal satellite line-of-sight and improved signal strength.
- Right-Hand Circular Polarization (RHCP): Matches the polarization of GPS satellite signals to maximize reception efficiency and data integrity.
- Low VSWR: Typical Voltage Standing Wave Ratio of less than 1.5:1 ensures efficient power transfer from the receiver to the antenna, minimizing signal reflection.
Out of stock
This 1.5-meter GPS antenna is engineered for robust satellite signal acquisition in the L1 band, covering the standard 1575 to 1602MHz frequency range used by global navigation satellite systems. Its right-hand circular polarization (RHCP) design is optimized to match the signal polarization broadcast by GPS satellites, significantly improving reception sensitivity and positional accuracy in challenging environments.
The antenna is terminated with a standard SMA male connector, providing a reliable, impedance-matched interface for a wide array of GPS/GNSS modules, data loggers, and tracking devices. The extended cable length offers critical flexibility for system integration, enabling the antenna to be mounted away from RF interference or metallic obstructions to achieve a clear sky view, which is essential for reliable time-to-first-fix (TTFF) and continuous tracking performance in IoT asset tracking, automotive telematics, and portable navigation applications.
Additional Information
| Weight | 0.045 kg |
|---|---|
| Dimensions | 15 × 8 × 3 cm |
