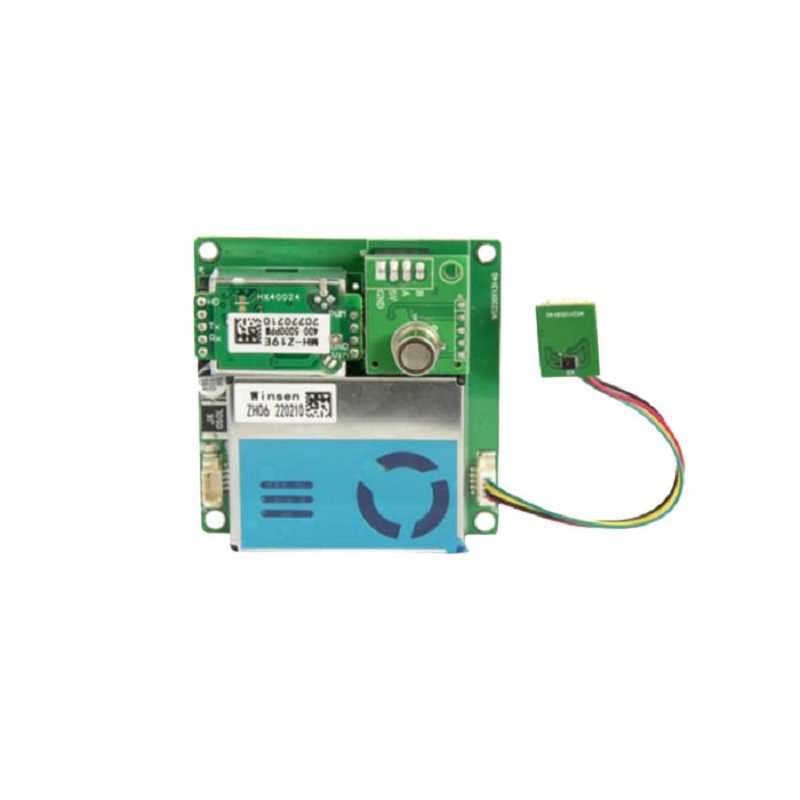

Winsen ZPHS01C Multi-in-One Air Quality Sensor Module - TTL Serial Output
The Winsen ZPHS01C is a comprehensive multi-sensor module integrating NDIR CO2, laser Particle (PM2.5), electrochemical formaldehyde (CH2O) or semiconductor VOC, and temperature/humidity sensing into a single TTL serial interface, designed for integration into air quality monitors, HVAC systems, and smart home controllers.
Features
- Integrated NDIR CO2 sensor with a measurement range of 400–5000 ppm.
- Laser Particle sensor for PM2.5 concentration measurement (0–1000 μg/m³).
- Configurable with either an electrochemical formaldehyde sensor (0–1.6 ppm) or a semiconductor VOC sensor.
- Onboard temperature and humidity sensor for comprehensive environmental monitoring.
- Simple integration via TTL serial interface (9600 baud, 8N1).
Out of stock
The ZPHS01C Multi-in-One Sensor Module from Winsen consolidates multiple critical environmental sensing technologies into a compact, single-board solution. It employs a non-dispersive infrared (NDIR) sensor for precise CO2 measurement, a laser scattering principle for particulate matter detection, and a high-sensitivity electrochemical cell for formaldehyde monitoring (or a semiconductor element for broad VOC detection, depending on the ordered variant). An integrated digital sensor provides simultaneous temperature and relative humidity readings.
All sensor data is output via a standardized TTL serial UART interface, making it directly compatible with microcontrollers (Arduino, ESP32, Raspberry Pi), industrial PLCs, and data loggers. The module is engineered for stability and real-time response, suitable for continuous monitoring applications in controlled environments.
Additional Information
| Weight | 0.052 kg |
|---|---|
| Dimensions | 6.15 × 6.1 cm |
