Generic 8P Switch Board and Cable for PMS5003 Laser Dust Sensor - Interface PCB

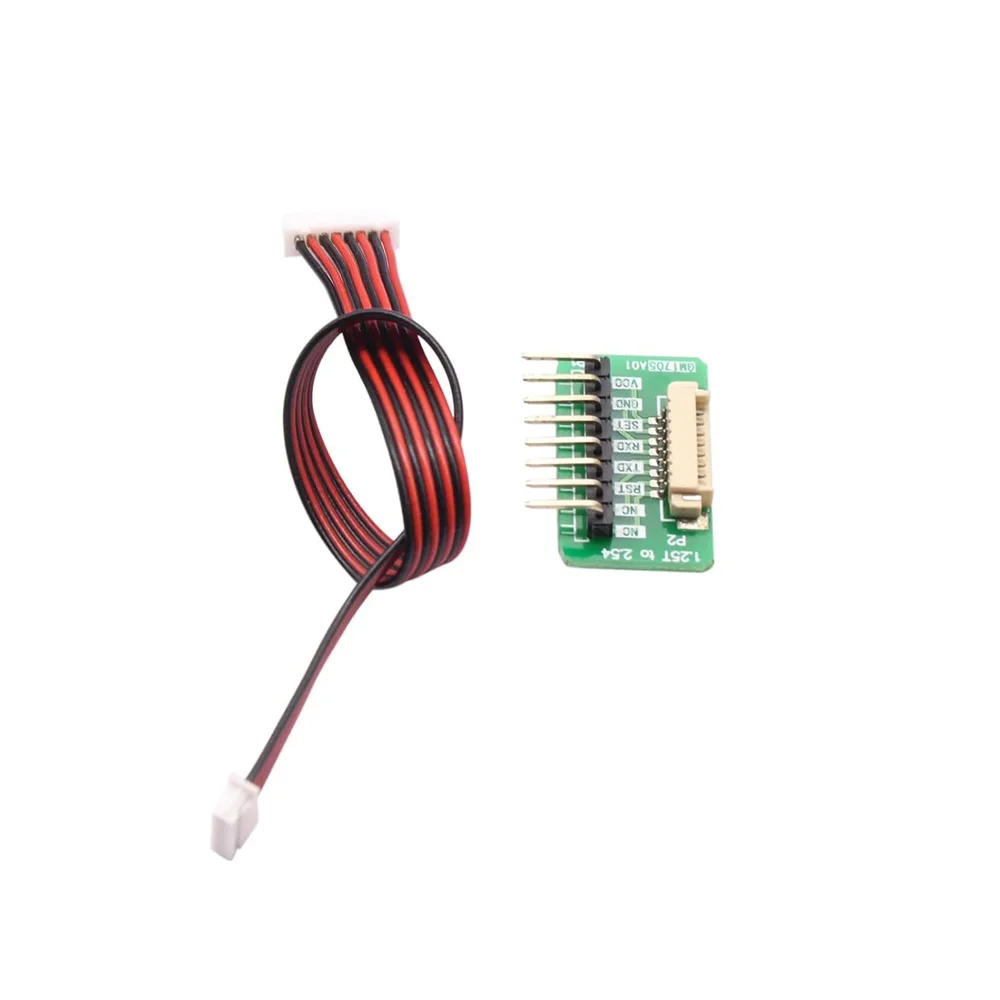

This 8-pin interface board and cable set provides a secure, plug-and-play connection for the Plantower PMS5003 laser dust sensor, simplifying integration with Arduino, Raspberry Pi, and other 3.3V/5V host controllers for air quality monitoring projects.
Features
- Dedicated 8-pin interface board for Plantower PMS5003 particulate matter sensors.

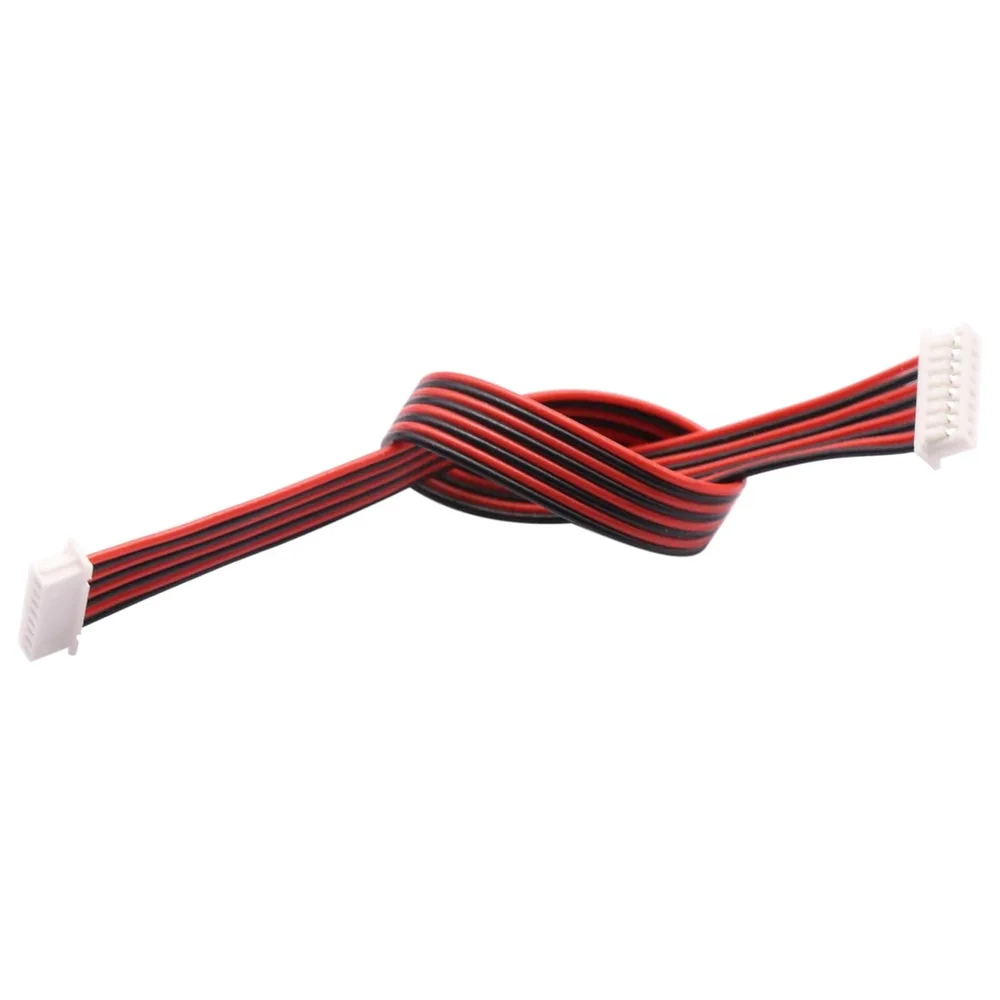

- Includes a 15cm matching cable for secure, solder-free electrical connectivity.

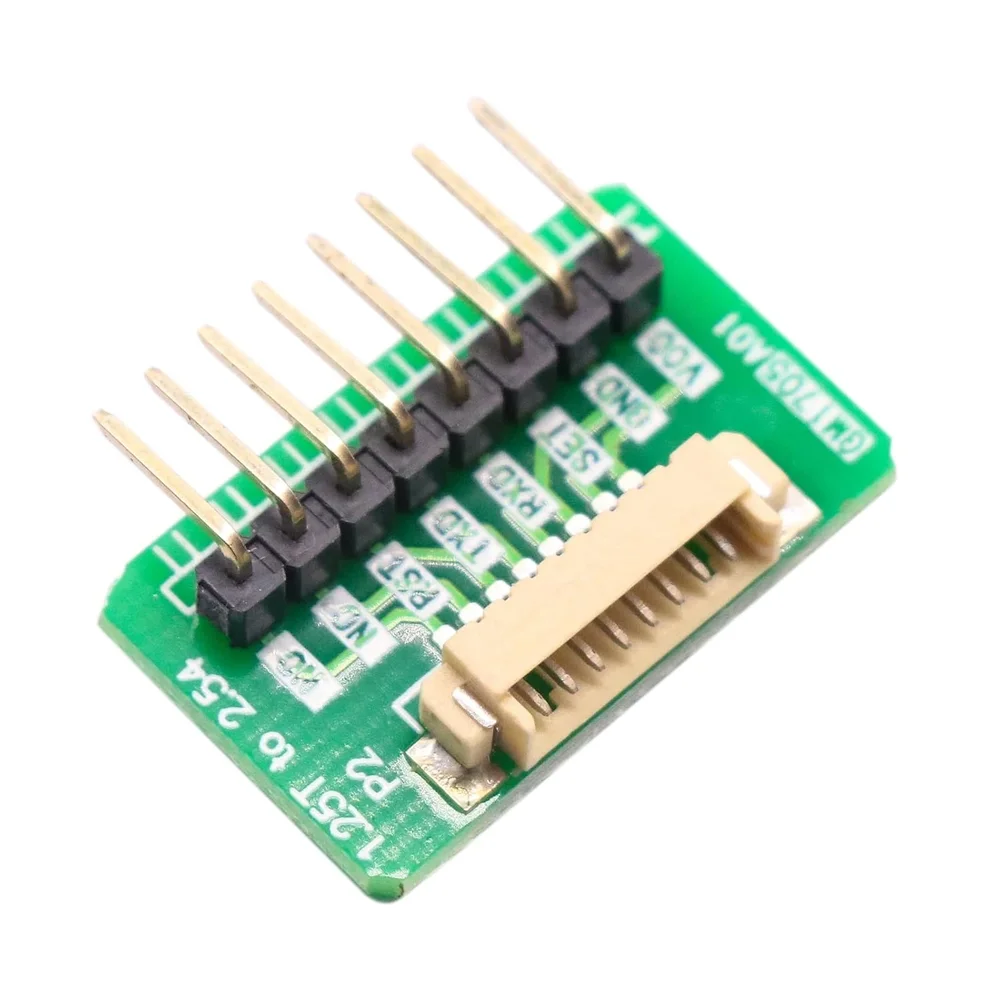

- Compact FR4 PCB design (25mm x 16mm) for embedded and portable device integration.
- Simplifies sensor installation, replacement, and prototyping in air quality systems.
- Enables reliable UART communication for IoT and environmental sensing applications.
Out of stock
The 8P Switch Board and Cable is a dedicated interface accessory engineered for the Plantower PMS5003 laser dust sensor. It provides a robust, plug-and-play connection solution that eliminates the need for direct soldering to the sensor’s delicate 8-pin connector, reducing wiring complexity and potential damage during integration.
Constructed on a standard FR4 PCB, the interface board ensures reliable electrical contact and signal integrity for the sensor’s UART serial communication protocol. This accessory is designed to facilitate quick installation and secure mounting within prototype enclosures, air quality monitors, smart home devices, and industrial equipment, streamlining the development process for particulate matter measurement systems.
Additional Information
| Weight | 0.002 kg |
|---|---|
| Dimensions | 1.6 × 2.5 cm |
