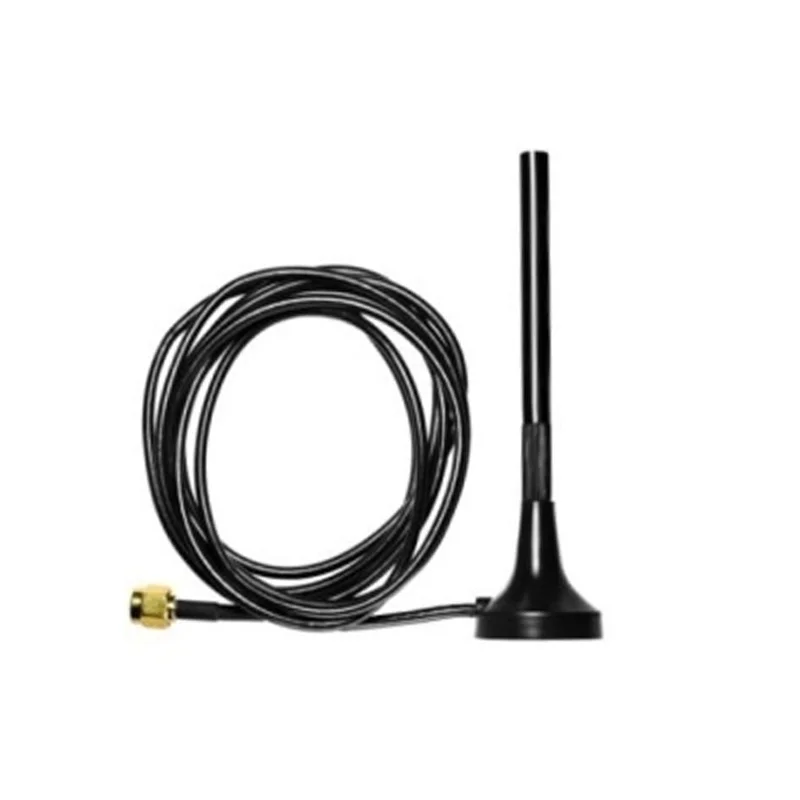

LWC-868-MM-03 868MHz 4dBi SMA Antenna Stub w/ 1m RG58 Cable
A 1-meter RG58 coaxial cable assembly terminated with an SMA plug, featuring a compact 4 dBi stub antenna optimized for the 865–868 MHz ISM band. This low-VSWR cable assembly is designed for reliable RF signal transmission in sub-1GHz wireless systems.
Features
- 868 MHz ISM Band Antenna: Precisely tuned for the 865–868 MHz frequency range, ideal for LoRa, Sigfox, and other sub-GHz IoT protocols.
- 4 dBi Gain Stub Design: Compact linear polarized antenna providing omnidirectional horizontal coverage with a 30°–40° vertical beamwidth for stable signal propagation.
- Low-Loss RG58 Cable Assembly: Includes a 1-meter length of 50-ohm RG58 coaxial cable terminated with an SMA male plug for flexible installation.
- Robust RF Performance: Features a VSWR of less than 2.0 and handles up to 10W of RF power, ensuring efficient signal transfer with minimal reflection.
- Universal Sub-GHz Connectivity: A ready-to-deploy cable solution for smart meters, RFID readers, wireless sensor nodes, and industrial telemetry systems.
Out of stock
The LWC-868-MM-03 is a complete RF antenna cable assembly engineered for sub-1GHz wireless communication systems. It integrates a compact, 4 dBi gain stub antenna directly onto a 1-meter RG58 coaxial cable, providing a streamlined solution for connecting 868 MHz transceivers to an external radiating element. The assembly is characterized by its 50-ohm impedance matching, ensuring minimal signal loss and reflection with a VSWR under 2.0 across the target band.
Constructed for durability and consistent performance, the antenna’s linear polarization and omnidirectional horizontal pattern make it suitable for a wide range of fixed and mobile IoT deployments. The included SMA male connector offers a standard, secure interface for modules and gateways, simplifying integration into prototypes and final products requiring reliable RF links in the European 868 MHz ISM band.
Additional Information
| Weight | 0.075 kg |
|---|---|
| Dimensions | 3 × 12 × 2 cm |
