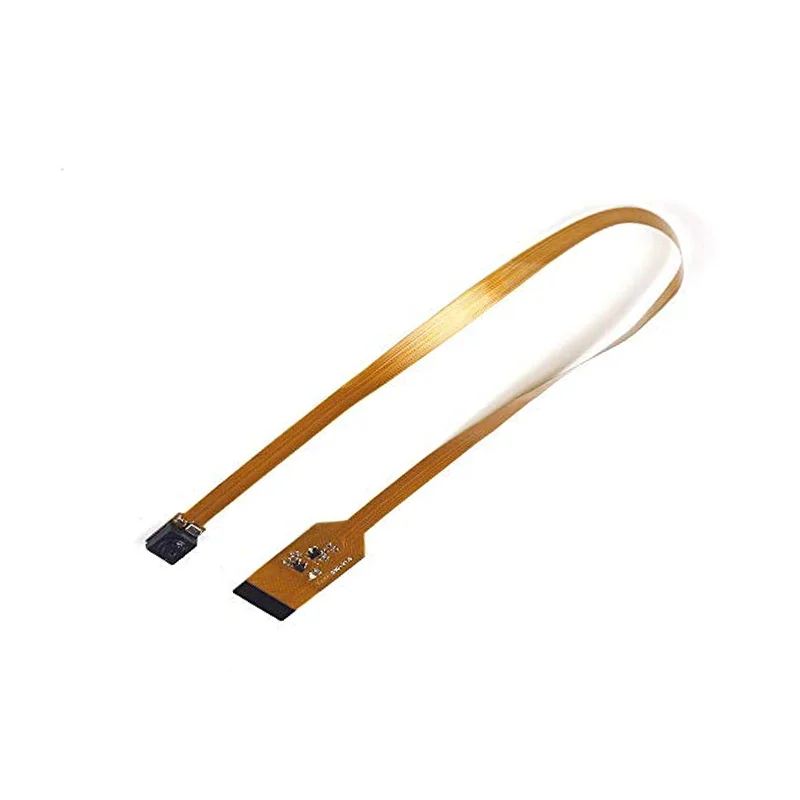

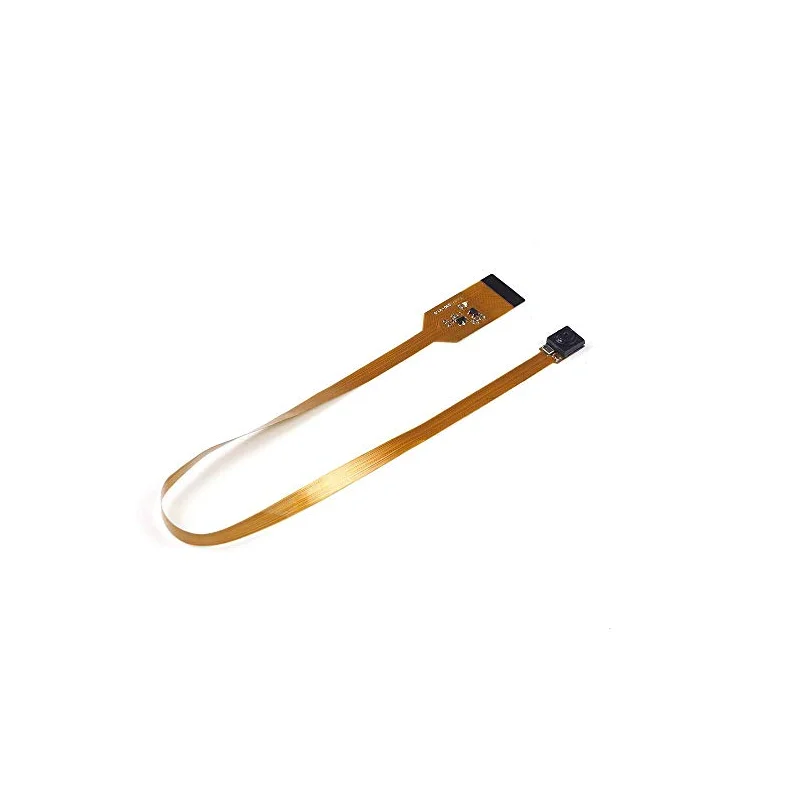

Arducam 5MP OV5647 NoIR Camera Module for Raspberry Pi
The Arducam 5MP OV5647 NoIR Camera Module is a native Raspberry Pi-compatible sensor with a 1080p video stream, designed for IR-sensitive applications like night vision and computer vision projects using Python and raspi cam commands.
Features
- 5MP OV5647 sensor delivers 2592×1944 stills and 1080p video at 30fps for high-quality imaging.
- NoIR filter enables infrared sensitivity, making it ideal for night vision with external IR LED illumination.

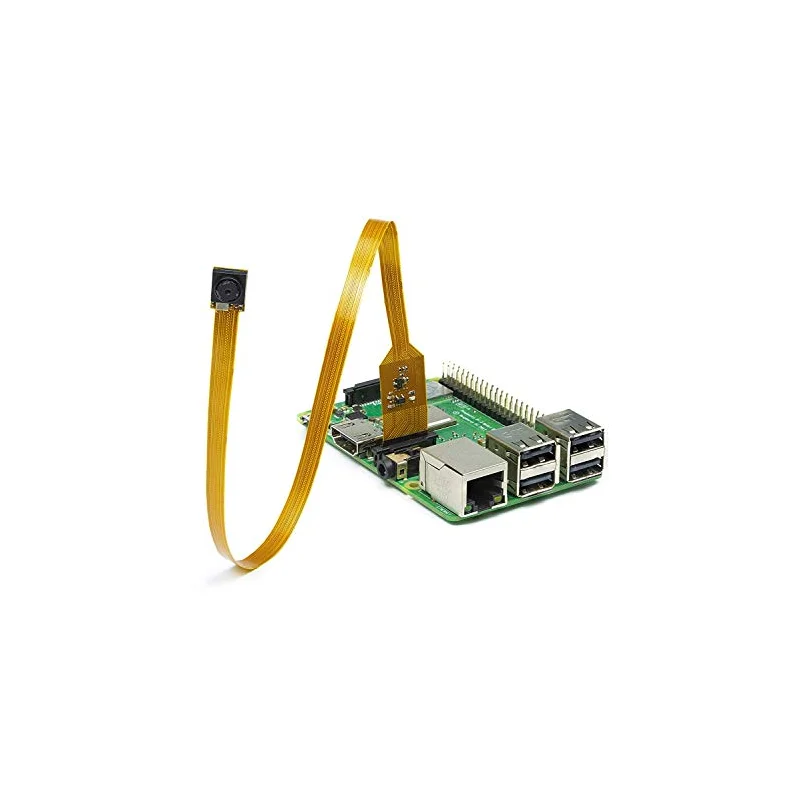

- Native compatibility with all official Raspberry Pi boards via the 15-pin MIPI CSI interface.
- Compact 25mm x 24mm board size with a 54°×41° field of view for versatile integration.
- Works seamlessly with standard Raspberry Pi Camera Module software, Python scripts, and raspi cam commands.
Out of stock
The Arducam 5MP OV5647 NoIR Camera Module is engineered for developers and makers requiring infrared-sensitive vision capabilities on the Raspberry Pi platform. Based on the OmniVision OV5647 sensor, it provides a maximum still resolution of 2592×1944 pixels and supports 1080p video streaming at 30 frames per second, with a fixed-focus lens offering a 54°×41° field of view.
Its key differentiator is the removal of the infrared (IR) cut filter, which makes the sensor sensitive to infrared light. This allows the module to function as an effective night vision camera when paired with external IR illuminators, opening use cases in security, wildlife monitoring, and low-light computer vision. The module connects directly to Raspberry Pi boards via a standard 15-pin MIPI CSI-2 connector and is fully compatible with the Raspberry Pi’s native camera software stack, including the `raspistill` and `raspivid` commands, as well as Python libraries like Picamera2.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 6 × 5 × 3 cm |
