Seeed Studio Studio SenseCAP BC03 Indoor Bluetooth Beacon (iBeacon)
Seeed Studio Studio SenseCAP BC03 Indoor Bluetooth Beacon (iBeacon) - Image 2
Seeed Studio Studio SenseCAP BC03 Indoor Bluetooth Beacon (iBeacon) - Image 3
Seeed Studio Studio SenseCAP BC03 Indoor Bluetooth Beacon (iBeacon) - Image 4
SKU: IOWC-0061
📋 GST Invoice Available

Seeed Studio Studio SenseCAP BC03 Indoor Bluetooth Beacon (iBeacon)

₹1,719.00 (Inclusive of all taxes)
Out of Stock

The Seeed Studio Studio SenseCAP BC03 is an ultra-low-power BLE 5.0 iBeacon designed for scalable indoor positioning and asset tracking, featuring a long-life Li/SOCl2 battery and configurable broadcast parameters for integration with smartphones and BLE gateways.

Features

  • Nordic Semiconductor nRF52 series BLE 5.0 chipset ensures reliable, long-range iBeacon signal broadcasting for indoor location services.
  • Ultra-low power design with a 2400 mAh Li/SOCl2 battery provides over 5 years of maintenance-free operation at default settings.
  • Configurable transmit power (-40 dBm to +4 dBm) and advertising interval (20 ms to 30 s) allow for optimization of range and battery life.
  • Rugged, UV-resistant ABS housing with peel-and-stick backing enables quick, durable deployment in commercial and industrial environments.
  • Wide compatibility with iOS 7.0+ and Android 4.3+ devices ensures seamless integration into existing tracking and monitoring systems.

Out of stock

Description

The SenseCAP BC03 Indoor Bluetooth Beacon is a purpose-built BLE 5.0 device engineered for precise, scalable indoor positioning. It continuously broadcasts standardized iBeacon packets, enabling smartphones, tablets, and dedicated BLE receivers to perform RSSI-based proximity estimation and asset tracking where GPS signals are unavailable. Its core architecture leverages the proven Nordic Semiconductor nRF52 series SoC, balancing robust RF performance with exceptional power efficiency.

Designed for large-scale deployments, the beacon features a rugged, UV-stabilized ABS enclosure and is powered by a long-life, user-replaceable Lithium Thionyl Chloride (Li/SOCl2) battery. System integrators can fine-tune its operational profile—including transmit power and advertising interval—via configuration tools to optimize the trade-off between signal coverage and battery longevity, which exceeds five years under typical use. This makes it an ideal, low-maintenance solution for creating dense positioning networks in warehouses, hospitals, offices, and smart retail spaces.

Key Features

  • BLE 5.0 iBeacon transmitter with backward compatibility for BLE 4.1+ devices, ensuring broad ecosystem support.
  • Ultra-low power consumption enabled by the Nordic Semiconductor nRF52 chipset and configurable duty cycles for extended battery life.
  • Flexible RF configuration allows adjustment of transmission power and advertising rate to suit specific deployment density and range requirements.
  • Durable, UV-resistant ABS housing protects the electronics and is suitable for long-term indoor installation.
  • Optional accelerometer support (model-dependent) enables motion-activated advertising or vibration sensing for advanced use cases.
  • Simple peel-and-stick adhesive backing facilitates rapid, non-invasive installation on walls, assets, or equipment.
  • Pre-configured with a measured power value of -59 dBm at 1 meter for accurate distance calibration in RSSI algorithms.

Applications

  • Indoor asset tracking and management in warehouses, factories, and logistics centers.
  • Proximity marketing and customer analytics in retail stores and shopping malls.
  • Wayfinding and personnel tracking in hospitals, offices, and conference venues.
  • Smart building automation for room occupancy detection and environmental control.
  • Educational tools for location-based services and IoT projects in schools.

Technical Specifications

Bluetooth ChipsetNordic Semiconductor nRF52 series
Wireless ProtocolBluetooth Low Energy (BLE) 5.0, iBeacon
Frequency Range2.4 GHz ISM Band
RF Transmit Power-40 dBm to +4 dBm (default 0 dBm)
Measured Power (@1m)-59 dBm
Advertising Interval20 ms to 30 seconds (default 500 ms)
Supply VoltageLi/SOCl2 Battery
Battery Capacity2400 mAh
Estimated Battery Life>5 years (at default 0 dBm, 500 ms interval)
InterfacesBLE Advertising
Indicator1x Blue LED
Enclosure MaterialUV-Resistant ABS
Operating TemperatureNot Specified (Indoor Use)
Dimensions (Ø x H)50 mm x 20.5 mm
Weight~45 g (with battery)

Frequently Asked Questions

How do I configure the advertising interval and transmit power of the SenseCAP BC03 Beacon?

The BC03 beacon is configured using dedicated mobile apps or PC tools provided by Seeed Studio Studio. You connect to the beacon via BLE and use the configuration interface to set parameters like advertising interval (20ms to 30s) and transmit power (-40dBm to +4dBm). Changes are saved to non-volatile memory. The default settings are 500ms interval and 0dBm power for a balance of detection frequency and battery life.

What is the expected battery life, and how is the battery replaced?

Using the included 2400mAh Li/SOCl2 battery at the default settings (0dBm Tx power, 500ms advertising interval), the BC03 is rated for over 5 years of continuous operation. To replace the battery, carefully open the ABS housing, remove the depleted cell, and insert a new CR-sized Li/SOCl2 battery of equivalent specification, observing correct polarity. Ensure the housing is resealed properly to maintain its indoor environmental protection.

Can this beacon be used for motion detection or trigger events based on movement?

Certain variants of the SenseCAP BC03 support an optional integrated accelerometer. If your model includes this sensor, it can be configured to enable motion-triggered advertising. In this mode, the beacon can enter a deep sleep and only wake to broadcast when movement is detected, significantly extending battery life in static asset scenarios. Check your specific model's documentation or feature list for accelerometer support.

What mobile devices and operating systems are compatible with the BC03's iBeacon signals?

The BC03 broadcasts standard iBeacon packets, making it widely compatible. It works with iOS devices running iOS 7.0 or later (iPhone 4S and newer, iPad series) and Android devices running Android 4.3 (Jelly Bean MR2) or later, including major brands like Samsung, Xiaomi, and Huawei. You will need a dedicated tracking app or SDK on the receiving device to interpret the RSSI and UUID for proximity calculations.

Package Includes

  • 1 x Seeed Studio Studio SenseCAP BC03 Indoor Bluetooth Beacon
  • 1 x 3M Sticker (Pre-taped)
  • 2 x Insulating Film

Related Products

Out of Stock

Seeed Studio Studio Base Shield V2 for Arduino Prototyping

459.00
Learn More
Out of Stock

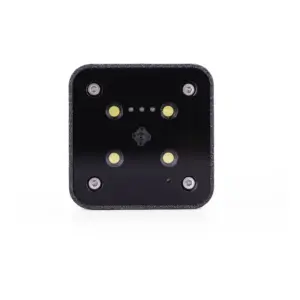

Seeed Studio Studio reCamera 2002w 8GB RISC-V AI Vision Camera
